FIPO10 V.1 – Fic S.p.a. Via Trivulzia 54, 23020 Mese (SO) 7
Thermoregulator
1. Properties
FIPO-10 is a microcomputer of the last generation equipped with a ROM memory. This means that data can be stored
with no need of external units. It is able to drive and control one compressor and two pumps (if provided) in accordance
with a weekly program to be set by the Customer.
On the front panel, besides the well marked controls for each operation, is placed a high density display that shows the
various parameters under examination; a range of diods will indicate, progressively, the operations that are being
executed.
The controller is able to show eventual anomalies in the appliance. It is also provided with an extra socket to which the
final user can easily connect an acustic and/or bright alarm.
What forecomes has been arranged with the aim of ensuring the User the LARGER SECURITY with the HIGHER
SEMPLICITY of use.
It is worth reminding that FIPO-10 encloses all the necessary functions to operate the direct expansion water cooler and
2. Control panel

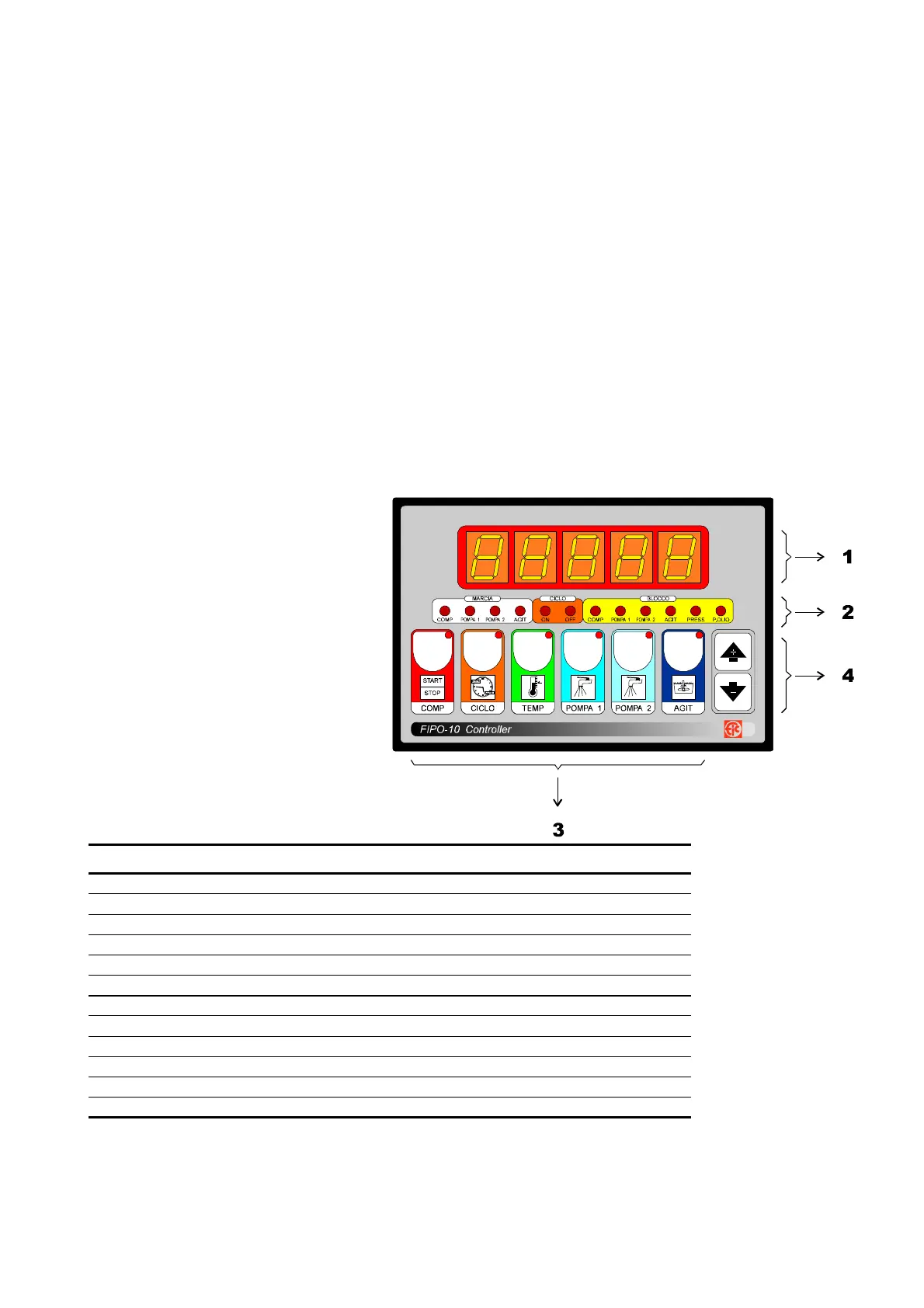

The front panel is made out of:
1 - a display with five high density figures
that shows both the parameters and
the variables to be programmed;
2 - diods that indicate the operations:
- white sector for on (marcia);
- red sector for cycle (ciclo);
- yellow sector for alarm (blocco);
3 - starting buttons.
3. Indications
Led Operation Contacts Relay
COMP Compressor On 3 - 4 1
POMPA 1 Pump 1 ON 5 - 6 2
POMPA 2 Pump 2 ON 7 - 8 3
AGIT Agitators ON 9 - 10 4
CICLO ON Time cycle ON
CICLO OFF Time cycle OFF
BL. COMP Compressor halt
BL. POMPA 1 Pump 1 halt
BL. POMPA 2 Pump 2 halt
BL. AGIT Agitators halt
PRESS Gas pressure halt
P. OLIO Oil pressure halt
