FIC FIPO 10 - Display Messages; Temperature; Compressor; Agitators

8
Diods of buttons PUMPA 1 and PUMPA 2 flash on closure of external consent.
4. Display messages
- ALL.tE flashes for temperature alarm intervention.
- -oFF- for intervention of OFF mode (daily period).
- StOP when compressor is off.

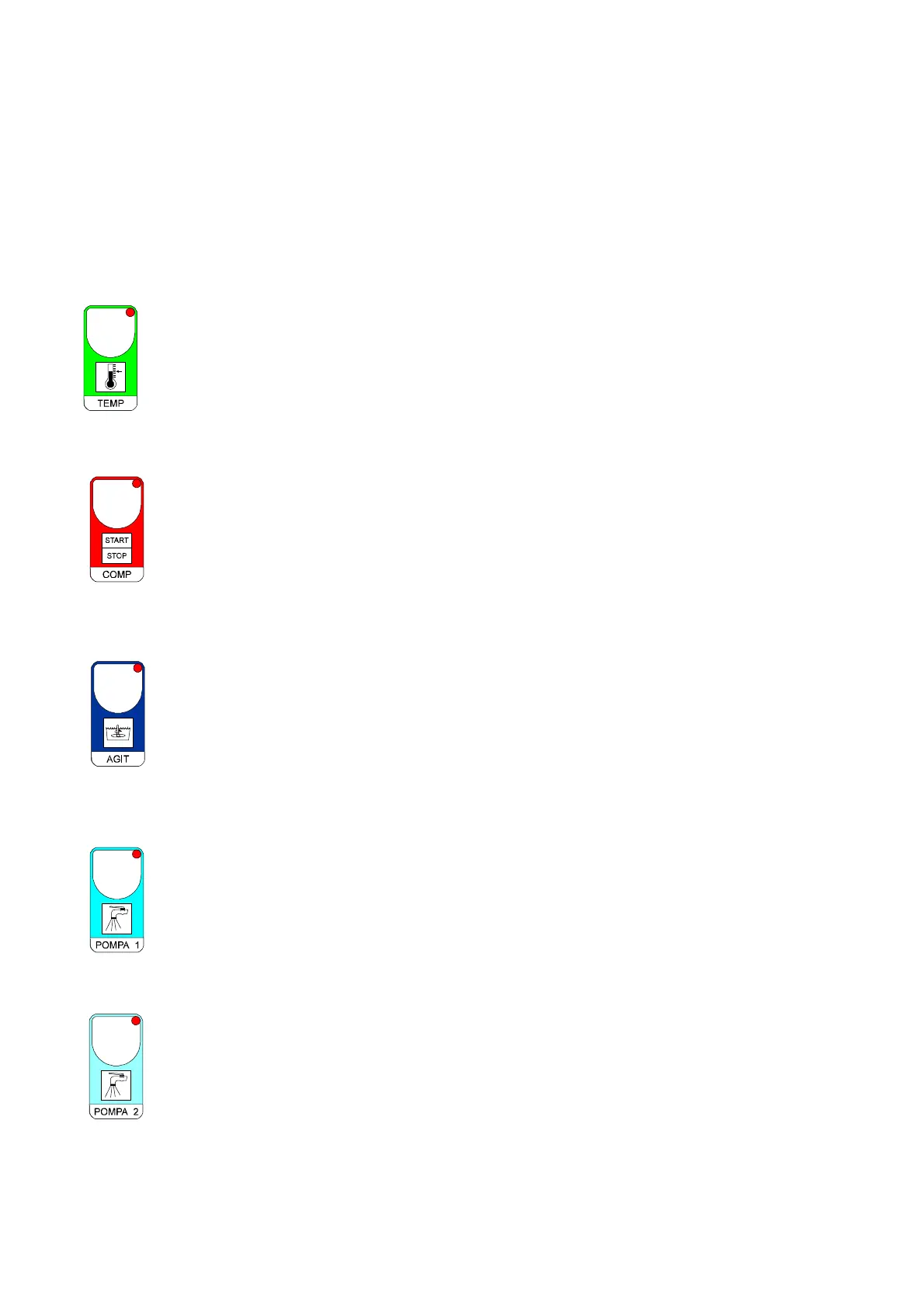

4.1. Temperature
Pushing TEMP (the diod of the button flashes) the message t.SET is shown alternate to the set temperature value;
operating on the buttons + and - the working temperature desired can be modified.
Push TEMP to confirm the value.
4.2. Compressor
Press COMP to start the compressor if it is off (button diod on).
The display will show the temperature read by the sensor. The compressor starts if the temperature value is
higher than the one set with TEMP.
The appliance will not start anyway if the Cycle Program is OFF (CICLO OFF diod flashing, see CICLO
button).
Press COMP to stop the compressor if the appliance is on (button diod flashing).
The display will show message StOP.
When the compressor is on also the agitators are on. Compressor off mode will turn off also the agitators.
4.3. Agitators
Press AGIT to insert agitators.
Diod AGIT shows when agitators are on.
Agitators will stop at the first compressor stop and will start again with the compressor.
Agitators run when one of the pumps is on.
4.4. Pump 1
Press POMPA 1 to insert pump 1.
Diod POMPA 1 shows when the pump is on.
The pump insertion starts also the agitators. They will follow the compressor operation after its first start.
Pumps mode during CICLO OFF phase (timed program) and at the reinsertion (CICLO ON) is the one
programmed in COSt with function P.on.
PUMP 1 can be activated also with an external contact (see connection diagram).
With these conditions the button diod POMPA 1 flashes.
The external contact has priority in case of conflict (button POMPA to switch off - external contact switch on).
4.5. Pump 2
Press POMPA 2 to insert pump 2.
Diod POMPA 2 shows when the pump is on.
The pump insertion starts also the agitators. They will follow the compressor operation after its first start.
Pumps mode during CICLO OFF phase (timed program) and at the reinsertion (CICLO ON) is the one
programmed in COSt with function P.on.
PUMP 1 can be activated also with an external contact (see connection diagram).
With these conditions the button diod POMPA 1 flashes.
The external contact has priority in case of conflict (button PUMP to switch off - external contact switch on).
