FIC FIPO 10 - Running Charts; Trouble Shooting Guide

FIPO10 V.1 – Fic S.p.a. Via Trivulzia 54, 23020 Mese (SO) 11
Messaggio Column A Column B
t.SEt +2,0 °C
diF.1 1.0 °C
rEL.A 2.0° C
t.ALL 0’
rEL.2 0.0 °C
diF.2 1.0 °C
t.Con 10”
t.On 0’
t.OF 0’
rit.C 10”
P.on =1
Ad.tE 0.0°
CICLO SI
-on- -oFF- -on- -oFF-
dAY 1 8.00 18.00
dAY 2
dAY 3
dAY 4
dAY 5
dAY 6
dAY 7

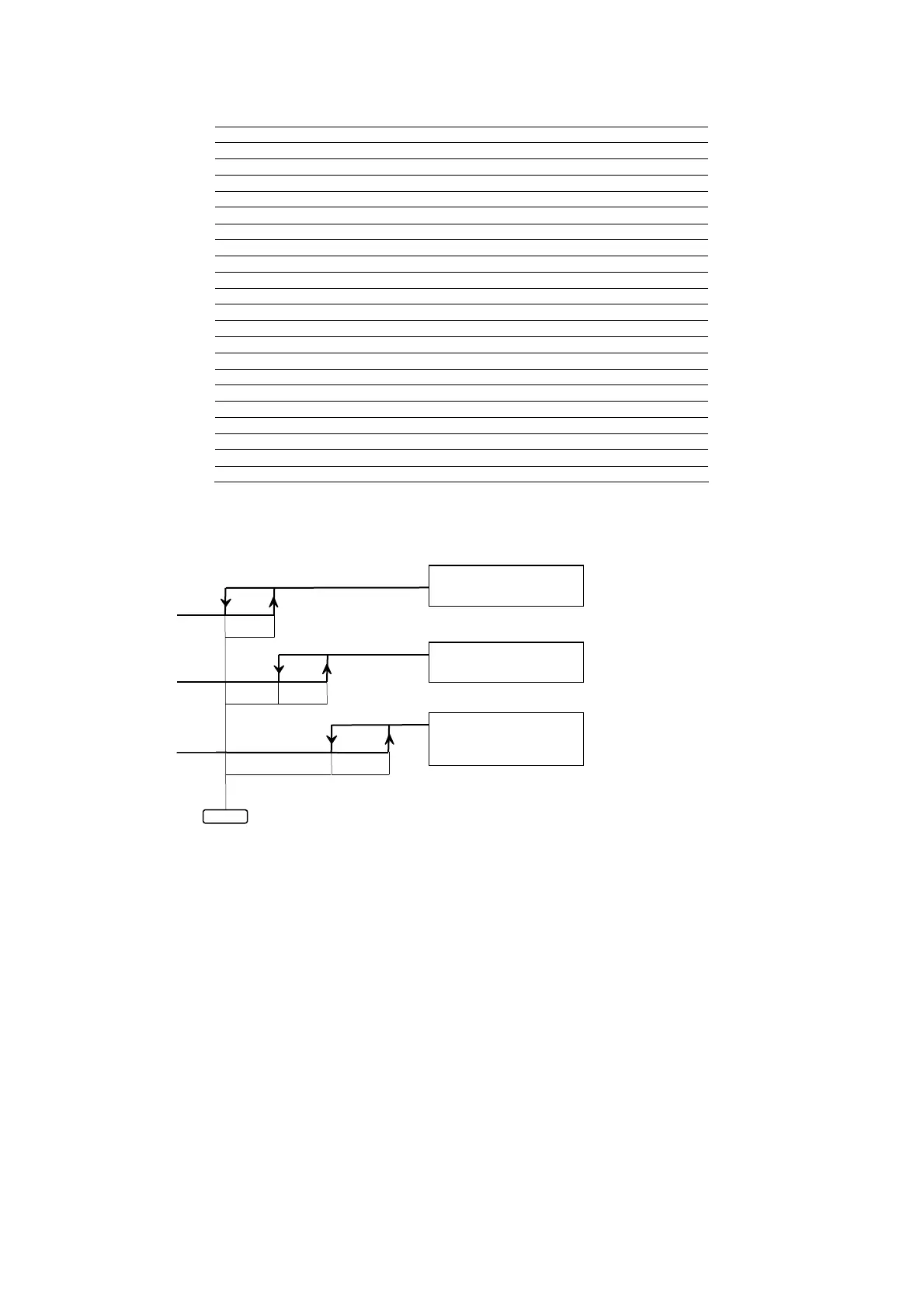

7. Running charts
- Agitators start and stop together with compressor if this is on.
- Timed agitators cycle (see COSt t.on, t.oF) starts at compressor stop.
- POMPA 1 and POMPA 2 switch on causes also agitators start. Agitators switch off at first compressor stop.
8. Trouble shooting guide
It is useful to simulate the different working phases to make the general test and the troubles detection in the appliance
easy.
To do that, follow the here listed instructions:
- press together + / - and TEMP for more than one second, the display will show HAnd;
- act on the button + until the display shows the number of the relay to be handled (see state diods
tables), then press AGIT to insert the relay.
When you act on + again to shift to another number of relay, the relay previously inserted will disconnect
itself. To exit from the manual condition push AGIT for at least one second; the processor will come back to the
standard run mode.
If the circuit of the temperature bulb opens, the display will show the message -O.C.-.
In case of short circuit the message will be -S.C.-.
ALLARME
ON
TEMPERATURE ALLARM :
Active after t.ALL time from
compressor start.
Excluded with t.ALL = 0
0.2°
OFF
TEMPERATURE
ALLARM
rEL.A
rEL.2
COMP 2
COMPRESSOR 1
Only in START COMP phase.
Ruled by t.Con (see COSt)
diF.2
OFF
COMPRESSOR 2
ON
diF.1
COMP 1
COMPRESSOR 1
Only in START COMP phase.
Ruled by rit.C (see COSt)
OFF
COMPRESSOR 1
ON
t.SEt
