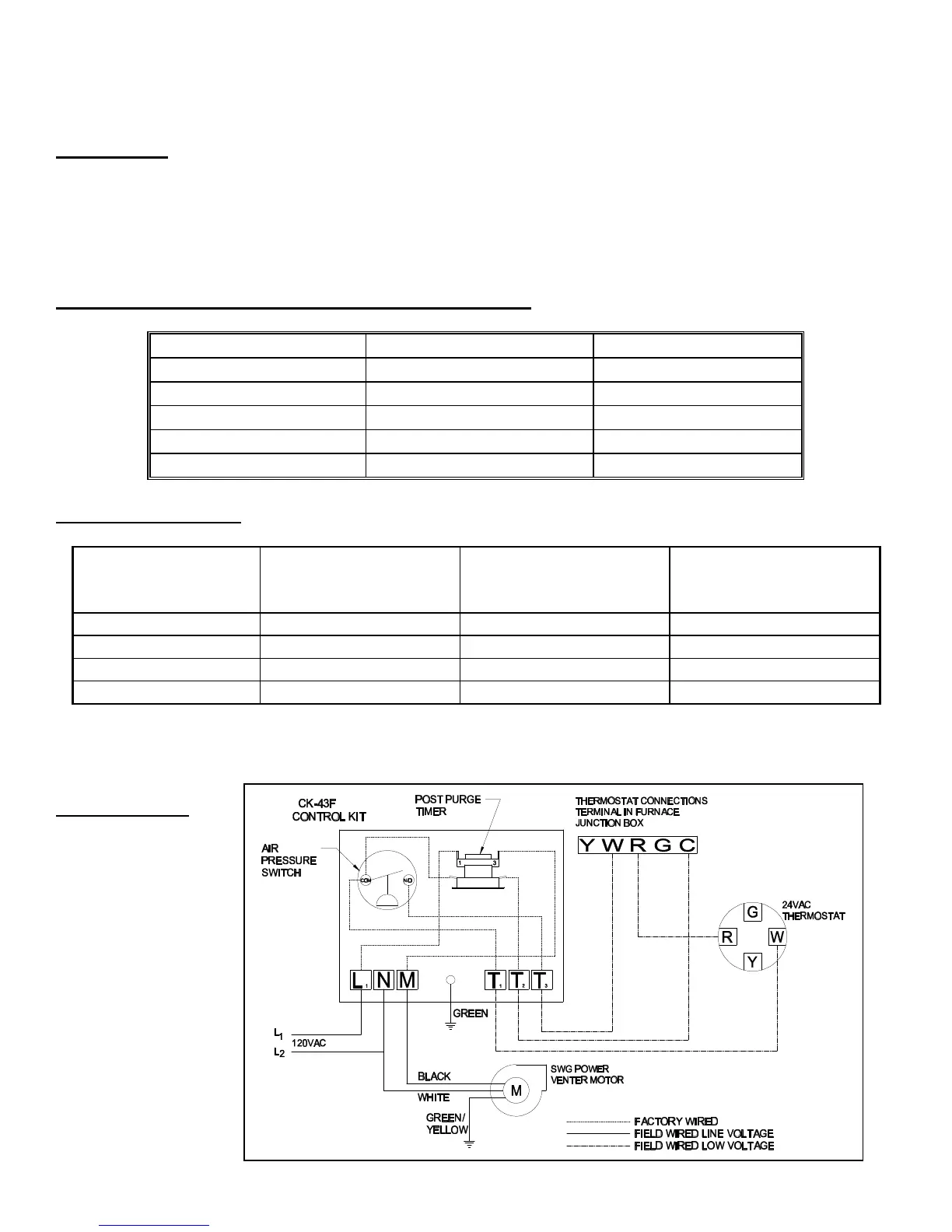

SWG-4B BARD SIDEWALL POWER VENTING KIT
Field Controls P/N 46205410
Kit Includes:
SWGII-4HD Sidewall Power Venter
CK-43F Control Kit
Includes: 4" MG-1 Barometric Draft Control
Fan Proving Switch
Fixed post purge
For Use With The Following Bard Standard Furnaces:
Upflow Downflow Lowboy
IH60D36 (A,B) IC60D36A ------
IH85D48 (A,B,D) IC85D42 (A,D) IL85D42 (A,D)
IH115D48 (A,B) IC115D48A IL115D48A
IH115D60A ------ ------
IH145D60A ------ IL145D60A
Unit Selection Table:
Furnace Input
Btu/Hr
Diameter Of Vent
Pipe Collar On
Furnace (In.)
Installer Provided Flue
Pipe Transition Size*
Maximum Equivalent
Vent Length (Ft.)
4” Vent Pipe
58,000 3” 3”-4” 65
86,000 4” ** 3”-4” *** 65
115,000 4” None Required 65
145,000 4” None Required 65
* Transition should be attached to the furnace vent pipe collar if required.
** 86,000 Btu models with A or B suffix letter have 3” collars.
*** 86,000 Btu models with D suffix have 4” collars and do not require a 3” to 4” transition.
General Wiring
For complete
installation
information refer to
the Field Controls
SWG-4B Power
Venter Installation
Manual for details
(P/N 46332100.)
