page 3
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
IF YOU HAVE METAL DUCT:
Apply supplied wet and stick mounting template to air duct in either a vertical or horizontal position as a.
shown in Figure 2B.
Drill b.
1
⁄8" diameter mounting holes at positions indicated on template.
Cut out rectangular hole on template using a pair of tin snips or jigsaw. (See Figure 2B) Remove c.
template.

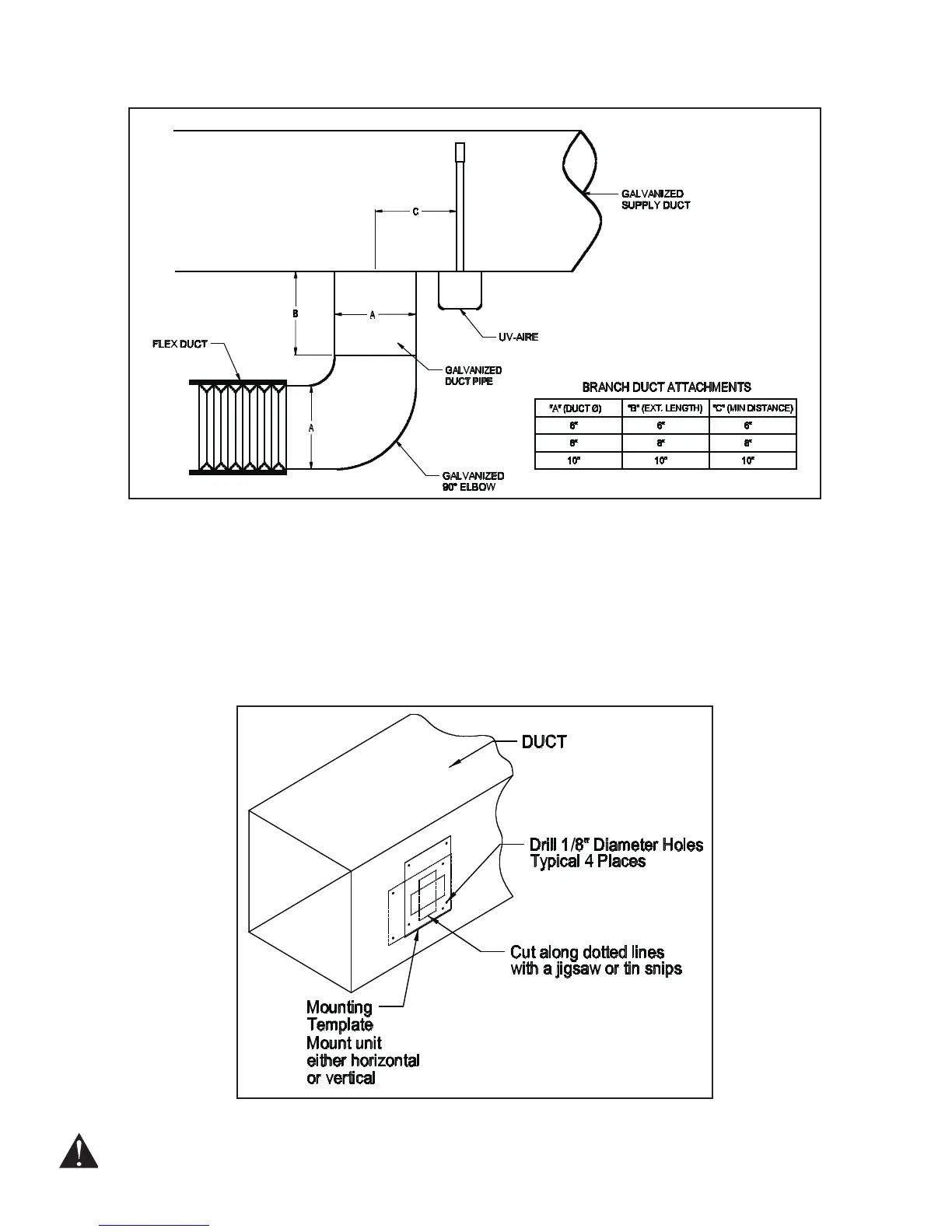

Figure 2B
IF YOU HAVE FLEX DUCT: For installations on duct systems with a metallic main duct and flex duct branches,
follow the instructions in figure 2A below.
Figure 2A
