WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
IF YOU HAVE DUCT BOARD:
Mount the supplied metal mounting plate onto the duct with duct tape in either a vertical or horizontal a.
position as shown in Figures 2B and 3.
Bend tabs outward as shown in Figure 4.b.
Using a knife or blade, cut out a rectangle opening in the duct using the mounting plate as a template. c.
(See Figure 5)
Remove the cut piece of duct. (See Figure 6)d.
Bend both tabs down and through duct at first bend point. (See Figures 7 and 8)e.
Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct f.
material. (See Figures 9 and 10)
Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape. g.
(See Figure 11)
Remove base unit and cover from box. 3.
Apply supplied Duct Seal Kit according to instructions 4.
included in kit. (See Figure 12)

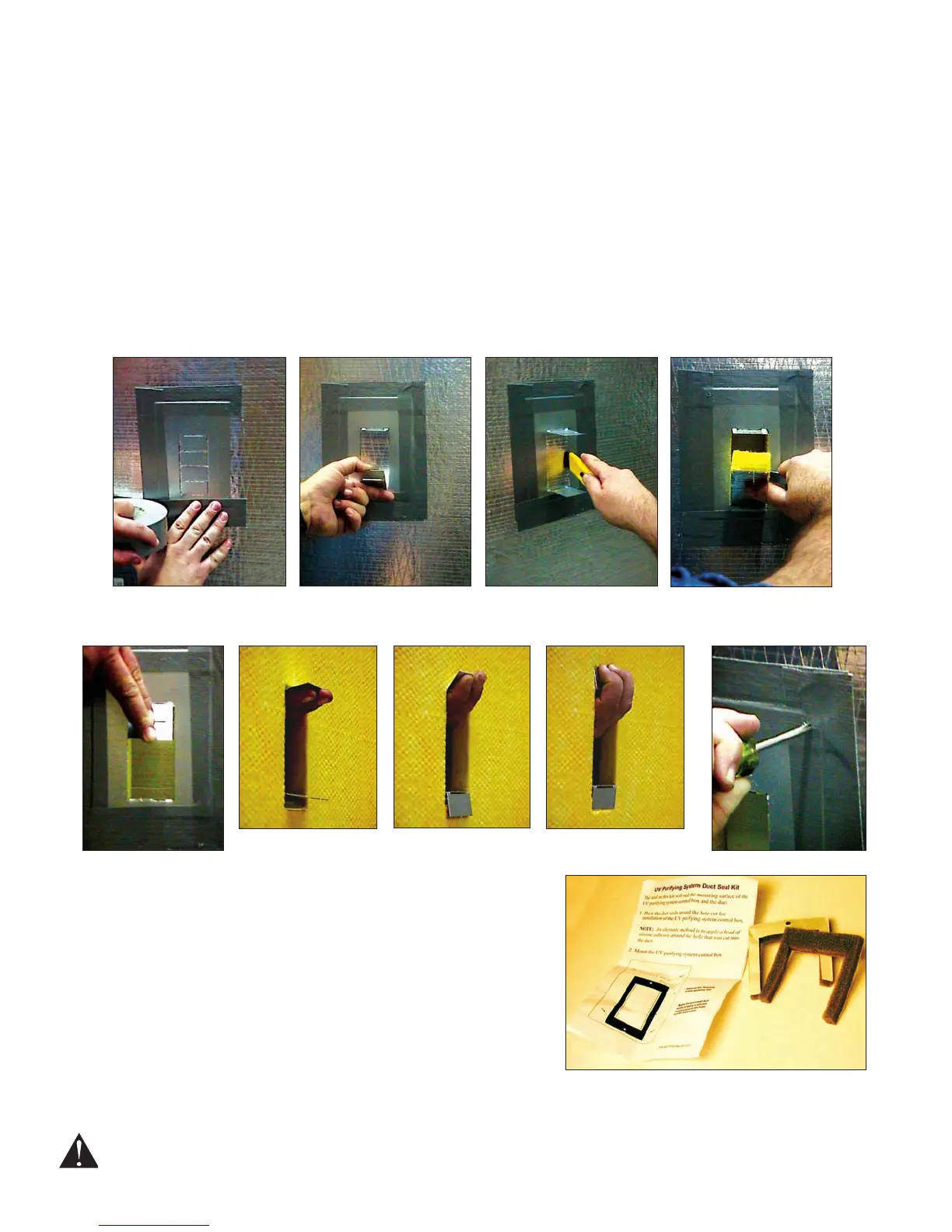

Figure 7
Figure 10
Figure 11
Figure 6
Figure 5
Figure 4Figure 3
Figure 9
Figure 8
Figure 12
