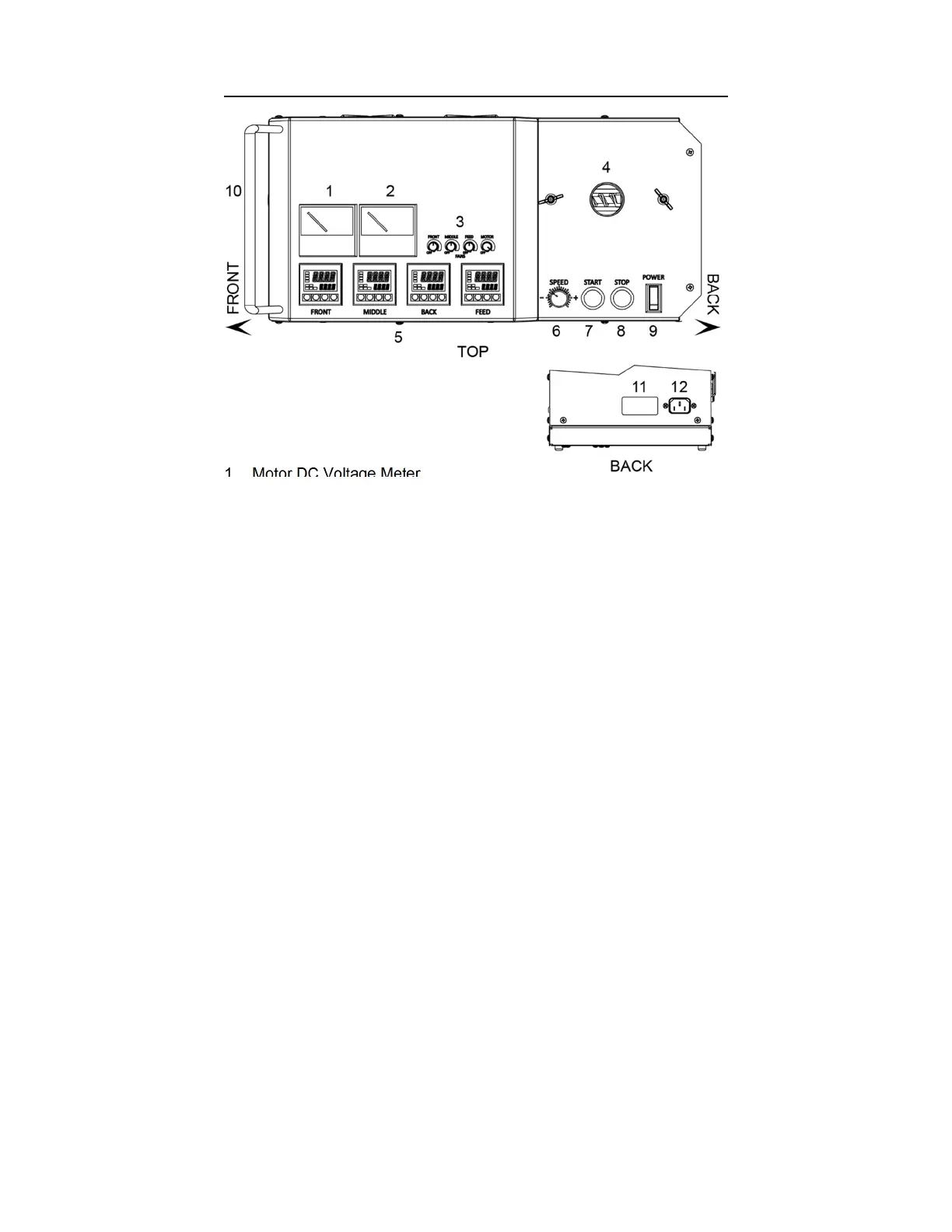

Controls & Inputs
1. Motor DC Voltage Meter
2. Motor DC Amperage Meter
3. Fan Speed Controls (recommended first use settings pictured):
FRONT - Cools barrel between FRONT and MIDDLE heat zones
MIDDLE - Cools barrel between MIDDLE and BACK heat zones
FEED - Cools feed throat
MOTOR - Cools DC motor
4. Feed port for polymer pellets
5. PID Heat Zones
FRONT - Metering section heat zone (nozzle end)
MIDDLE - Compression section heat zone
BACK - Feed/compression section heat zone (feed end)
FEED - Feed port temperature heat zone
6. Motor voltage/speed control knob (0-90VDC)
7. Motor start button
8. Motor stop button
9. Main power switch (thermal breaker)
10. Extrusion nozzle polymer output (front end of the barrel)
11. Serial Number & Voltage Input Label
12. AC Power Input Connector Type: IEC 320-C14
