Filtermaster HP3.8B - Pool System Set up; Connecting the By-Pass

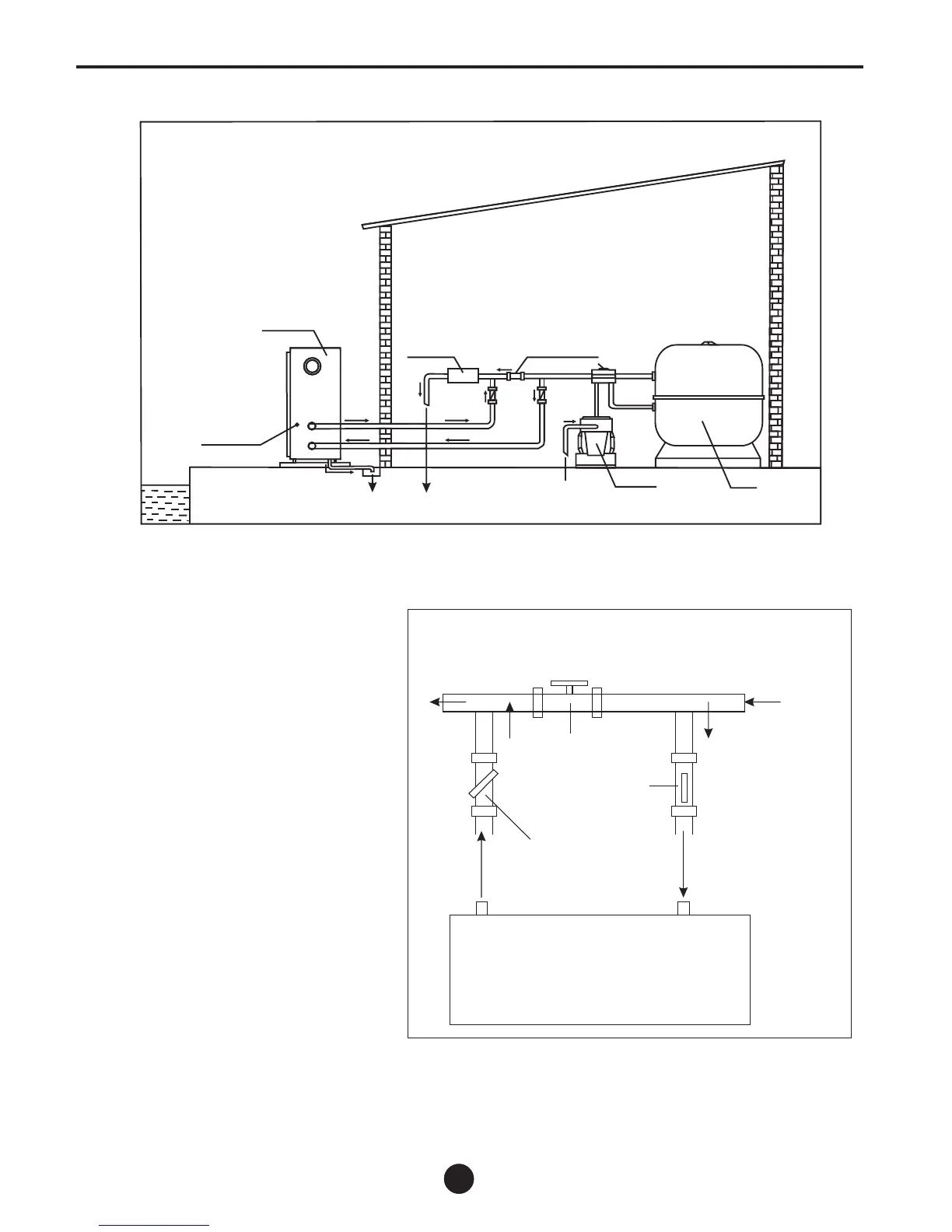

3.5 Pool system set up
3.6 Connecting the by-pass
Valve 1
Valve 2
Valve 3
BY-PASS
F
r
o
m
f
i
l
t
e
r
T
o
p
o
o
l
OUT IN
HEAT PUMP
Power cable inlet
Heat Pump
Outlet
Inlet
Condensed water draining pipe
Draining nozzle
Discharge water to pool
Pool water inlet
Water pump
Filter
Water processor
Side connection valve
VALVE1–
Slightly closed( water pressure increased
with just 100 to 200gr)
VALVE2–
Completely open
VALVE3–
Half way open
Setting the valve of the by-pass:
-Set all 3 valves entirely open
-Slightly close valve 1 ( see also 3.6)
-Close valve 3 about half way to adjust the refrigerant pressure
Swimming pool Heat Pump
