3
Resolution:
0.1m or 0.5 feet (Length)
1mW (Resistance)
Accuracy:
±(1% of reading + 1m or 3ft) < 100m or 300ft at 18° to 23°C
±(1% of reading) > 100m or 300ft at 18° to 23°C
±(2% of reading + 1m or 3ft) < 100m or 300ft below 18° and above 23°C
±(2% of reading) > 100m or 300ft below 18° and above 23°C
¡ØUse the User Select mode for better measurement accuracies.
Resistance:
0 to 10W: ±(0.5% of reading + 3 LSD)
10 to 99.99W: ±(0.5% of reading + 10 LSD)
LSD = Least Significant Digit
Operation Temperature: 0° to 40°C
Operating Humidity: 20% to 80%RH
Sleep mode: After 15 minutes (Approx.)
Battery Life:
Depends on use. Typically 60 hours (180 hours in Sleep mode).
Extended measurement times can lower battery life to no less than
12 hours.
4
Calibration Procedure
(Perform this function before testing)
1. Turn the rotary selector from off to any position to turn the meter on.
2. Set the rotary selector to “R” on the dial.

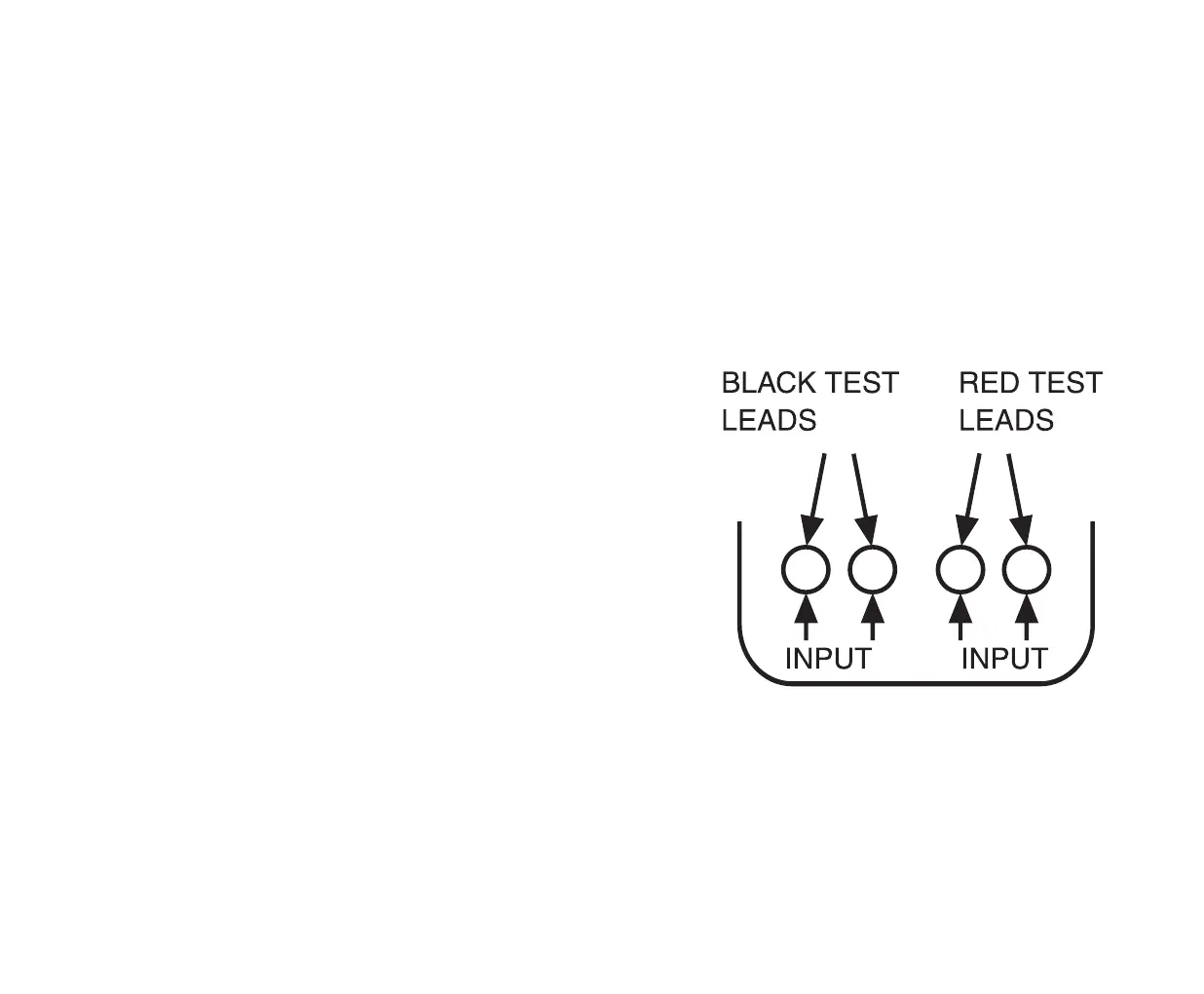

3. Insert the black test leads into one pair of input jacks and the red
test leads into the other pair of input jacks. (Ignore the gray marking
on the banana plug.) This is very important to ensure that the meter
works correctly. If black and red test leads are mixed the meter will
give false readings. (See picture)
