Finn EAGLE 250 - Page 26

LBSS250-SM Rev A
22
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

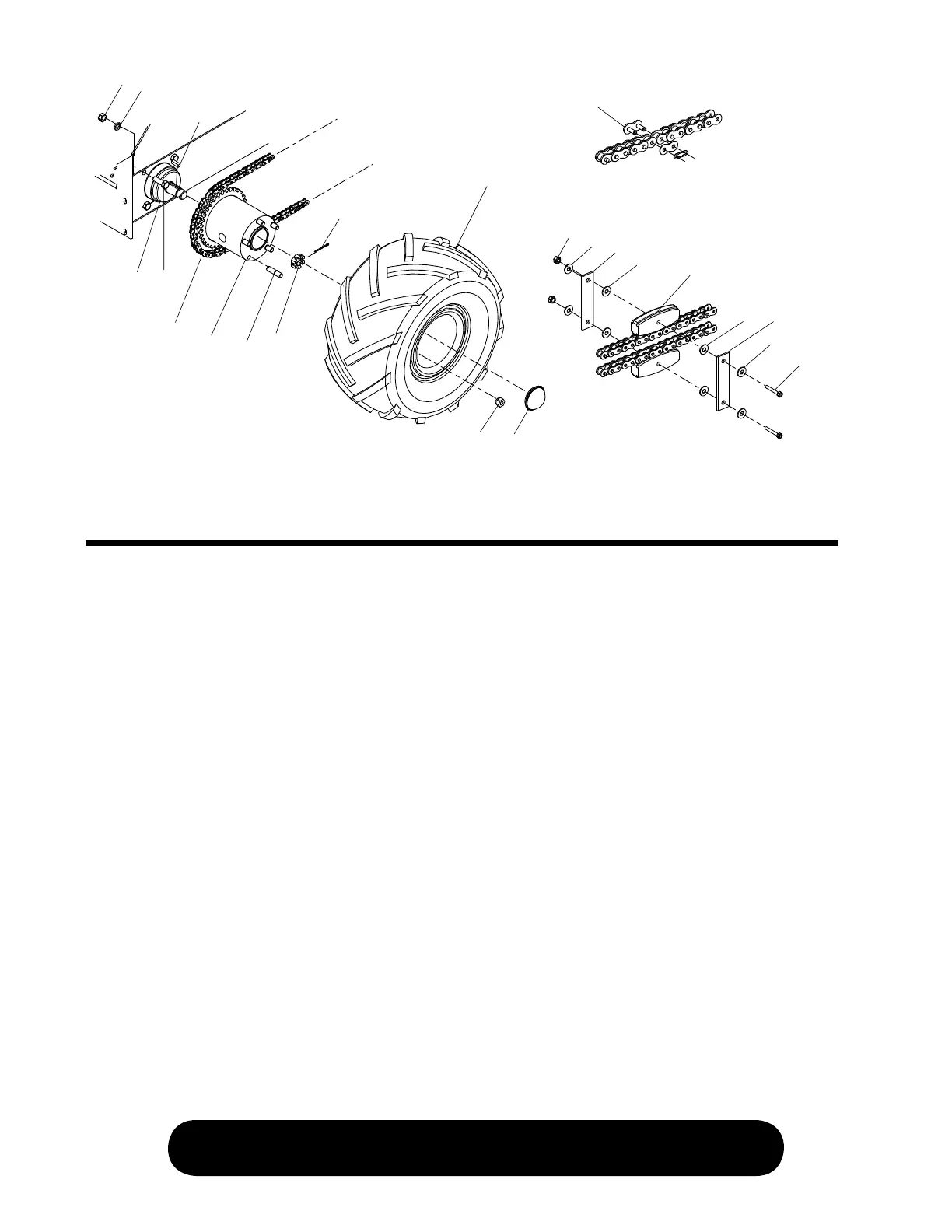

FRONT WHEEL ASSEMBLY
Ref. No. Part Number Description No. Req’d
1 071161 Tire Assembly 2
071130 Tire 2
071162 Wheel 2
2 071027 Front Hub 2
3 071002 Hydraulic Wheel Motor 2
4 071002K Wheel Motor Key 2
5 X0828 1/2-13 Hex Head Bolt x 1-3/4” Lg. 8
6 W06L 1/2” Lock Washer 8
7 Y06 1/2-13 Nut 8
8 071100 Drive Chain 2
8A 023751 Master Link 2
9 WL25-53 Wheel Stud 10
10 071002N Slotted Nut 2
11 071014 Cotter Pin 2
12 WL6-80 Lug Nut 10
13 071019 Dust Cap 2
14 X0424 1/4-20 Hex Head Bolt x 1-1/2” Lg. 4
15 W04F 1/4” Flat Washer 16
16 071106-07 Chain Tensioner Strap 4
17 071011 Chain Tensioner 4
18 Y04L 1/4-20 Lock Nut 4
F250-0019-01 Chain Guard – Left Hand Side 1
F250-0019-02 Chain Guard – Right Hand Side 1
F250-0019-03 Chain Guard – Access Panel 2
8A
16
15
17
18
15
15
16
Chain Master Link Assembly
Chain Tensioner Assembly
15
14
4
6
7
1
11
13
12
5
3
9
2
8
10*
*Front Motor Hub Slotted Nut (It.10)
275 ft-lbs [38 kg-m]
(Front Hub Only)
