Finn EAGLE 250 - Rear Wheel

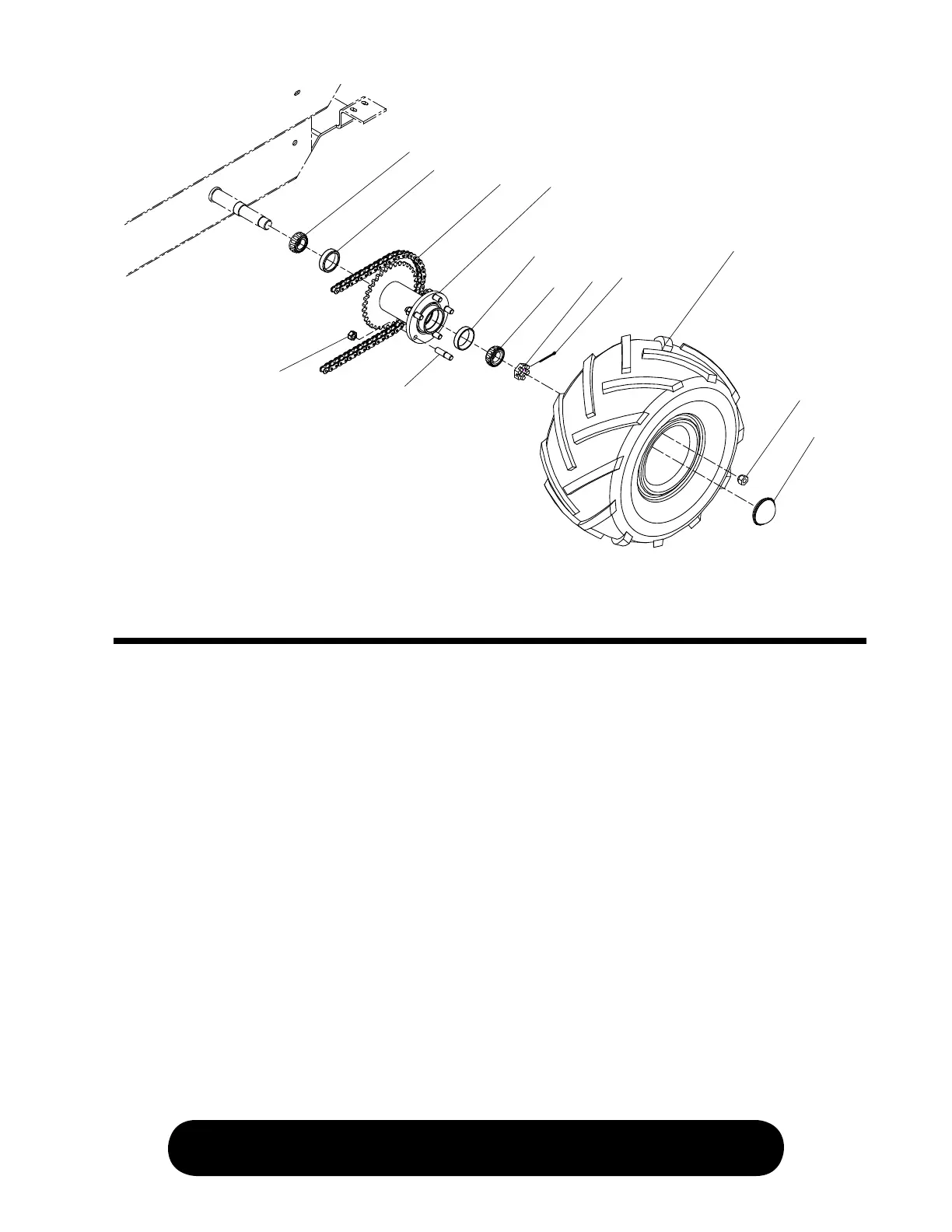

REAR WHEEL ASSEMBLY
Ref. No. Part Number Description No. Req’d
1 071161 Tire Assembly 2
071130 Tire 2
071162 Wheel 2
2 071023 Rear Hub 2
3 071018 Bearing Cone 4
4 071017 Bearing Cup 4
5 071100 Drive Chain 2
6 071013 Slotted Nut 2
7 071014 Cotter Pin 2
8 WL6-80 Lug Nut 10
9 071019 Dust Cap 2
10 WL25-53 Wheel Stud 10
11 YF08J 1/2”-20 Jam Nut 10
F250-0019-01 Chain Guard – Left Hand Side 1
F250-0019-02 Chain Guard – Right Hand Side 1
F250-0019-03 Chain Guard – Access Panel 2
LBSS250-SM Rev A
23
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
3
1
9
8
2
7
6
3
5
4
4
11
10
