FIORENTINI I42TD - Detergent and Movement Control; Detergent Quantity Regulation; Forward and Backward Movement

TECHNICAL DATA
I42TD – I60TD
Rev. 00
January 2005
12/36

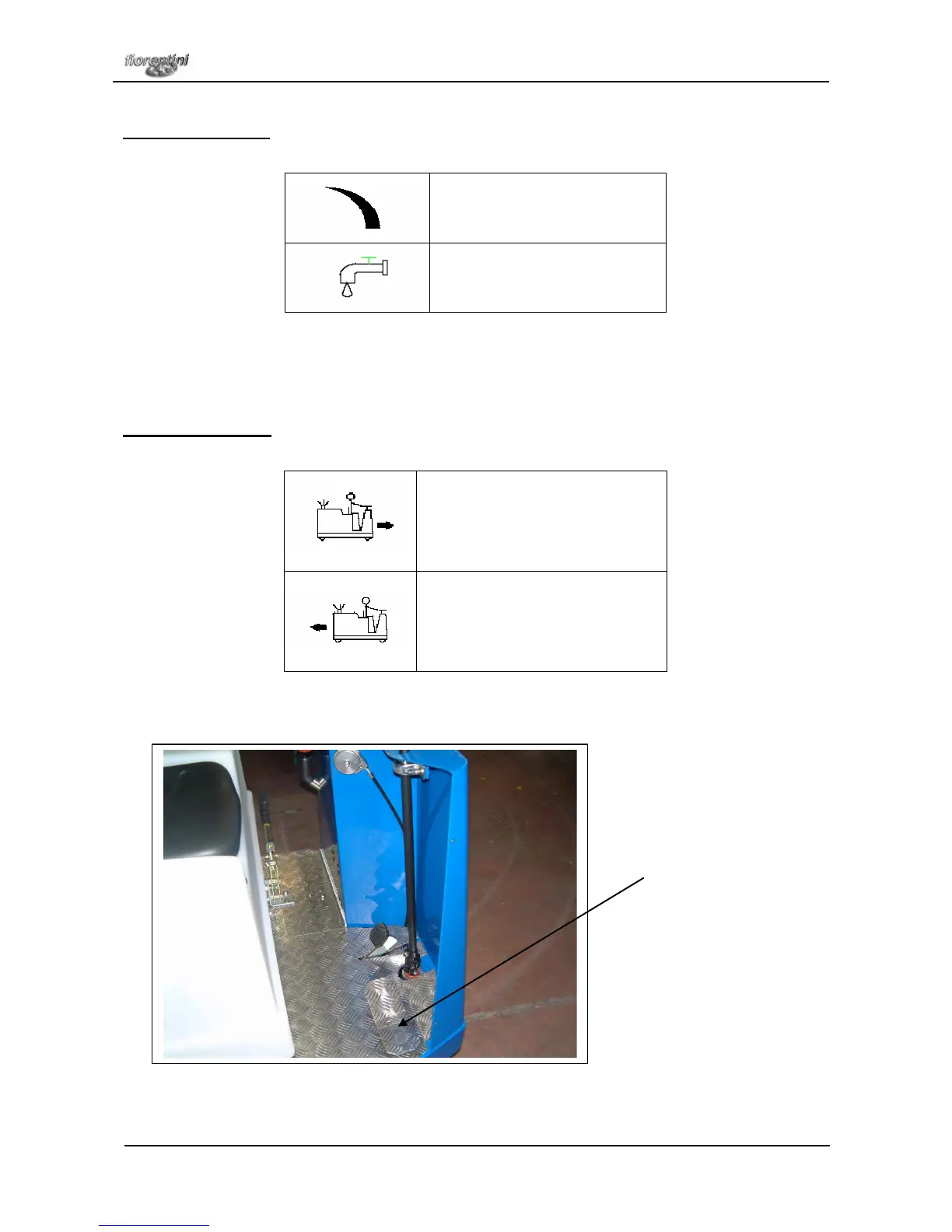

Detergent regulation.
The detergent quantity can be regulated by means of valve no. 15:
- valve clockwise turning: the detergent quantity increase while washing;
- valve counterclockwise turning: the valve closes.
Starting the machine.
By means of the gas pedal the machine can move forward or backward (see pictures on both pedal’s sides).
Gradual increase through the rotation
of the device
Water valve
Forward gear
Backward gear
Gas pedal
