FIORENTINI I42TD - Machine Speed and Braking; Motor RPM Adjustment; Stopping the Machine

TECHNICAL DATA
I42TD – I60TD
Rev. 00
January 2005
13/36
Make sure that the motor rpm is the right one when starting the washing step. The rpm motor is regulated by
means of the lever on dashboard side (see picture no. 4).
Stop the machine.
The machine is equipped with a service brake and a parking brake. The service brake (picture no. 5) is
activated by a pedal placed on the left side of the footboard. The parking brake (picture no. 6) is activated by
a lever similar to a one of a car and is placed in front of the brake pedal.

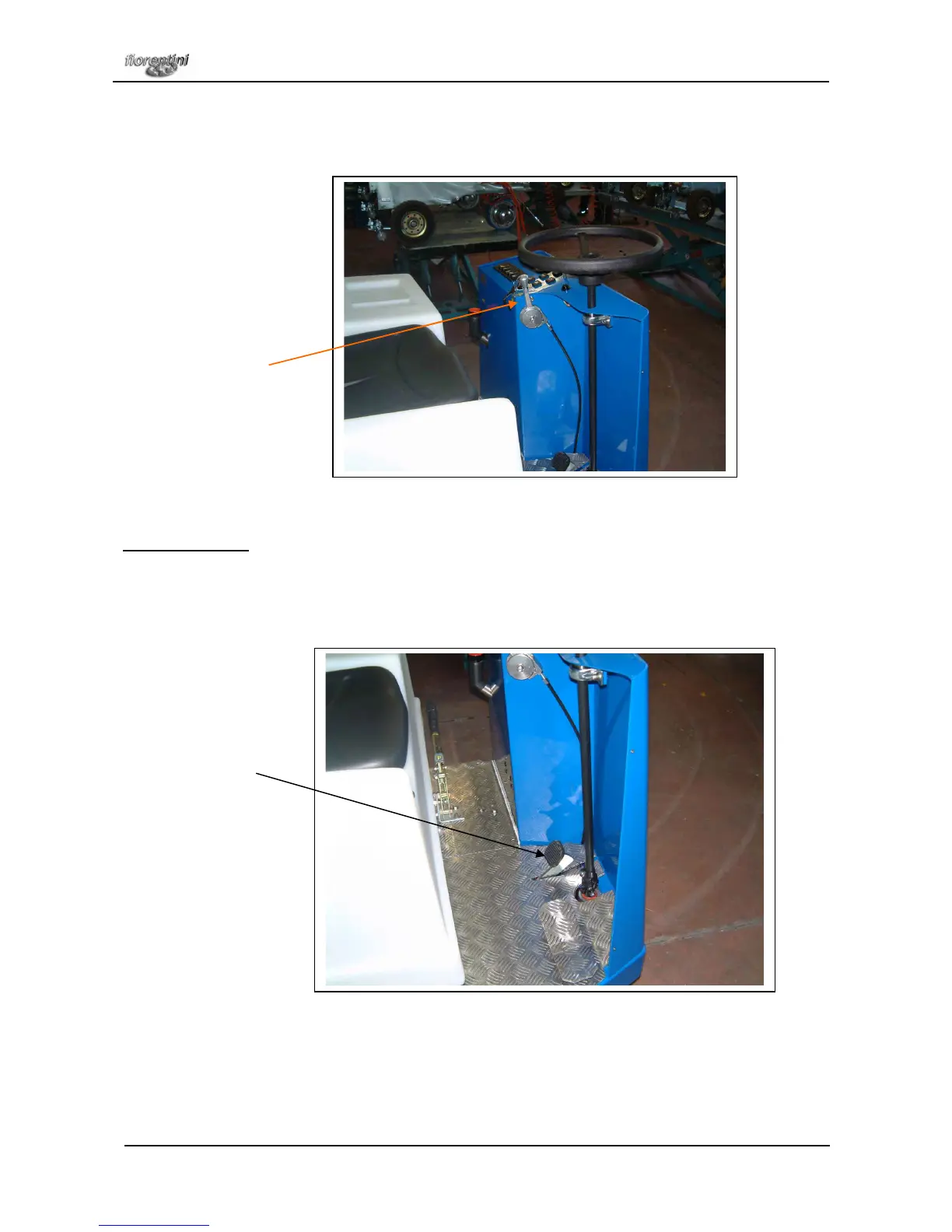

Motor
rpm
regulation lever
Picture no.
4
Service brake
pedal
Picture no.
5
