12
FIRE CHIEF FURNACE
Model FC500E, FC700E and FC1100E
Refer to Assembly Instructions on Page 11

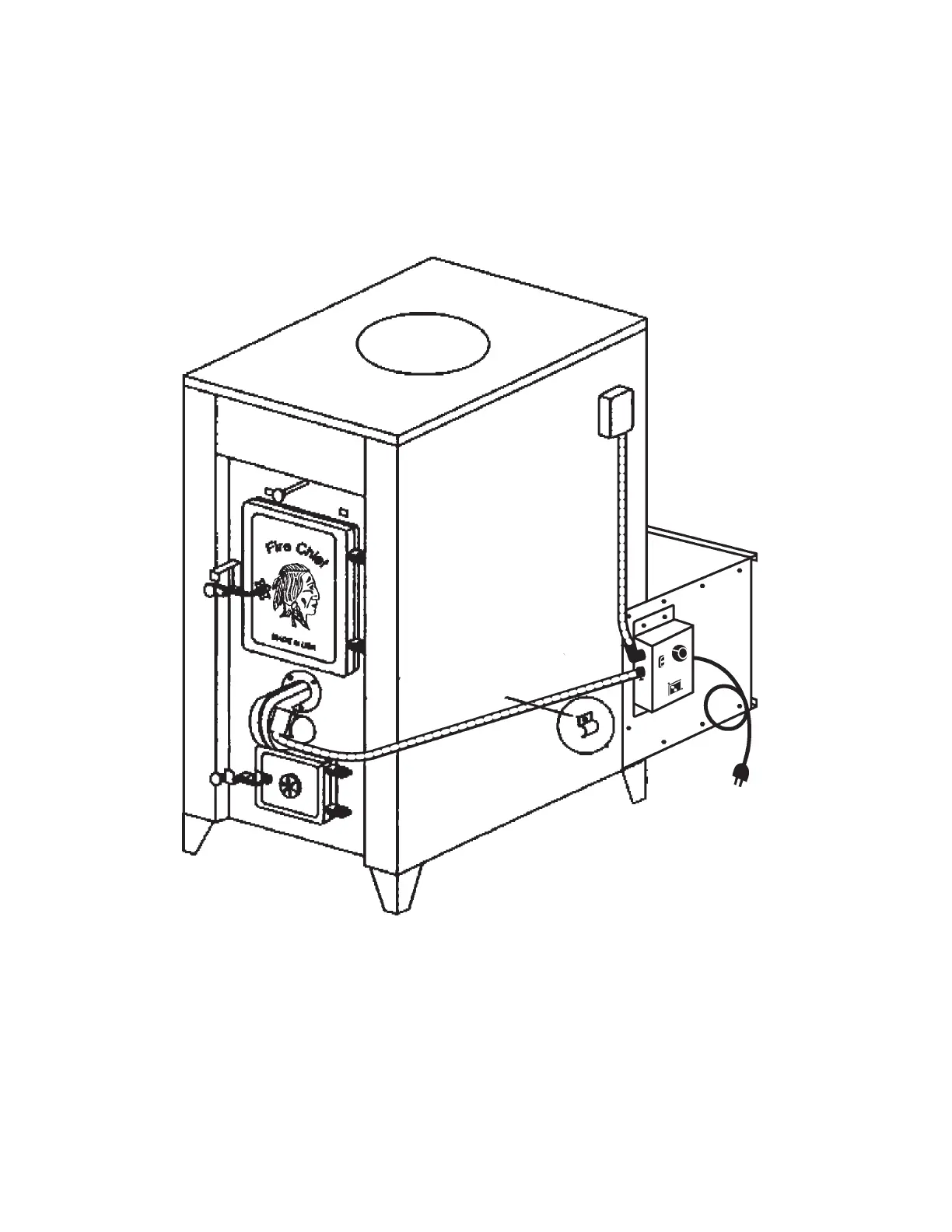

This drawing shows the furnace with the electrical system and filter box
properly installed. The bracket must be attached to the side of the furnace to
secure the conduit. With the connection of thermostat, chimney pipe and duct
work, your furnace installation is complete. Before firing your furnace, be sure
to install a furnace filter - 18” X 25” X 1”.
