Fire Chief 500 - Grates with Diagram by Model

17

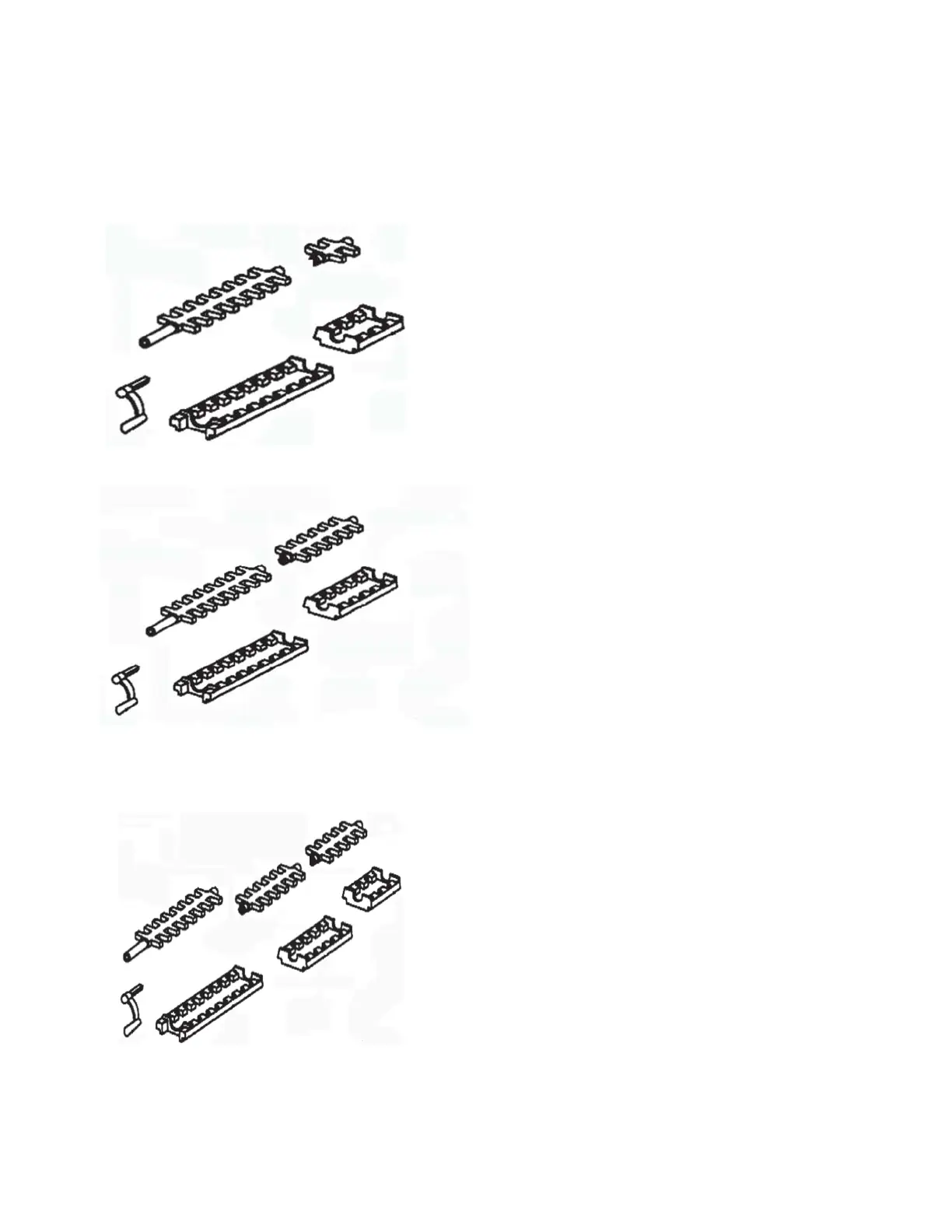

FIRE CHIEF GRATES, BY MODEL
Grates By Model: Refer to Complete Diagram on Page 15 - Diagrams are
for Grates only and quantity needed for each model.
Model 500 Grates -
1 Rear Grate, L - FC5RG ......................... 1
2 Front Roller Grate, F - FCFG ................. 1
3 Roller Grate Handle, - FCSGH ............... 1
4 Front Grate Housing, B - FCFGH ............ 1
5 Rear Grate Housing, M - FC5RGH .......... 1
Not Shown - refer to diagram page 14
Middle Retainer, Z - FCMR .............................. 1
Model 700 Grates -
1 Rear Grate, G - FC711RG..................... 1
2 Front Roller Grate, F - FCFG ................. 1
3 Roller Grate Handle, - FCSGH ............... 1
4 Front Grate Housing, B - FCFGH ............ 1
5 Rear Grate Housing, C - FC711RGH ...... 1
Not Shown - refer to diagram page 14
Middle Retainer, Z - FCMR .............................. 1
Model 1100 Grates -
1 Rear Grate, Y - FC11RG ....................... 1
2 Middle Grate, G - FC711RG .................. 1
3 Front Roller Grate, F - FCFG ................. 1
4 Roller Grate Handle, - FCSGH ............... 1
5 Front Grate Housing, B - FCFGH ............ 1
6 Middle Grate Housing, C - FC711RGH ... 1
7 Rear Grate Housing, X - FC11RGH......... 1
Not Shown - refer to diagram page 14
Middle Retainer, Z - FCMR .............................. 2
3
3
4
2
3
2
5
4
1
4
1
5
2
5
6
7
1
