Fire Chief FC1500 - Furnace Diagram with Parts List

15

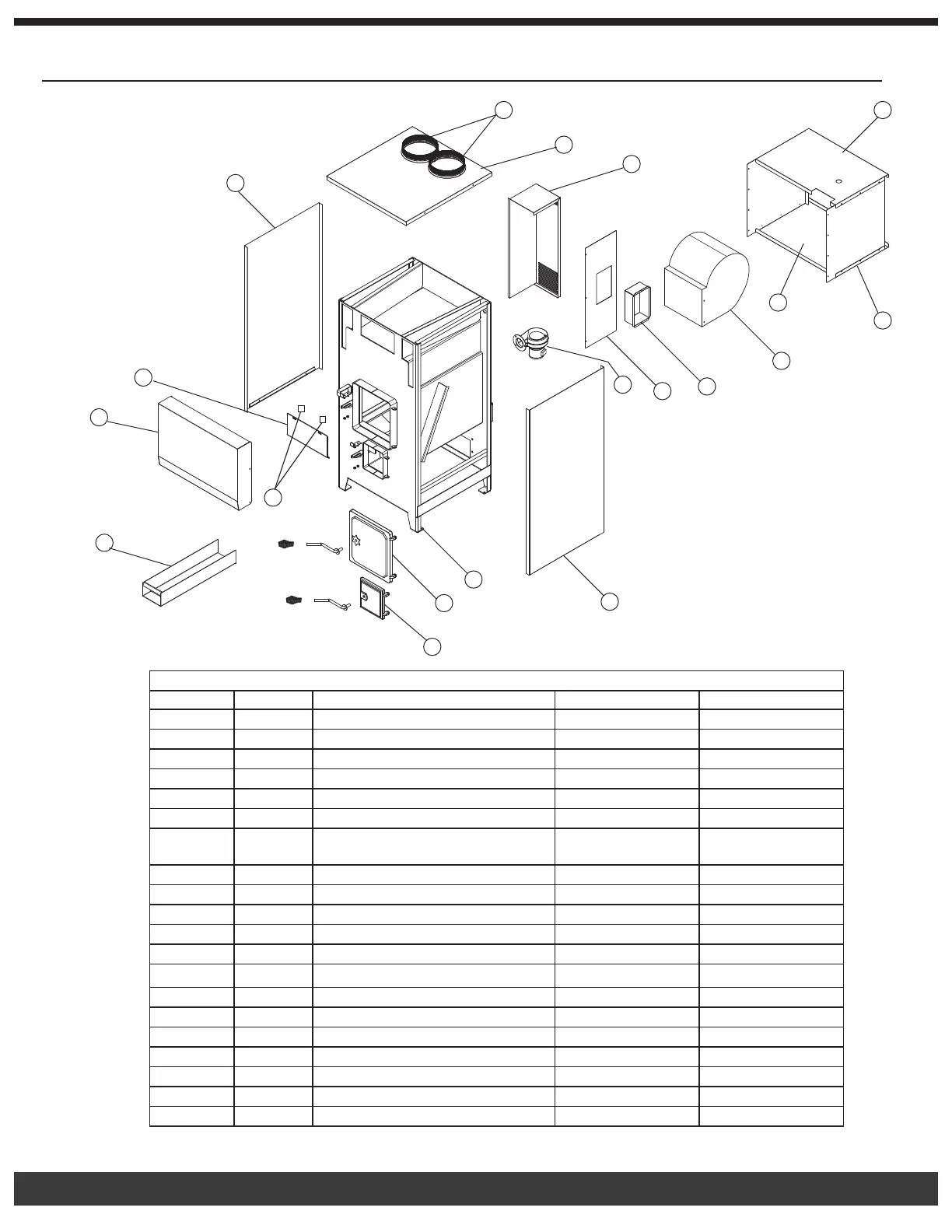

Furnace Diagram
1
2
3
4
5
6
7
8
14
9
10
11
12
13
4
15
16
17
-8a
-8b
18
PARTS LIST
ITEM QTY PART DESCRIPTION FC1500 PART NUMBER FC1700 PART NUMBER
1 1 ASH DOOR ASSEMBLY FCE-ADA FCE-ADA
2 1 FUEL DOOR ASSEMBLY FCE-FDA FCE-FDA
3 1 FURNACE SHELL FC15SHELL FC17SHELL
4 2 SIDE PANEL ASSEMBLY FCE-15SP FCE-17SP
5 1 DRAFT BLOWER MOTOR FCDB FCDB
6 1 ELECTRICAL ENCLOSURE- SIDE WAF-002 WAF-002
7 1 ELECTRICAL CONTROL ASSEMBLY
INDOOR
WAF-IECA WAF-IECA
8 1 BLOWER ASSEMBLY FC3SPMOTOR FC3SPMOTOR
8a (1) BLOWER MOTOR FCDD037P FCDD037P
8b (1) BLOWER HOUSING FCBH FCBH
9 2 FILTER BOX SIDE WAF-FBS WAF-FBS
10 1 FILTER BOX TOP WAF-FBT WAF-FBT
11 1 ELECTRICAL ENCLOSURE- COVER WAF-003 WAF-003
12 1 TOP PANEL INSULATED FCE-15TP FCE-17TP
13 2 STARTER COLLAR SNGCLR8 SNGCLR8
14 1 FILTER BOX BOTTOM WAF-FBB WAF-FBB
15 1 SMOKE CURTAIN WAF-SC WAF-SC
16 1 FRONT WARM AIR PANEL FCE-FAP FCE-FAP
17 1 ASH PAN WAF-15AP WAF-17AP
18 2 CURTAIN CLIP WAF-CC WAF-CC
(1) 1 each of Items 8a & 8b are components making up a portion of item 8 and available individually
