Fire Chief FC1500 - Filter Box

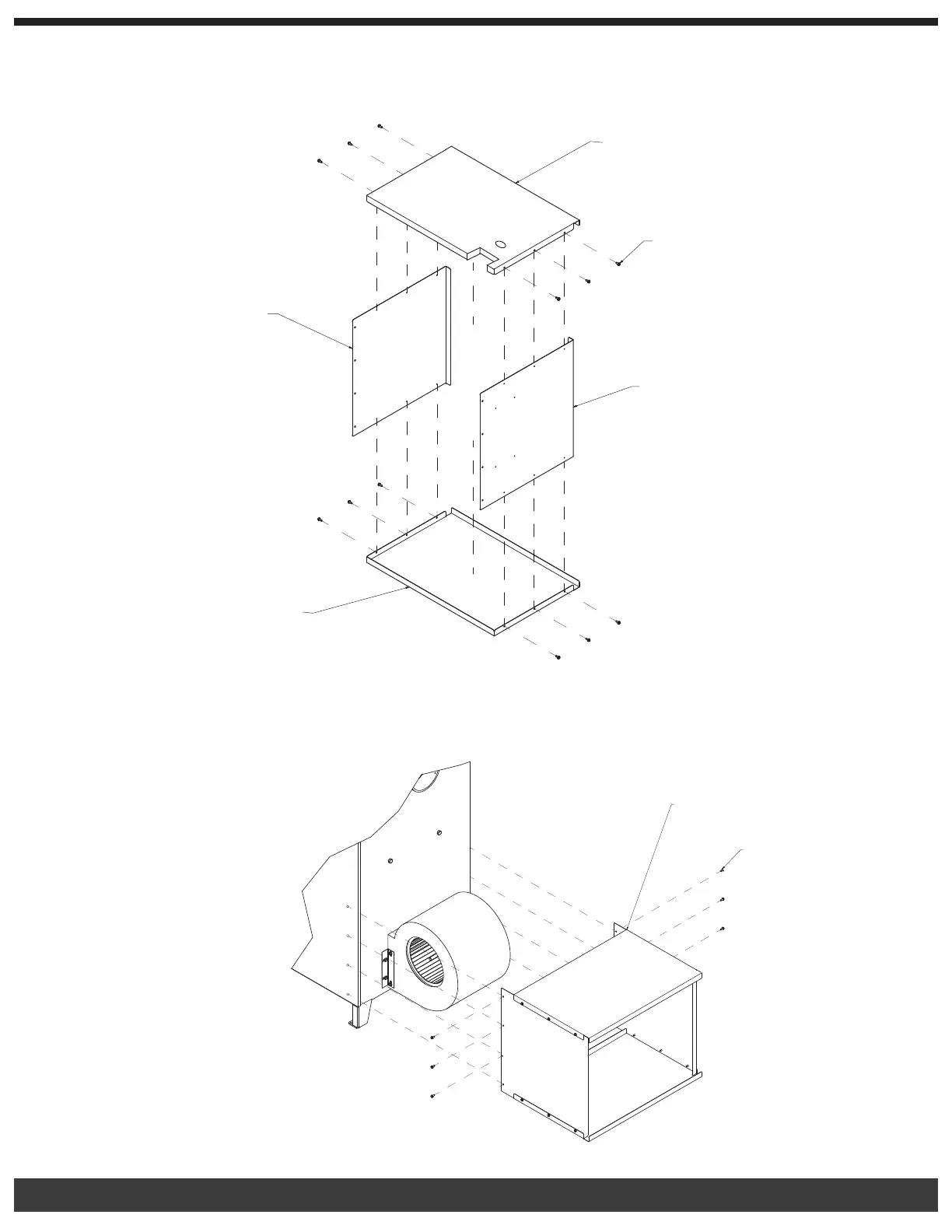

3. Assemble the following parts using 6 #8 sheet metal screws. Both “B” panels should t inside of “C” and “A” panel anges. Attach “C”
(bottom panel) to “B” (side panels). After the top and sides are assembled, attach ”A” (top panel) using 6 #8 sheet metal screws provided.
4. Position the assembled lter box on rear of furnace, supporting it rmly up to electrical enclosure, covering the rear distribution blower.
Make sure the lter box is tightly pressed to the back of the furnace. Use 6 #8 self-tapping screws (included) to rmly attach the lter box
to sides of furnace.
Top Panel (A)
Side Panel With Electric
(B)
Side Panel (C)
Bottom Panel (D)
#10 Sheet Metal Screw
Twelve Places
Side Panel (C)
Bottom Panel (D)
Side Panel with Electric (B)
#10 Sheet Metal Screw
Top Panel (A)
Side Panel (B)
Bottom Panel (C)
#10 Sheet Metal Screw
Top Panel (A)
Side Panel (B)
Filter Box
#10 Screw
Filter Box
#10 Screw
Filter Box
#8 Screw
6
