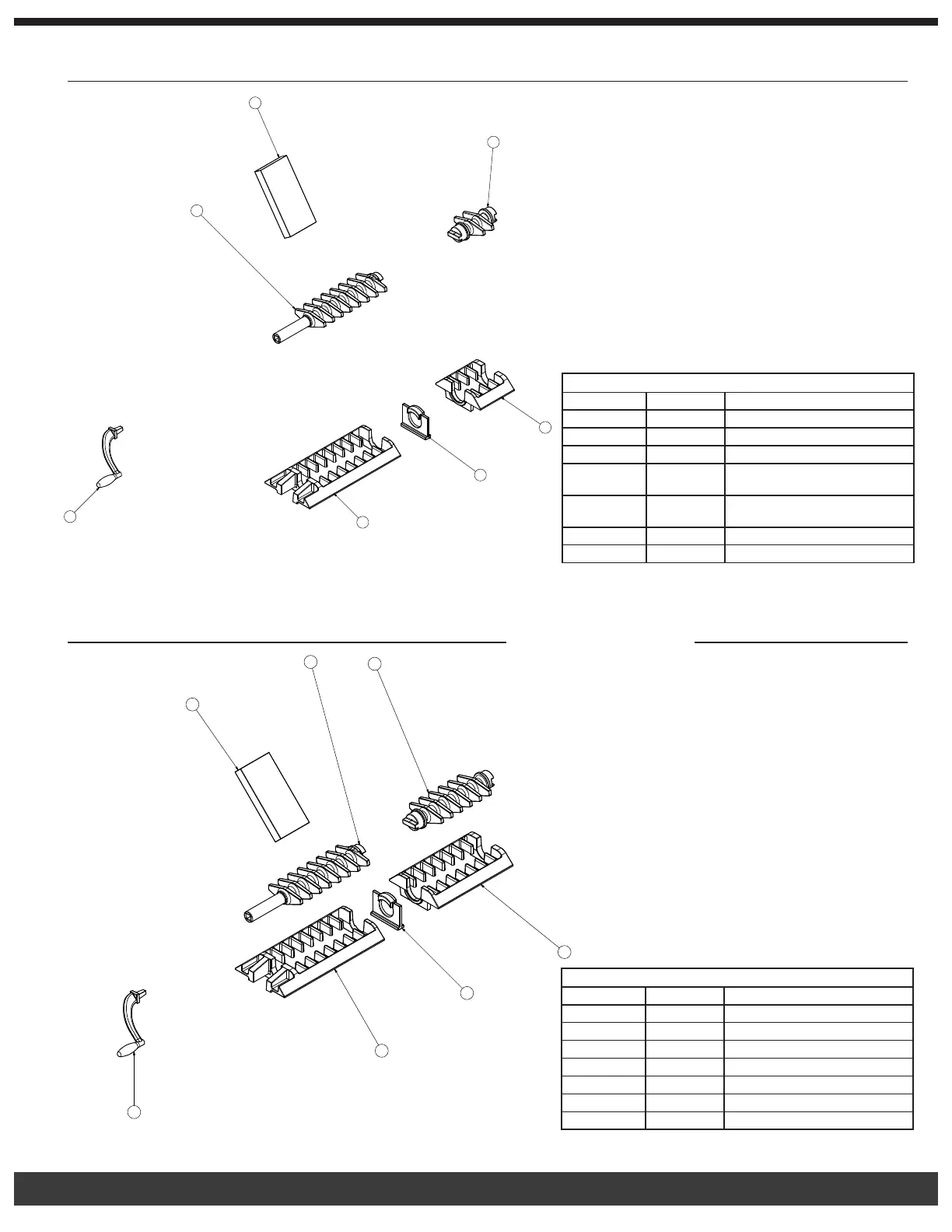

Fire Chief FC1500 - Grate System Diagram - FC1500; Grate System Diagram - FC1700

Grate System Diagram - FC1500
Grate System Diagram - FC1700
16
1
2
3
2b
6
4
6
5
2
1
2
2
3
2b
5
4b
5
4
FC1500 PARTS LIST
ITEM QTY PART DESCRIPTION
1 1 FC00 ROLLER GRATE HANDLE
2 1 ROLLER GRATE BASE
3 1 ROLLER GRATE SUPPORT
2b 1 ROLLER GRATE EXTENSION BASE -
SHORT
4 1 FC000 ROLLER GRATE EXTENSION
- SHORT
5 1 FC000 ROLLER GRATE
6 6 FIRE BRICK
PARTS LIST
ITEM QTY PART DESCRIPTION FC1500 PART NUMBER FC1700 PART NUMBER
1 1 ASH DOOR ASSEMBLY FCE-ADA FCE-ADA
2 1 FUEL DOOR ASSEMBLY FCE-FDA FCE-FDA
3 1 FURNACE SHELL FC15SHELL FC17SHELL
4 2 SIDE PANEL ASSEMBLY FCE-15SP FCE-17SP
5 1 DRAFT BLOWER MOTOR FCDB FCDB
6 1 ELECTRICAL ENCLOSURE- SIDE WAF-002 WAF-002
7 1 ELECTRICAL CONTROL ASSEMBLY
INDOOR
WAF-IECA WAF-IECA
8 1 BLOWER ASSEMBLY FC3SPMOTOR FC3SPMOTOR
8a (1) BLOWER MOTOR FCDD037P FCDD037P
8b (1) BLOWER HOUSING FCBH FCBH
9 2 FILTER BOX SIDE WAF-FBS WAF-FBS
10 1 FILTER BOX TOP WAF-FBT WAF-FBT
11 1 ELECTRICAL ENCLOSURE- COVER WAF-003 WAF-003
12 1 TOP PANEL INSULATED FCE-15TP FCE-17TP
13 2 STARTER COLLAR SNGCLR8 SNGCLR8
14 1 FILTER BOX BOTTOM WAF-FBB WAF-FBB
15 1 SMOKE CURTAIN WAF-SC WAF-SC
16 1 FRONT WARM AIR PANEL FCE-FAP FCE-FAP
17 1 ASH PAN WAF-15AP WAF-17AP
18 2 CURTAIN CLIP WAF-CC WAF-CC
FC1700 PARTS LIST
ITEM QTY PART DESCRIPTION
1 1 FC000 ROLLER GRATE HANDLE
2 1 ROLLER GRATE BASE
2b 1 ROLLER GRATE EXTENSION BASE
3 1 ROLLER GRATE SUPPORT
4 1 FC000 ROLLER GRATE
4b 1 FC000 ROLLER GRATE EXTENSION
5 6 FIRE BRICK
