Fire Chief FC1500 - Blower and Housing

5
NOTE: For your convenience your Fire Chief Furnace has been factory assembled and the electrical control assembly pre-wired.

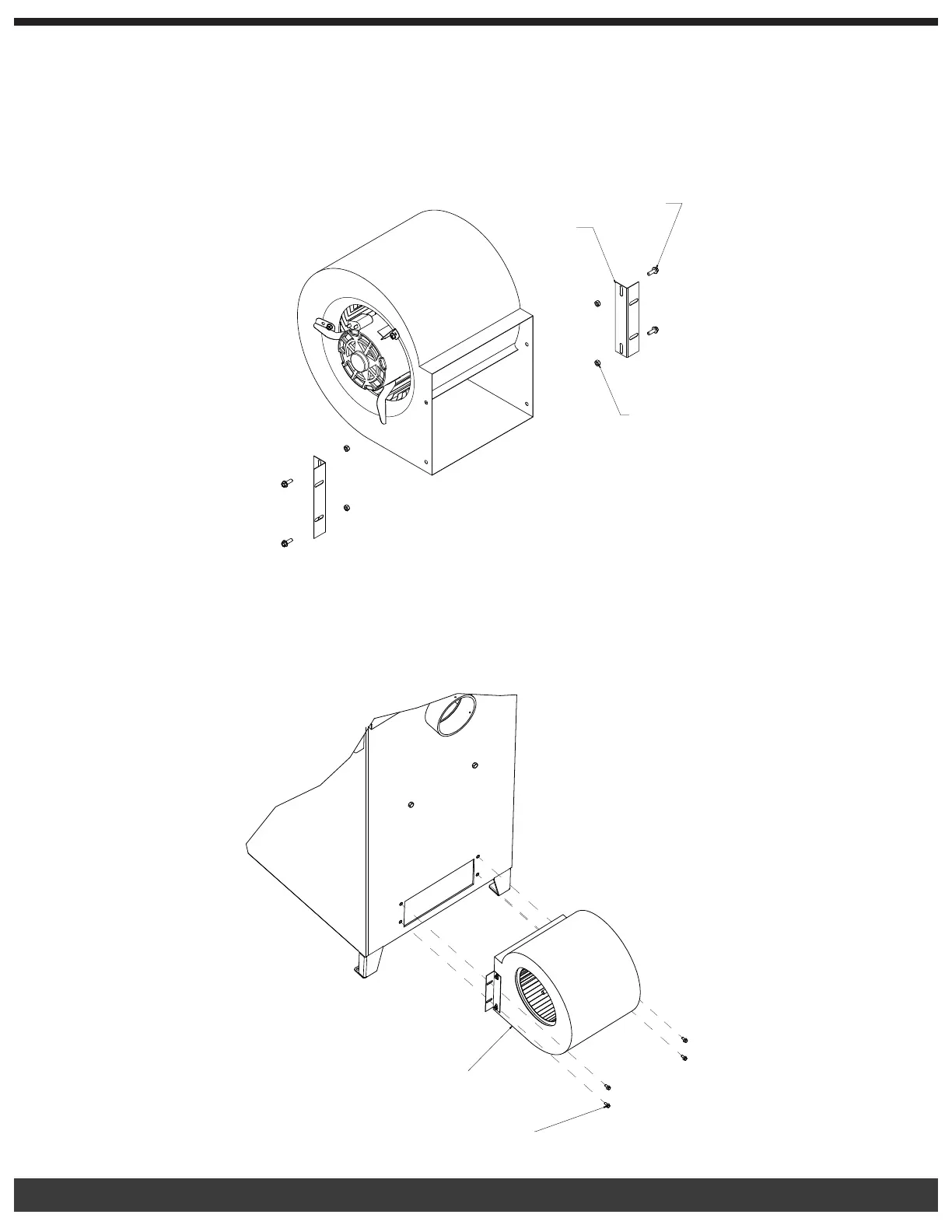

1. Fasten the right and left side angle brackets to the circulation blower using (4) ¼ - 20 bolts and nuts. Line up the blower with the pre-
drilled holes on the backside of the furnace, rmly attach with the screws provided.
2. Attach blower to the left and right mounting brackets.
1/4-20 Bolt
Four Places
1/4-20 Nut
Angle Bracket
1/4 - 20 Nut
1/4 - 20 Bolt
Angle Bracket
Mounting Screw
Blower Assembly
Blower Assembly
Mounting Screw
Blower Assembly
Mounting Screw
