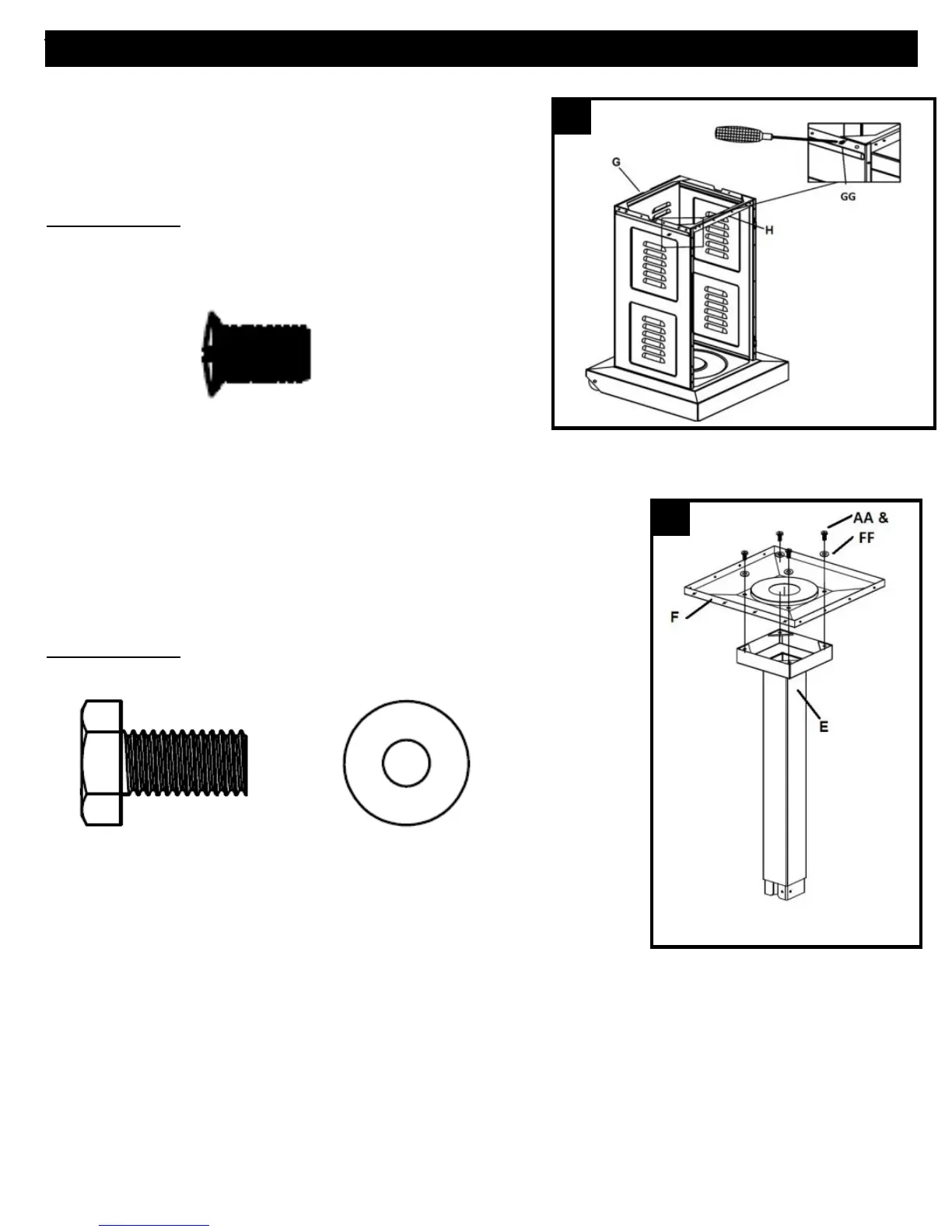

1. Locate Tank Housing Assembly (G) and Tank Housing
Support Bar (H). Attach Tank Housing Support Bar (H) to
the top front edge of the Tank Housing Assembly (G)
with 2 M4x10 (GG) Countersunk Head Screws (screws come
pre-assembled in the Tank Housing Support Bar.)
Hardware Used: 2 x GG, Countersunk Head Screw M4x10
2. Attach the Lower Post (E) to the Post Support Plate (F) using
4 M8x16 (AA) Bolts and 4 M8 (GG) Washers.
(Note: Turn the post and support plate upside down to secure the bolts.)
Align the Post Support Plate (F) with the holes in the Lower Post (E),
and insert 1 M8x16 (AA) Bolt through 1 M8 (FF) Washer and through the
aligned holes. Tighten with a wrench.
Hardware Used: 4 x AA, Bolt M8x16
4 x FF, Washer M8
