FireBird Combi Range User Manual

41
10
SPARE PARTS-BURNER

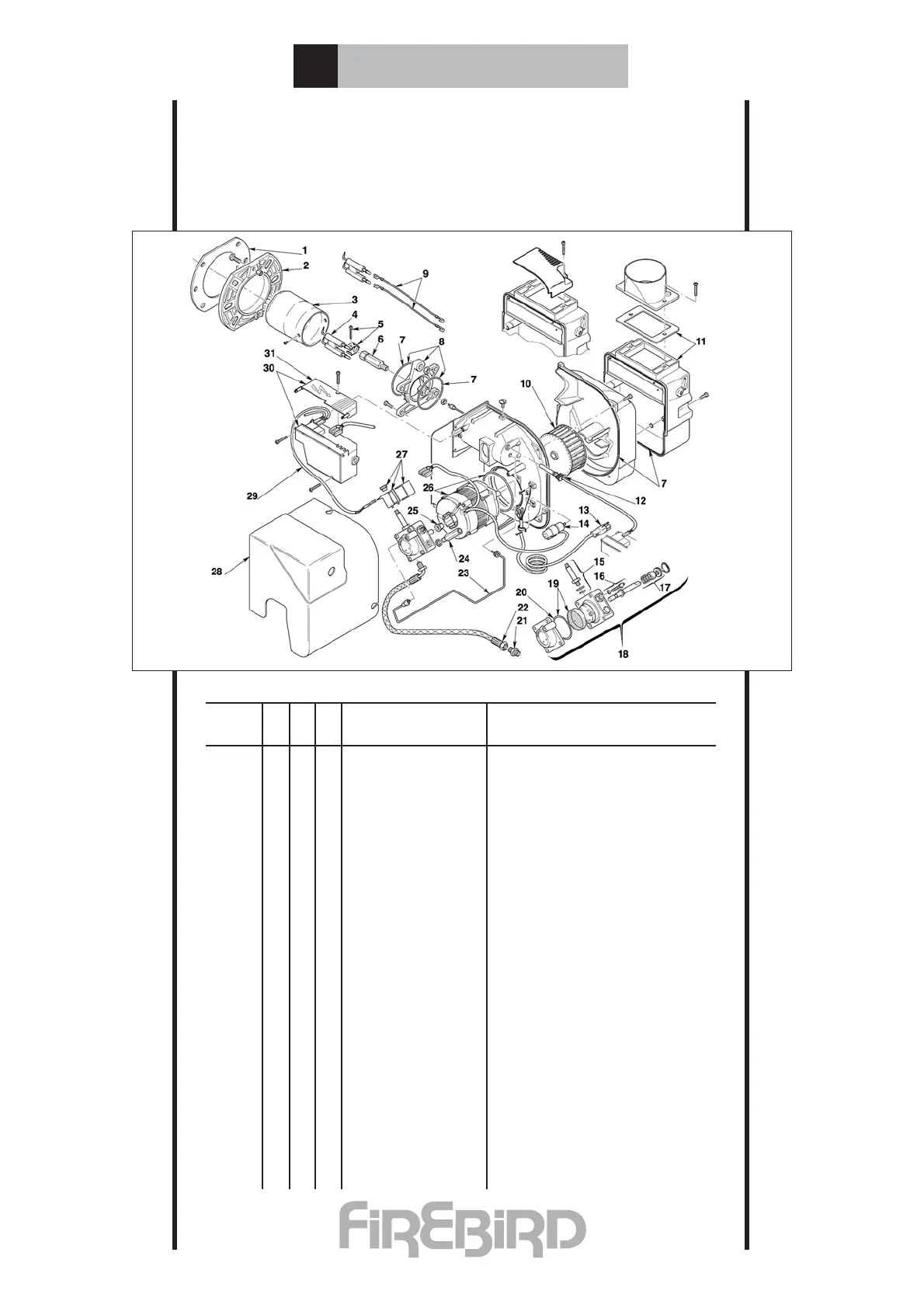

10-A Burner Parts Illustration
Riello RDB Burner
Riello RDB Burner Parts
No. Code Spare Parts Description
1 • • • 3008512 Gasket
2 • • • 3006384 Flange
3 • 3002507 Cup-Shaped Head
3 • • 3002447 Cup-Shaped Head
4 • • • 3007513 Electrode Assembly
5 • • • 3006552 Electrode Bracket
6 • • • 3008642 Nozzle Holder
7 • • • 3008878 Kit Seals
8 • • • 3008643 Collar
9 • • • 3008794 High Voltage Lead
10 • • 3005708 Fan
10 • 3008645 Fan
11 • • 3008647 Air Damper Assembly
11 • 3008839 Air Damper Assembly
12 • • • 3008646 P.E. Cell
13 • • • 3002657 4 Pole Socket
14 • • • 3007479 Capacitor 4uf
15 • • • 3007582 Needle Valve
16 • • • 3008651 Regulator
17 • • • 3000439 Pump Seal
18 • • • 3008654 Pump
19 • • • 3008653 Filter - O - Ring
20 • • • 3007162 O - Ring
21 • • • 3009068 Connector
22 • • • 3007621 Flexible Oil Line
23 • • • 3008644 Tube
24 • • • 3008876 Pressure Gauge
25 • • • 3000443 Joint
26 • • • 3008650 Motor
27 • • • 3008648 Coil
28 • • • 3008879 Cover
29 • • • 3008851 Lead Coil
30 • • • 3008652 Control Box 535RSE/LD
31 • • • 3008649 Protection
32 • • • 3007418 4 Pin Plug
3513105 3513205 3513605
RDB1 Firebird 70K C.O.D. 3513105 TYPE 501 T1K
RDB1 Firebird 90K C.O.D. 3513205 TYPE 501 T1K
RDB2 Firebird 120K C.O.D. 3513605 TYPE 501 T3K
