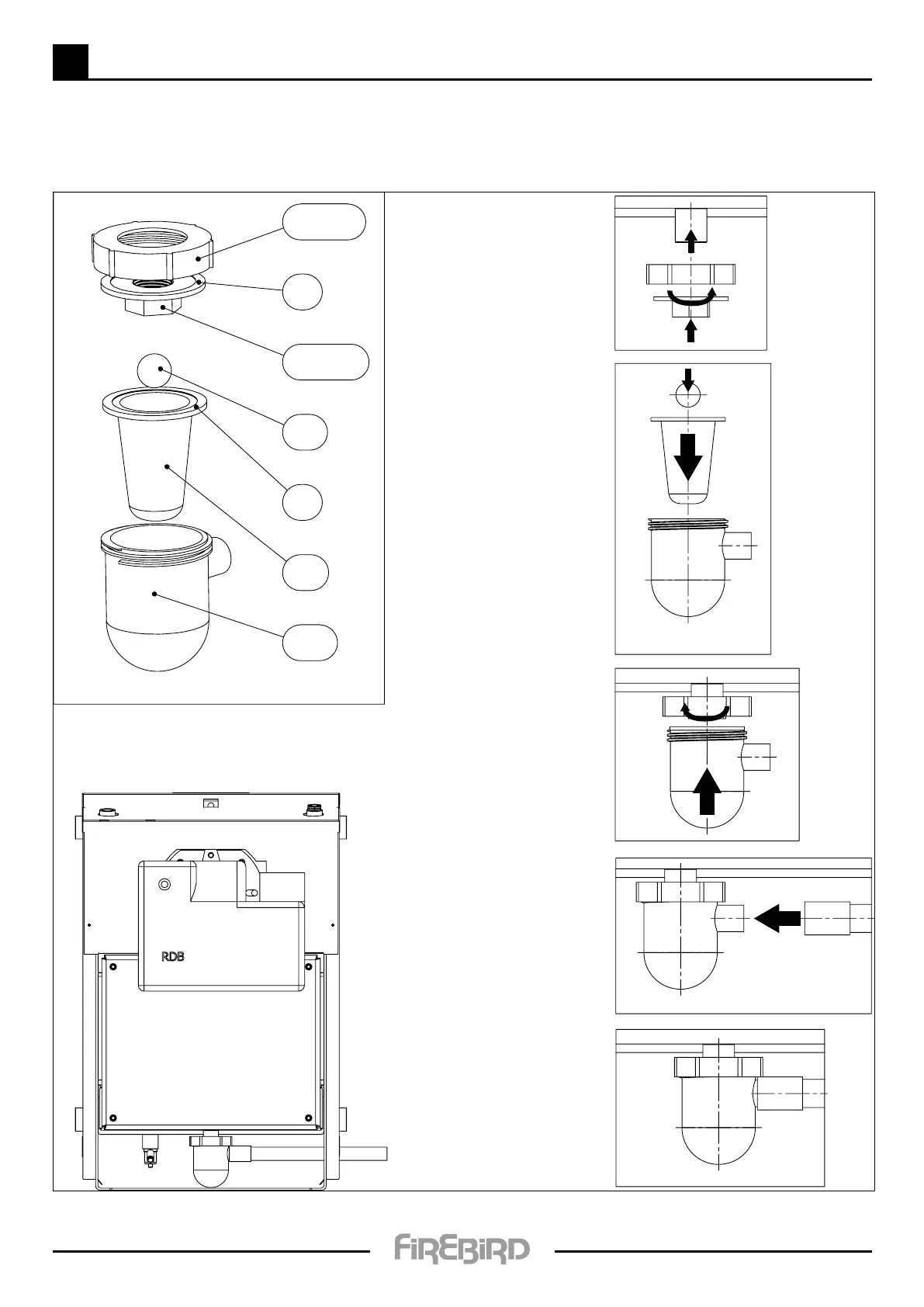

4.2 - INSTALLATION - CONDENSATE DISPOSAL
Connector
Frame
Cone
Float
Screw cap
Seal
Seal
1. Push screw cap into
connector and screw onto
socket.
2. Place cone into frame
and float into cone.
3. Screw frame with cone and
float into connector.
5. Final assembly.
4. Push flexible pipe onto
frame socket.
Condensate Trap Fitting
