4.4 - INSTALLATION - FLAP VALVE

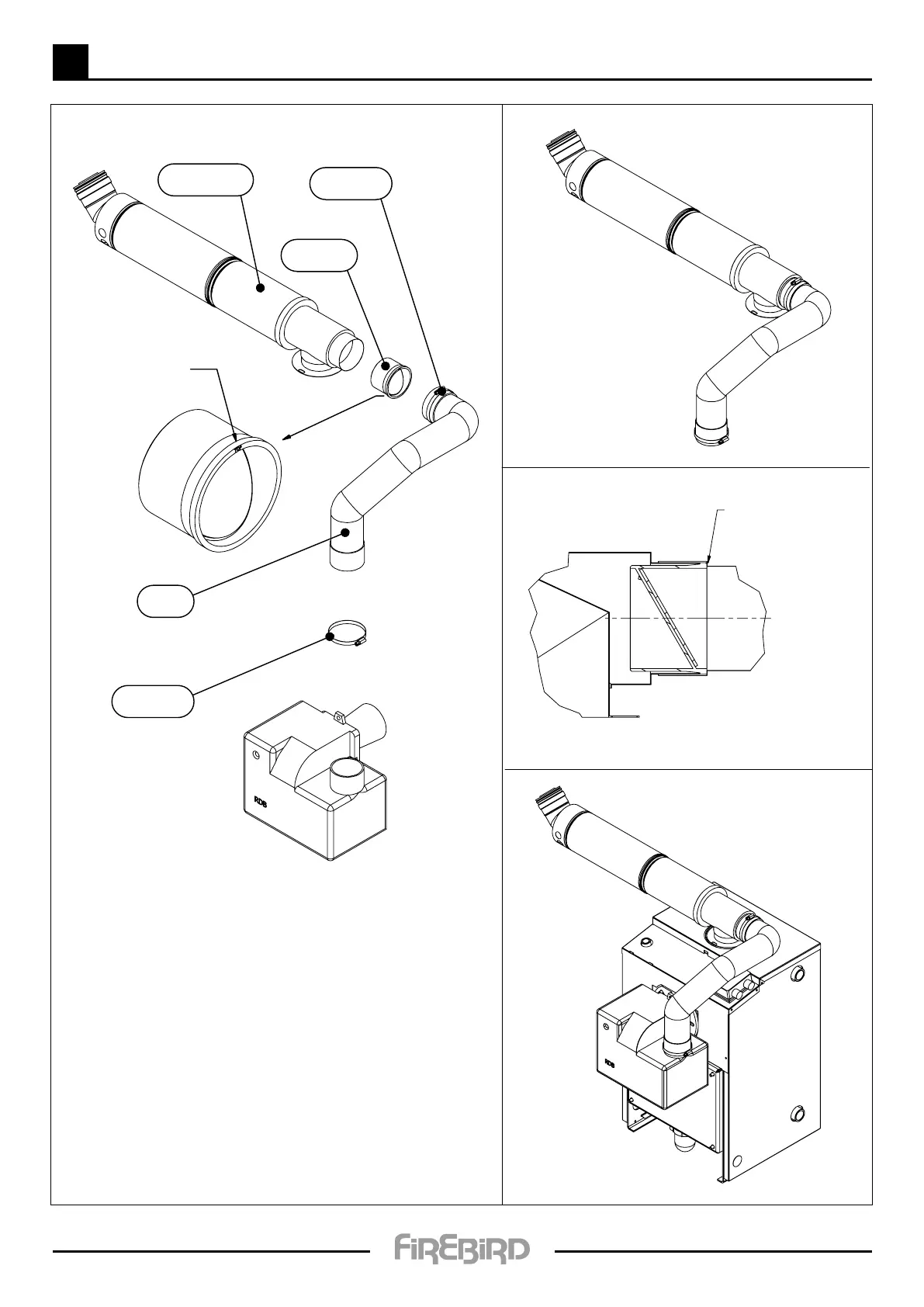

Correct position of flap valve
"TOP" mark
Jubilee clip
Jubilee clip
Flap valve
Balanced flue
"TOP" mark
Snorkel
1. Push the flap valve into the balanced
flue air intake.
2. Ensure that the flap valve is in the
correct position.
3. Push the snorkel hose over the flap
valve and air intake and secure with a
jubilee clip.
4. Attach the other end of the snorkel
hose to the burner with jubilee clip.
