FireBird Heatpac 12-18kW User Manual


1. Temperature control knob.
2. LCD.
3. Power green light. Lights green when power to the panel.
4. Mode button (for scrolling through the display options on
the LCD).
5. Re-set button.
6. Error red light.

• Turnfuelsupplyon.
• Switchpowersupplytoboileron.
• The greenled will lightupand the LCDwill showtheset
temperature or “off”.
• If“o”appearsontheLCD,pressthemodebutton“4”and
hold for 6 seconds until the set temperature appears on the
led.
• Turnonthetimerorheatdemandswitch,i.e.roomstat.
• Turnthetemperaturedialclockwisetoincreasetemperature.
The set temperature displayed on the LCD will increase.
Temperature range - min. 60˚C to max. 85˚C.

• Pressbutton4andholdfor6secondsuntil“o”appearson
the LCD.
• Switchthetimerorheatdemando.
• Turnothemainselectricalsupply.

The LCD displays the boiler set temperature, actual boiler
temperature, hours of operation, system pressure (if a pressure
sensor is fitted) and program number. The different displays
are accessed by pressing the mode button “4” on the panel.
2
4

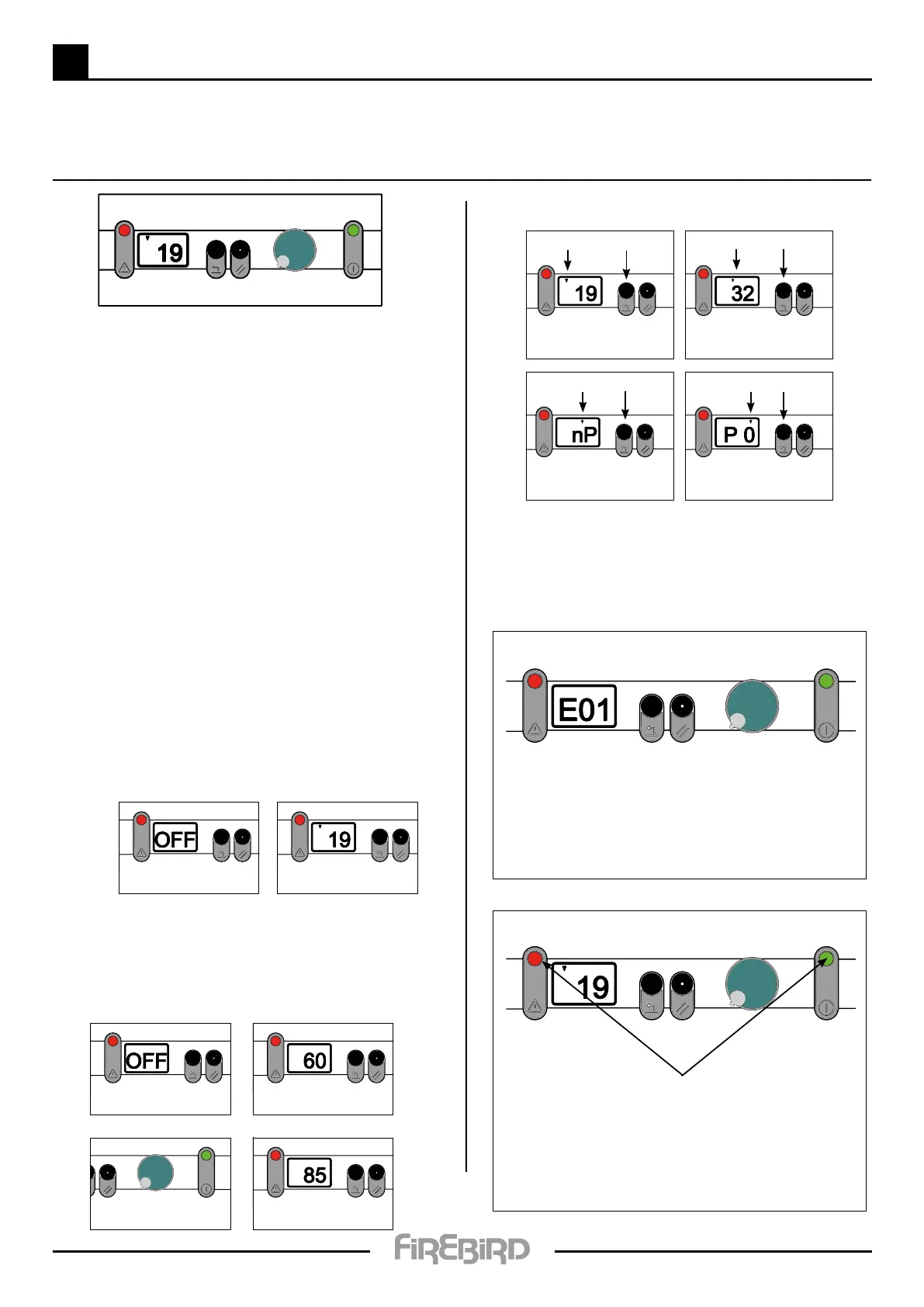

2.2 KITCHEN ELECTRONIC CONTROLLER - HOUSEHOLDER INSTRUCTIONS


Warning: Should an error appear on the control panel
display, consult your service engineer or the Firebird
technical department before attempting to re-set the error.
This controller has a number of new features as standard, these include: anti-cycling, frost protection, on/off switch option, hours of
operation records, system pressure display, pump over-run and liquid-crystal display (LCD). The LCD shows key boiler information and
error codes. This controller can work with and be controlled by room thermostats, timers or heat demand switches.
Min. Set Temperature
Temperature Dial Max. Set Temperature
1
3
54
6
2
1. Off
2. Switch on
Off
Actual Boiler
Temperature
Press mode button x 1
Hours of Operation
1= 10 Hours
Press mode button x 2
System Pressure
(pressure sensor required)
Press mode button x 3
Programme No.
Press mode button x 4
 Thermistor fault.
 Flue thermistor fault (if flue thermistor installed into
flue).
 Burner lockout. Burner fault.
High limit, temperature in boiler overheats.

To re-set and clear an error from the control panel:
• Usethetipofapinandinsertintothere-setbutton“5”
on the panel. Press and hold until the error clears.
• ForE5(burnerlockout),pressthelockoutbuttononthe
burner first. This will not be lit up as normal, then press
the reset button “3” on the panel.

