Condensate Plume disPersal
When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal.
Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance.
It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope
with plume dispersal from a condensing boiler.
4
13
4.5 INSTALLATION - FLUE SYSTEMS

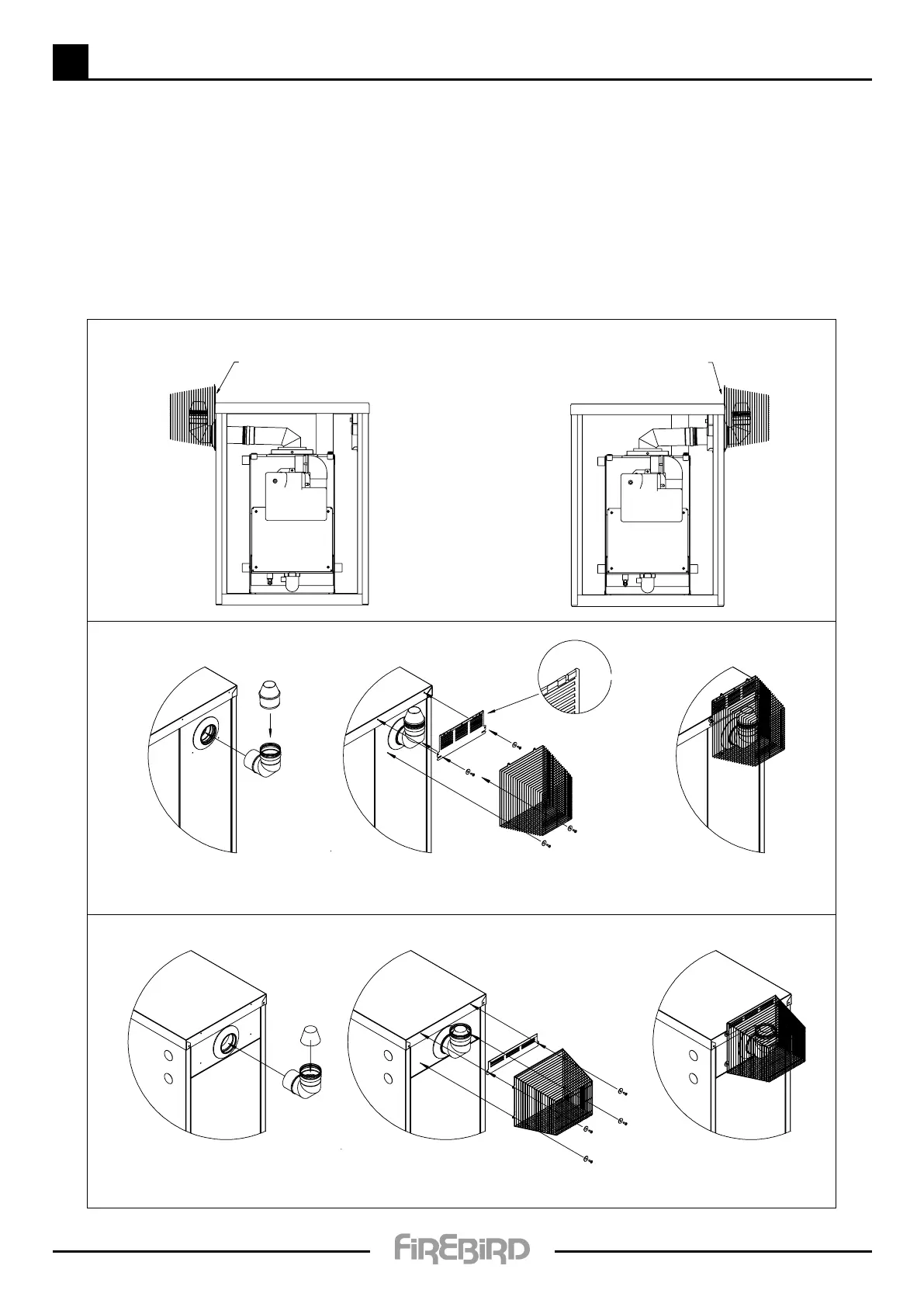

SILVERPAC & SLIMLINE SILVERPAC FLUE
Put the 90˚ ue terminal
with the cone on the boiler.
Fix the guard plate to the boiler and
then the guard to the boiler.
Heatpac boiler
after installation.
Fig. 1
Fig. 2 Fig. 3
SILVERPAC
Put the 90˚ ue terminal
with the cone on the boiler.
Fix the guard and the guard
plate to the boiler.
Slimline Heatpac boiler
after installation.
Fig. 1
Fig.
ig. 3
SLIMLINE SILVERPAC
90˚ terminal should be tilted up
to prevent condensate droping
from end of flue
For right hand flue option, remove the
two screws securing the flue, rotate the flue
and swap the removable side panels
installation instruCtions are suPPlied WitH all Flue Kits
(see BeloW For silVerPaC & slimline silVerPaC)
