PLUME KIT
80 mm 45˚ bend
Wall bracket
Extensions
X=250mm / 500mm / 1000mm
80 mm 90˚ bend

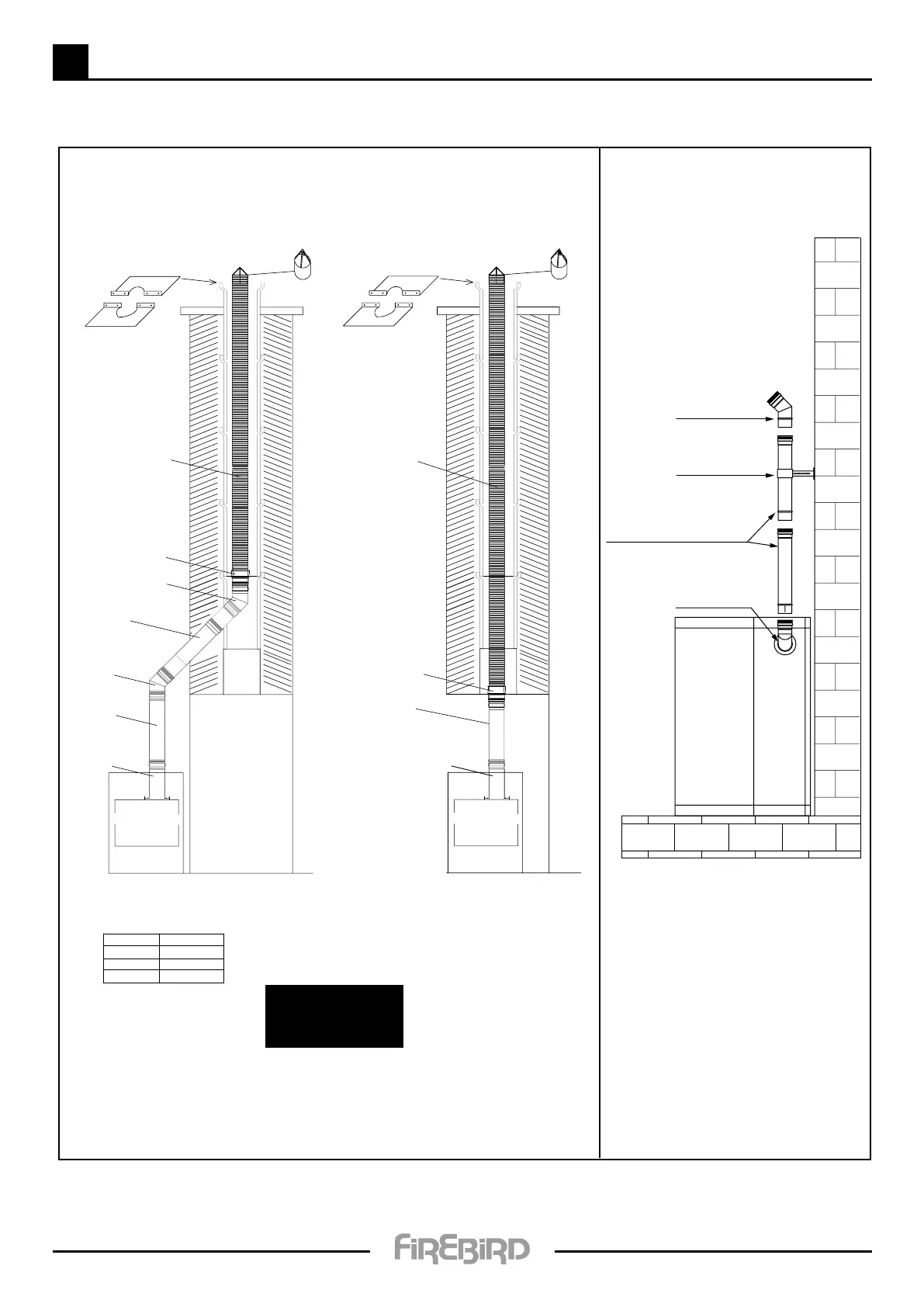

CONDENSING BOILER CHIMNEY INSTALLATION
System 35 flexible liner
suitable for condensing
applications
System 35
adaptor
45˚ bend
500mm
adjustable length
45˚ bend
500mm
length
Boiler adaptor
Condensing
birdguard
Condensing
birdguard
System 35
clamp plate
System 35
clamp plate
System 35 flexible liner
suitable for condensing
applications
System 35
adaptor
500mm
Adjustable length
Boiler adaptor
Condensing
boiler
Condensing
boiler
NOTE:
All brick chimney constructions must comply with current building
regulations and BS 5410-1: 2014. Insulated factory made chimneys
should comply with BS EN 1856-1: 2009.
Single wall stainless ue
suitable for condensing
boilers. Available in
stainless steel nish or
white nish
Boiler
12-20kW
20-26kW
26-35kW
Diameter
100mm
100mm
100mm
FLUE SIZE
4
14
4.5 INSTALLATION - FLUE SYSTEMS
