3 3.2 STANDARDS & REGULATIONS - FLUE SYSTEMS
10

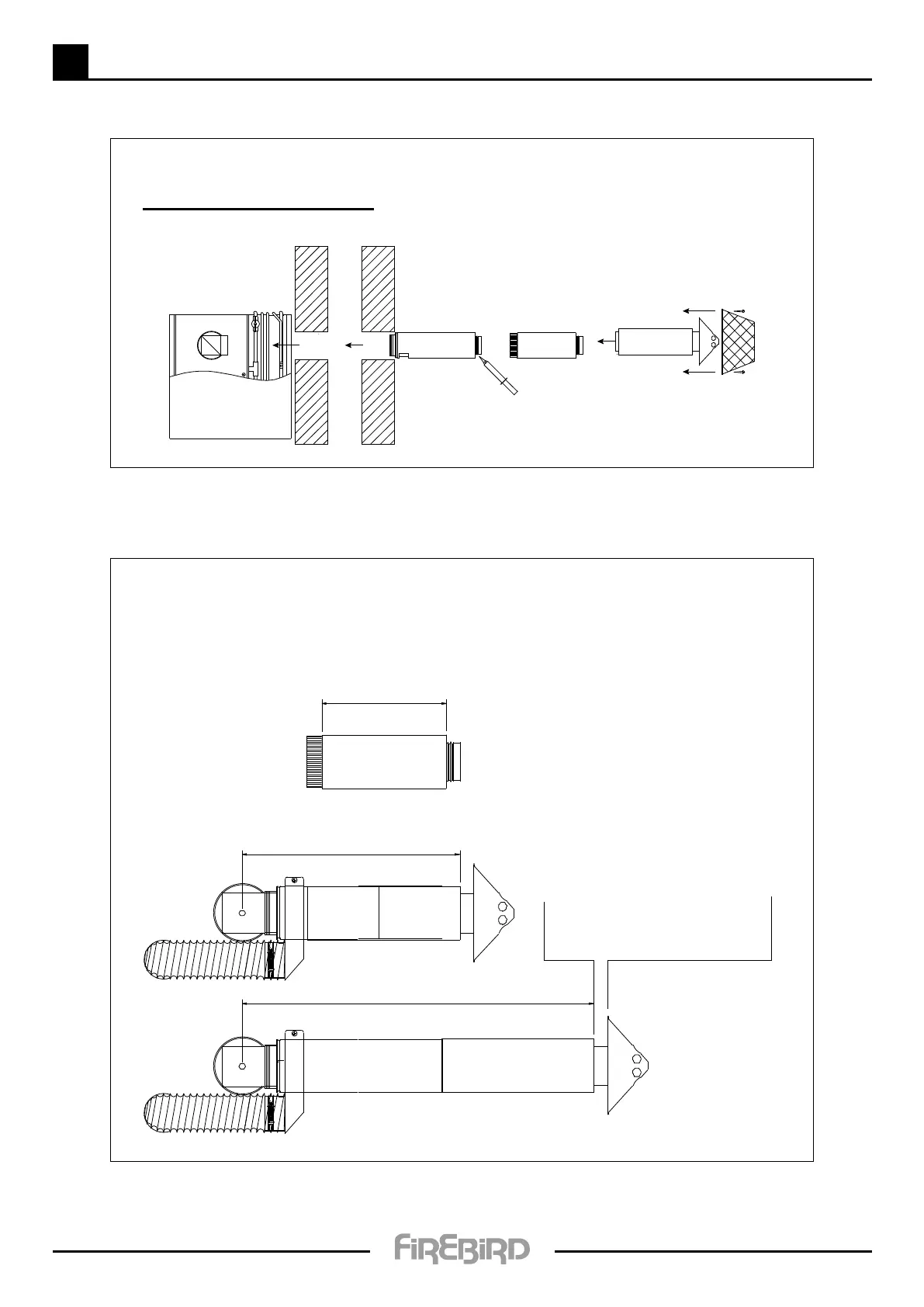

Assembly for Concentric Flue Side Outlet
Secure the ue adaptor
to the boiler and the air
box to the ue pipe.
IMPORTANT:
A 50mm - (2inch) gap must be
left between the cone cowl and
the wall. Ensure Combustion
air pipe protrudes beyond the
outer surface of the wall.
Flue extension for
right hand outlet.
Push the ue pipe through the
125mm hole in the wall.
Apply high temperature sealant to the
O ring on the inner ue pipe to ensure a
positive seal.
Concentric Flue System
5” (125mm) O.D. Concentric Flue
Flue extension
IMPORTANT:
A 50mm - (2 inch) gap must
be left bet ween the cone cowl
and the wall.
INSTALLATION INSTRUCTIONS SUPPLIED WITH FLUE KITS
Flue extension
410
380
610
To Next Page
