FireBird System 90 - Page 18

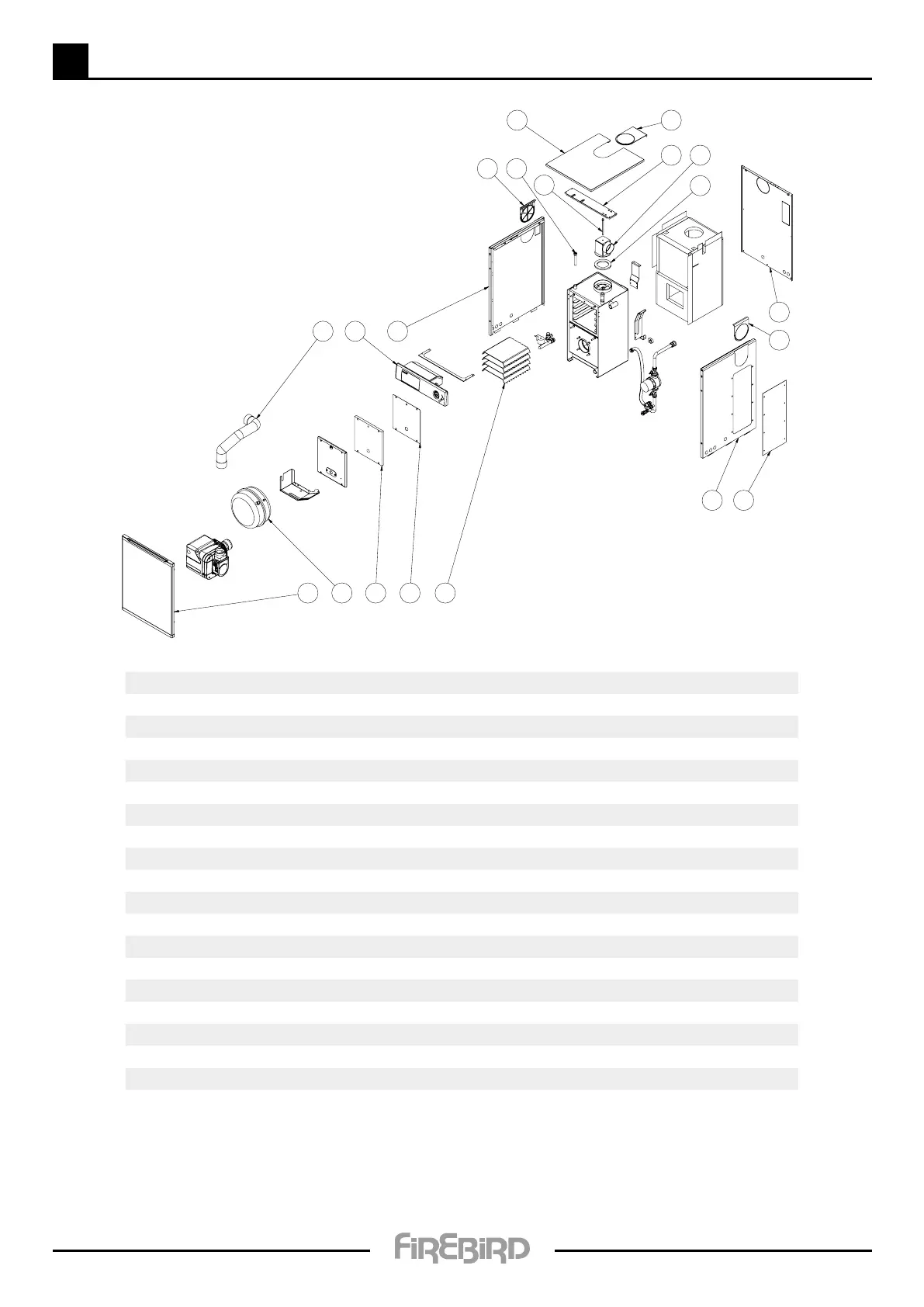

4 4.3 SYSTEM BOILER - TECHNICAL DETAILS
1231914
8 9 12
15
1110
15
18
6
513
4
7
17
16
For burner parts refer to burner manual
No. Qty Description Sales Code
1 4 Smoke baffle 210015
2 1 Door gasket 113015
3 1 Door duroboard 210017
4 1 Bolt M8X150 110437
5 1 Flue elbow adaptor 210249
6 1 Gasket seal 110555
7 1 Stat pocket ACC003PKT
8 1 Air hose ACC000SSH
9 1 Control panel 314734
10 1 Casing left side 214744
11 1 Casing side cover 214748
12 1 Casing right side 214745
13 1 Casing top support 214749
14 1 Casing front 214746
15 2 Side flue blank 114729 + 114730 + 114731
16 1 Casing top 214750
17 1 Top flue blank 114728 + 114729 + 114730
18 1 Casing back 214747
19 1 Expansion vessel 12 litre ACC012PVL
18
SYSTEM 90  26kW BOILER
