Fireboy- Xintex ESC Series User Manual

9
Part Number 18002, G, 09/24/2019

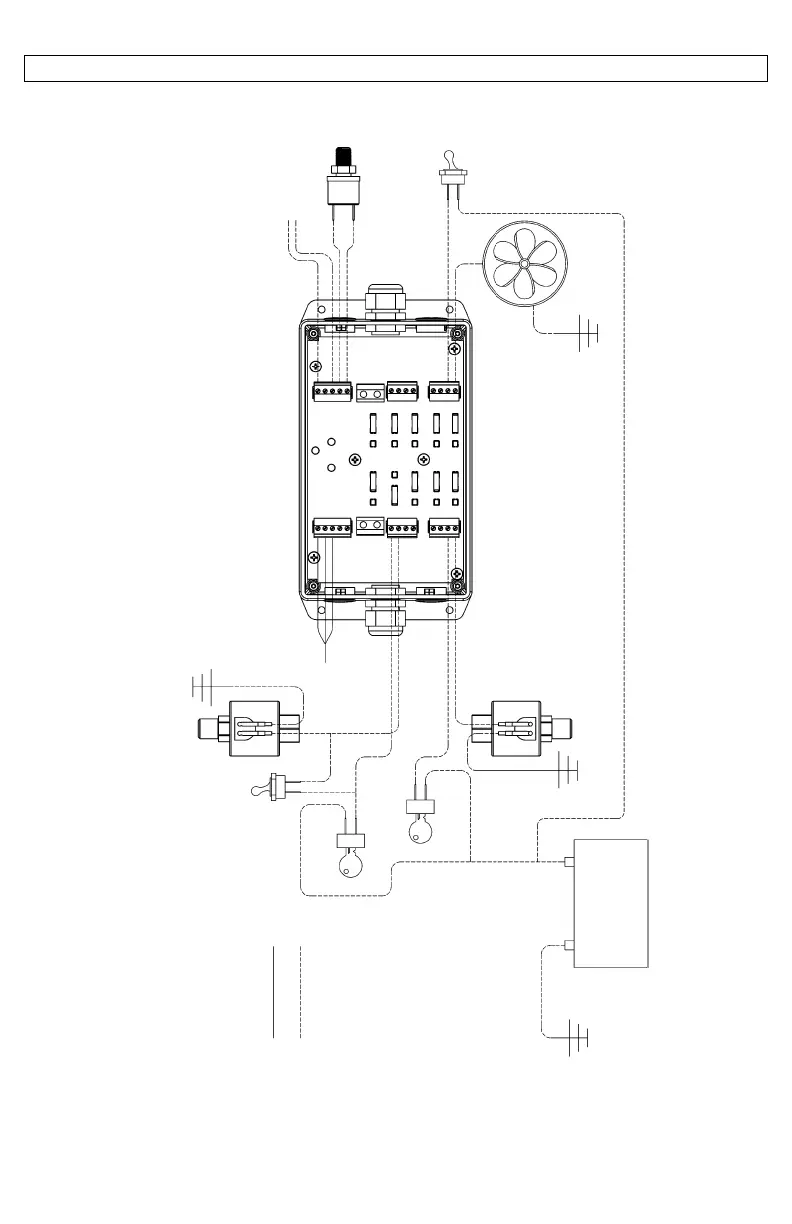

Wiring Example
Ground
Helm Display Wiring
External Wiring
Starboard Engine Ignition
Port Engine
Ignition
-
+
Port Engine Fuel Solenoid
Starboard Engine Fuel Solenoid
Bilge Blower
Blower Switch
Fireboy
Fire Extinguisher
Pressure Switch
To
Helm
Display
V1+
V2+
Gnd
Gnd
PS1
In 2
Out 2
In 5
Out 5
In 6
Out 6
In 9
Out 9
In 10
Out 10
Brown
White
BLACK
Ylw/Aux
PS2/Aux
In 1
Out 1
In 3
Out 3
In 4
Out 4
In 7
Out 7
In 8
Out 8
2 Amp Breaker
Wiring Example
ESC Series
Emergency Stop Switch
