FireClass FC700 Series - Page 10

10/12 Fixing instructions Doc. version 1.0
Panel Accessories FIRECLASS Fire detection system

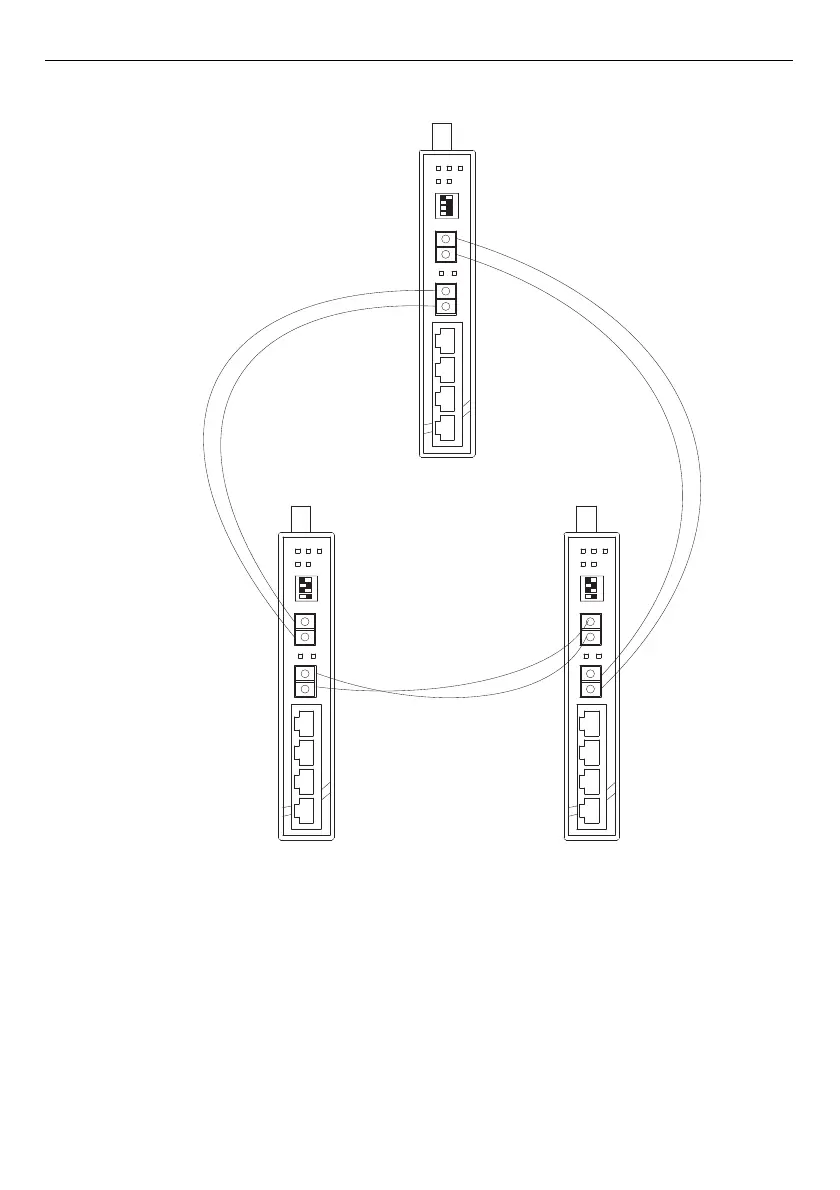

Fig. 7: Example of Ethernet switches configured in a ring topology
ON
1234
ON
1234
ON
1234
Switch 1
Switch 2
Switch 3
