Page 10
Stage 1 (Targeting) is the process of using the
laser to get the infra-red beam close enough to
the reflector so that Alignment can begin.

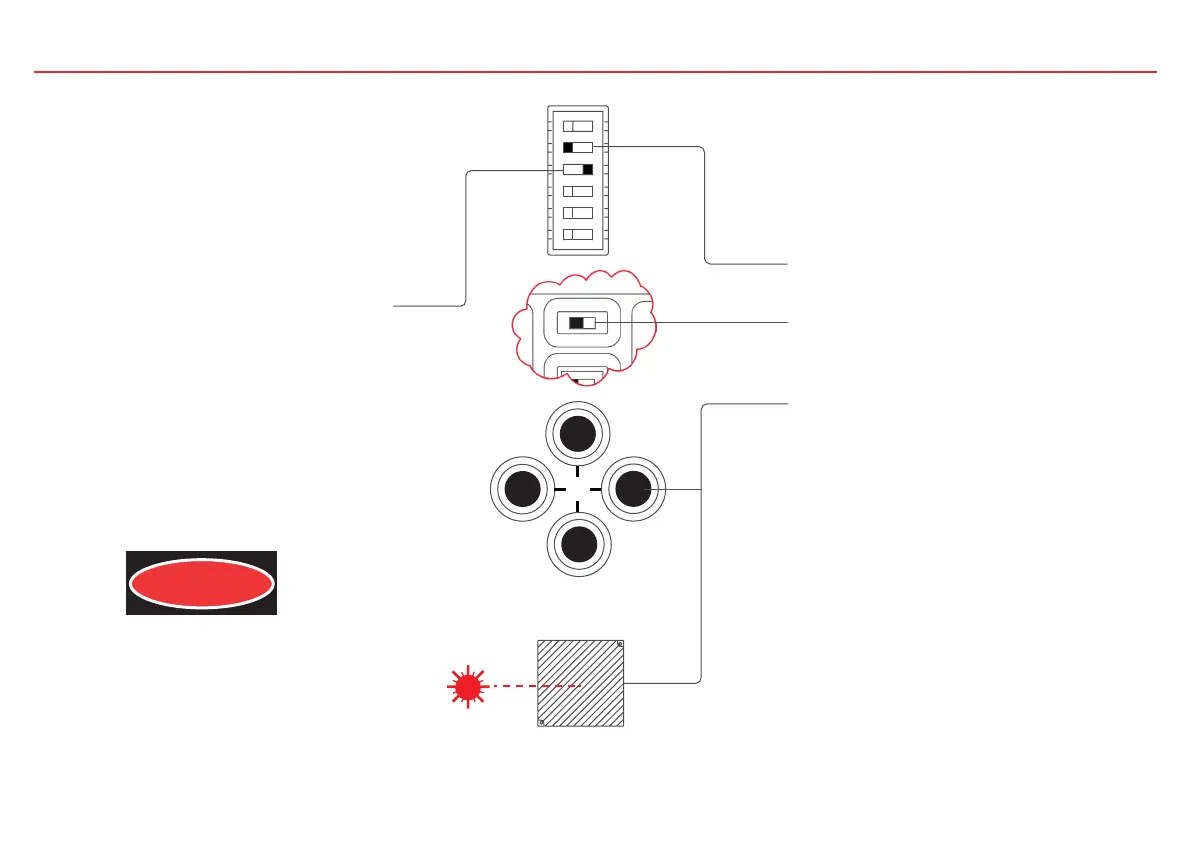

Ensure the targeting setting switch is set to the
left hand position.
To turn the laser on move the slide switch to
the left hand position.
Use the direction keys to move the laser point
on to the Reflector.
If the laser cannot be seen, for example in very
bright environments or over long distances,
then Prism Targeting mode can be used – refer
to the page 12.
Once Targeting is complete, move to Stage 2.
Alignment
Fireray One will align in less than a minute if
Fast Alignment is selected. In this mode, the
current consumption during alignment will be
33mA (it will revert to 5mA when alignment is
completed).
To select fast alignment mode, ensure the fast
alignment setting switch is set to the right hand
position
If lower consumption during alignment is
required, then ensure the Fast Alignment
setting switch is set to Off – consumption will
remain at 5mA but alignment can take up to
15 minutes.
DANGER
LASER RADIATION - AVOID
DIRECT EYE EXPOSURE
POWER OUTPUT < 5mW-
CLASS IIIa LASER
Wavelength 630 - 680 nm
