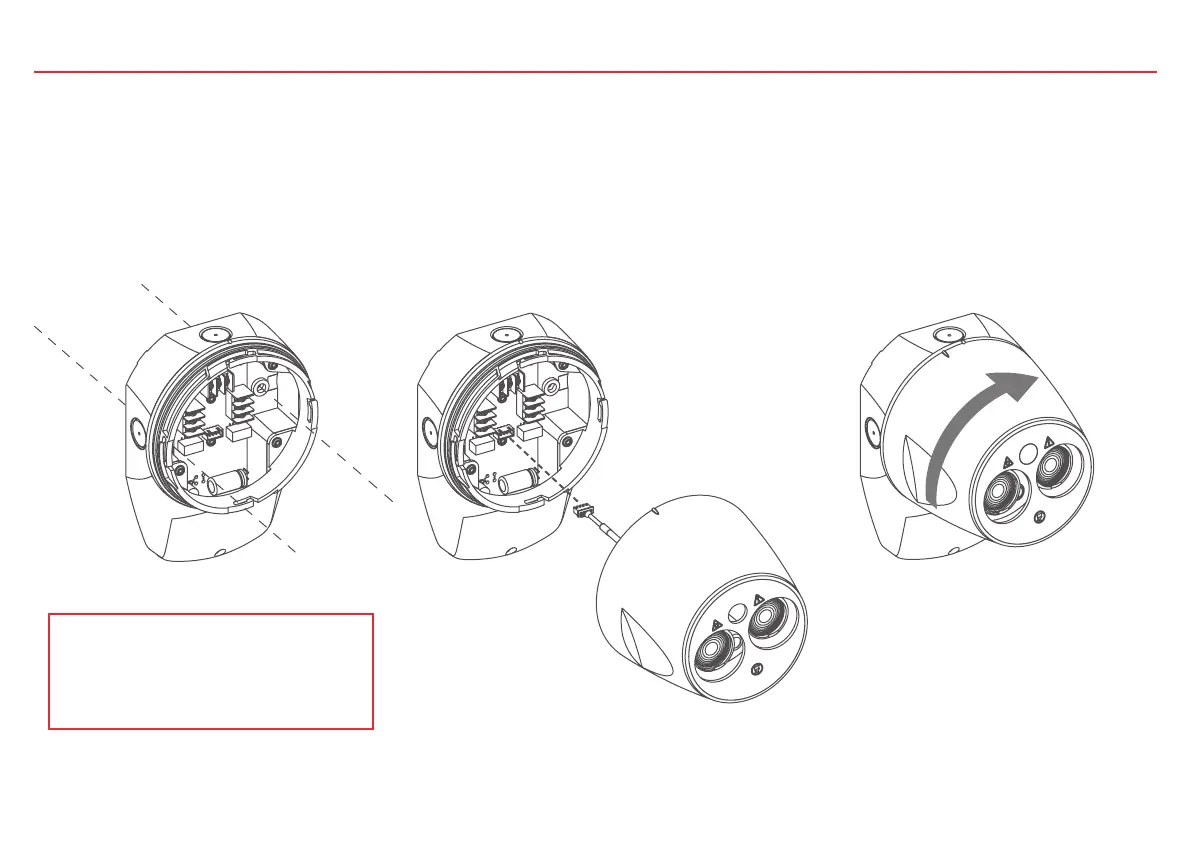

Plug the cable from the Detector head into the
connector on the PCB in the Base.
Mark and drill holes for mounting of Base.
Using appropriate hardware (not supplied)
mount base securely in orientation shown.
Locate the Detector Head on the base. Grip
sides of Detector Head and rotate clockwise
to lock together.
Ensure Base is mounted on solid surface
such as a structural wall or girder. For
mounting accessories please see our
website
Mounting
Mount Base
