Firex CUCIMIX UCBTG AV1 Series - Plant Connection Ubtg034 A_V1

TECHNICAL DATA
02
-
UCBTG.A_V1
-
DIMU
-
00
-
EN
19

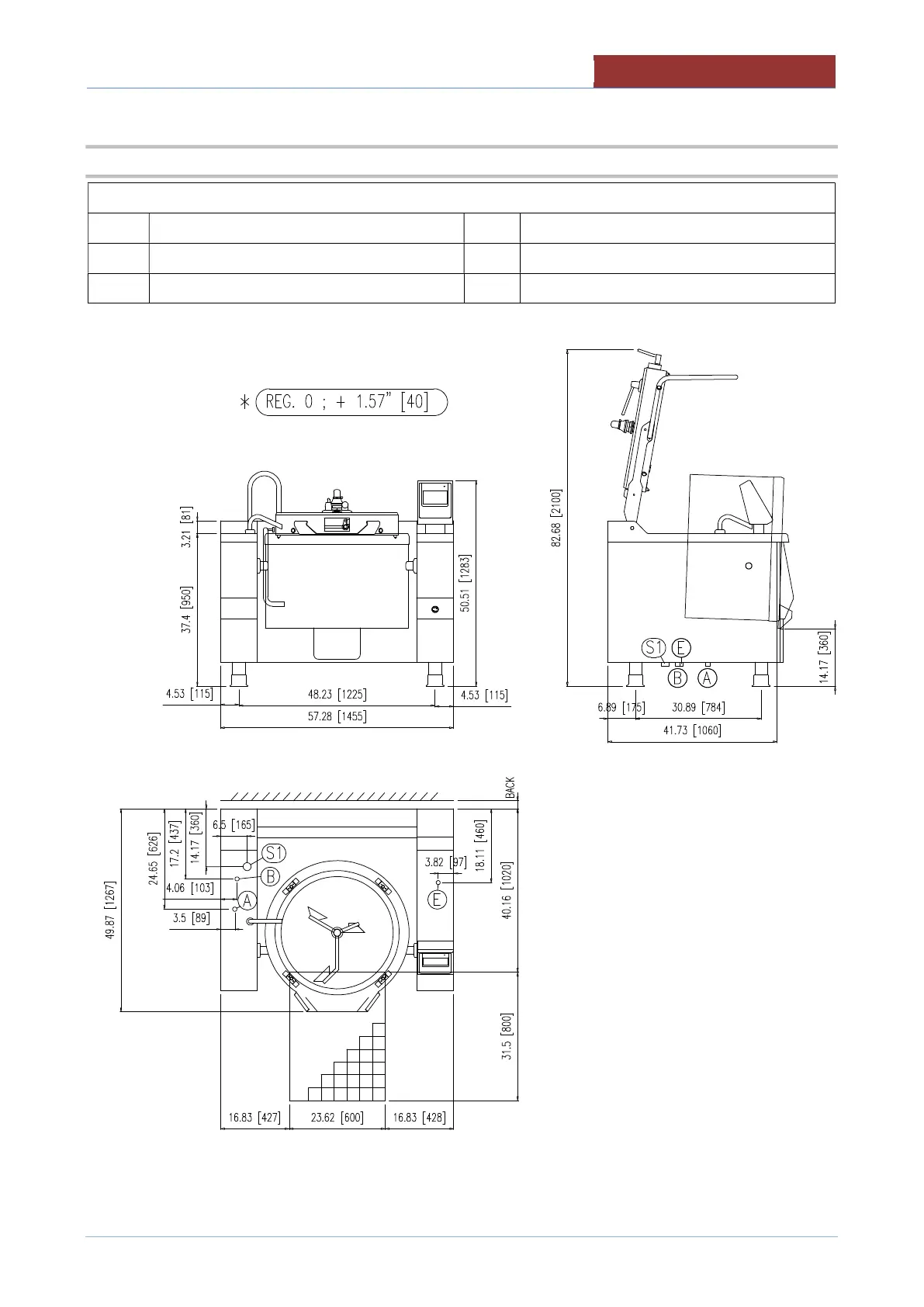

4.2 PLANT CONNECTION UBTG034A_V1
LEGEND:
E Electrical connection (Conduit 1/2”) A Hot water connection
G
Gas connection
B
Cold water connection
BACK
See “CLEARANCE REQUIREMENTS”
S1
Condensate drain
