Firex CUCIMIX UCBTG AV1 Series User Manual

Name: Firex CUCIMIX UCBTG AV1 Series
Brand: Firex
Rating: 4 (1 reviews)

87 pages

To Next Page

To Previous Page

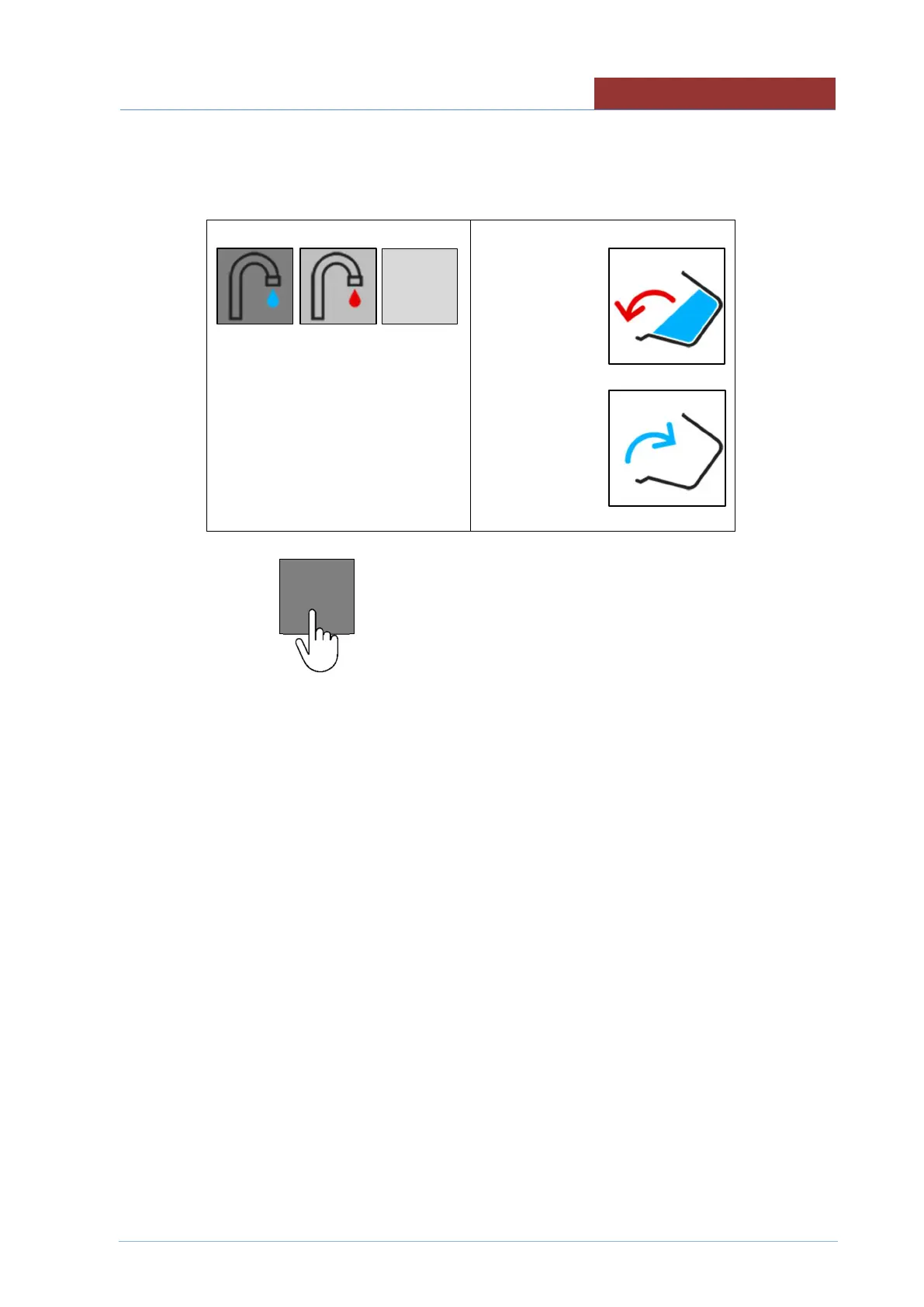

FILLING PAN WITH H2O

UCBTG.A_V1

DIMU

Press the "START" key

120 Lt

0 Lt

120 Lt litres set

10 Lt litres added

If you want to stop filling with water before the number of litres set is reached, press the "START"

key

START

Table of Contents3
Introduction6
Symbols and Pictorials6
General Reminders6
Important Notes for Installation7
Safety8
Overview8
Warnings9
Table of Pan Product Levels12
Pressure Cooking (Safety Warnings)13
Closing the Pressure Cooker Lid14
Opening the Pressure Cooker Lid15
Description of the Machine16
Description16
Materials16
Optional16
Shower for Washing16
Casters16
Operating Parts17
Technical Data18
Technical Data Ucbtg18
Plant Connection Ubtg034A_V119
Plant Connection Ubtg048A_V120
Plant Connection Ubtg082A_V121
Gas Inlet Pressures22
Gas Manifold Pressure; Nozzles;Primary Air Distance22
Transport, Storage, Unpacking25
Transport25
Storage26
Receipt and Unpacking26
Installation27
Installation Codes and Standards27
Requirements for the Installation Site27
Positioning28
Connections29
Electrical Connection29
Water Connection30
Connection to Condensate Drain31
Gas Connection32
Control of the Gas Pressure33
Commissioning and Testing34
Using the Machine35
Touch Screen35
Main Menu36
Settings Menu37
Programs Menu38
Cooking Layout39
Status Bar40
Cooking Area41
Cooking Icons (Meaning)42
Message Column (L)43
Function Column (R)44
Function Bar45
Start-Stop Key for Running Programs45
Extra Key47
Cooking with Delay Timer Key47
Cooking Methods in Detail48
Cooking Cbt48
Setting Setpoint Parameters49
Setting Setpoint Values with the Keypad49
Cooking Parameters Setting51
Setting Cooking Method and Temperature51
Setting Cooking Time52
Creating Programs (Multi-Phase)54
Creating/Deleting Phases54
Message Settings56
Saving a Program60
Edit/ Copy/ Rename Program61
Deleting a Program62
Running a Program/Manual Cooking62
End of Cooking63
Running Programs (Multi-Phase)64
End of Program66
Cooking with Delay Timer67
Filling Pan with H2O68
Filling the Pan with H2O Using a Litre-Counter Device68
Manually Filling the Pan with H2O70
Using the Mixer71
Mixer Settings71
Starting the Mixer (Manual Cooking Program)72
Starting the Mixer (Multi-Phase Program)73
Moving the Pan74
Cleaning and Care76
General Information76
Daily Cleaning76
Mixer Cleaning77
Assembly and Disassembly Vertical Scraper from the Mixer80
Cleaning the Pressure Cooker System82
Cleaning and Checking the Safety Valve82
Precautions in Case of Prolonged Inactivity83
Precautions in Case of Malfunction83
Maintenance83
Maintenance of the Appliance83
Periodic Maintenance84
Display Messages86

Questions and Answers:

Need help?

Do you have a question about the Firex CUCIMIX UCBTG AV1 Series and is the answer not in the manual?

Firex CUCIMIX UCBTG AV1 Series Specifications

General

Brand	Firex
Model	CUCIMIX UCBTG AV1 Series
Category	Commercial Food Equipment
Language	English
