01
-
UDBRG_V1
-
DIMU
-
00
-
EN
TECHNICAL DATA
22
4.9

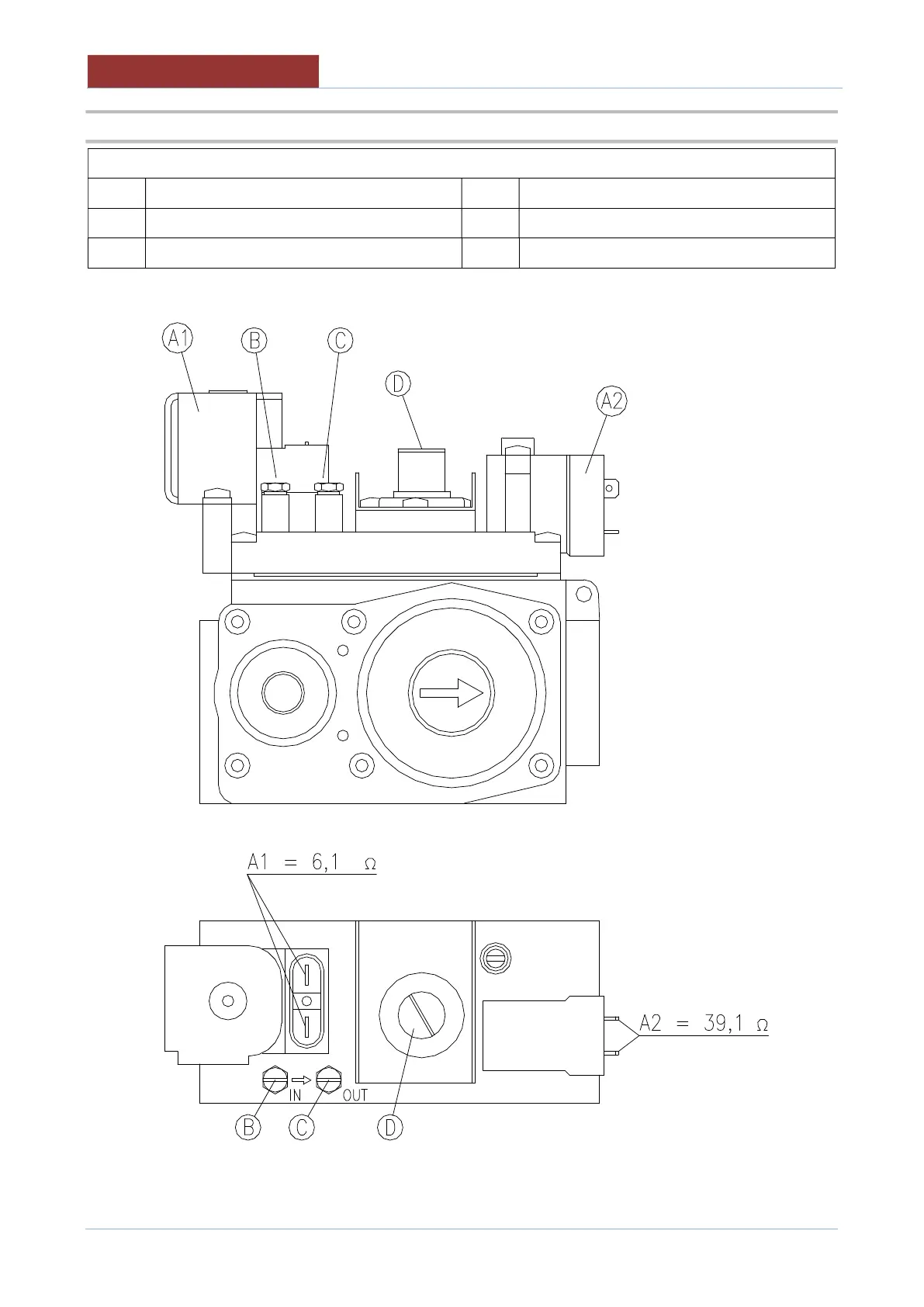

FIG. GAS C
ONTROL VALV
E (822)
LEGEND:
A1
Coil 6,1 Ω (EV1)
C
Out
let pressure intake (manifold pressure)
A2
Coil 39,1 Ω (EV2)
D
Pressure o r
egulator
B
Inlet pressure intake (supp
ly pressure)
21
23
Table of Contents
Table of Contents
3
Introduction
6
Symbols and Pictorials
6
General Reminders
6
Important Notes for Installation
7
Safety
8
Overview
8
Warnings
9
Table of Pan Product Levels
12
Description of the Machine
13
Description
13
Materials
13
Optional
13
Core Probe
13
Shower for Washing
13
Casters
13
Operating Parts
14
Technical Data
15
Technical Data Udbrg
15
Plant Connection Udbrg029_V1 ; Udbrg029-C_V1
16
Plant Connection Udbrg038_V1 ; Udbrg038-C_V1
17
Plant Connection Udbrg048_V1 ; Udbrg048-C_V1
18
Plant Connection Udbrg058_V1 ; Udbrg058-C_V1
19
Gas Inlet Pressures
20
Gas Manifold Pressure; Nozzles;Primary Air Distance
20
Transport, Storage, Unpacking
23
Transport
23
Storage
24
Receipt and Unpacking
24
Installation
25
Installation Codes and Standards
25
Requirements for the Installation Site
25
Positioning
26
Connections
27
Electrical Connection
27
Water Connection
28
Gas Connection
29
Control of the Gas Pressure
30
Commissioning and Testing
31
Using the Machine
32
Touch Screen
32
Main Menu
33
Settings Menu
34
Programs Menu
35
Cooking Layout
36
Status Bar
37
Cooking Area
38
Cooking Icons (Meaning)
39
Message Column (L)
40
Function Bar
42
Start-Stop Key for Running Programs
42
Extra Key
44
Cooking with Delay Timer Key
44
Cooking Methods in Detail
45
Cooking
45
Setting Setpoint Parameters
46
Setting Setpoint Values with the Keypad
46
Cooking Parameters Setting
48
Setting Cooking Method and Temperature
48
Setting Cooking Time
48
Creating Programs (Multi-Phase)
51
Creating/Deleting Phases
51
Message Settings
53
Saving a Program
57
Edit/ Copy/ Rename Program
58
Deleting a Program
59
Running a Program/Manual Cooking
59
End of Cooking
60
Running Programs (Multi-Phase)
61
End of Program
63
Cooking with Delay Timer
64
Filling Pan with H2O
65
Filling the Pan with H2O Using a Litre-Counter Device
65
Manually Filling the Pan with H2O
67
Cooking with Baskets (Mod.dbr
68
Selecting the Cooking Method
68
Selecting Cooking Time
68
Fitting Bars and Baskets
68
Starting Heating
69
Immersing the Baskets
70
Cooking Time (Basket Immersion)
71
End of Cooking/Heating
71
Moving the Pan
72
Cleaning and Care
74
General Information
74
Daily Cleaning
74
Cleaning the Pressure Cooker System
75
Cleaning and Checking the Safety Valve
75
Precautions in Case of Prolonged Inactivity
76
Precautions in Case of Malfunction
76
Maintenance
77
Maintenance of the Appliance
77
Periodic Maintenance
77
Display Messages
79
4
