Natural Gas (NG) Quick Connect Hose Kit Assembly (10 ft)
Thank you for purchasing a FIRMAN product. This manual contains safety information to make
you aware of the hazards and risk associated with this product and how to avoid them. It is
important that you read and understand these instructions thoroughly before attempting to
start or operate this product. Save this manual for future reference.
All information in this publication is based on the latest production information available at the
time of approval of printing. The manufacture reserves the right of change, alter or otherwise
improve this product and this documentation at any time without prior change.

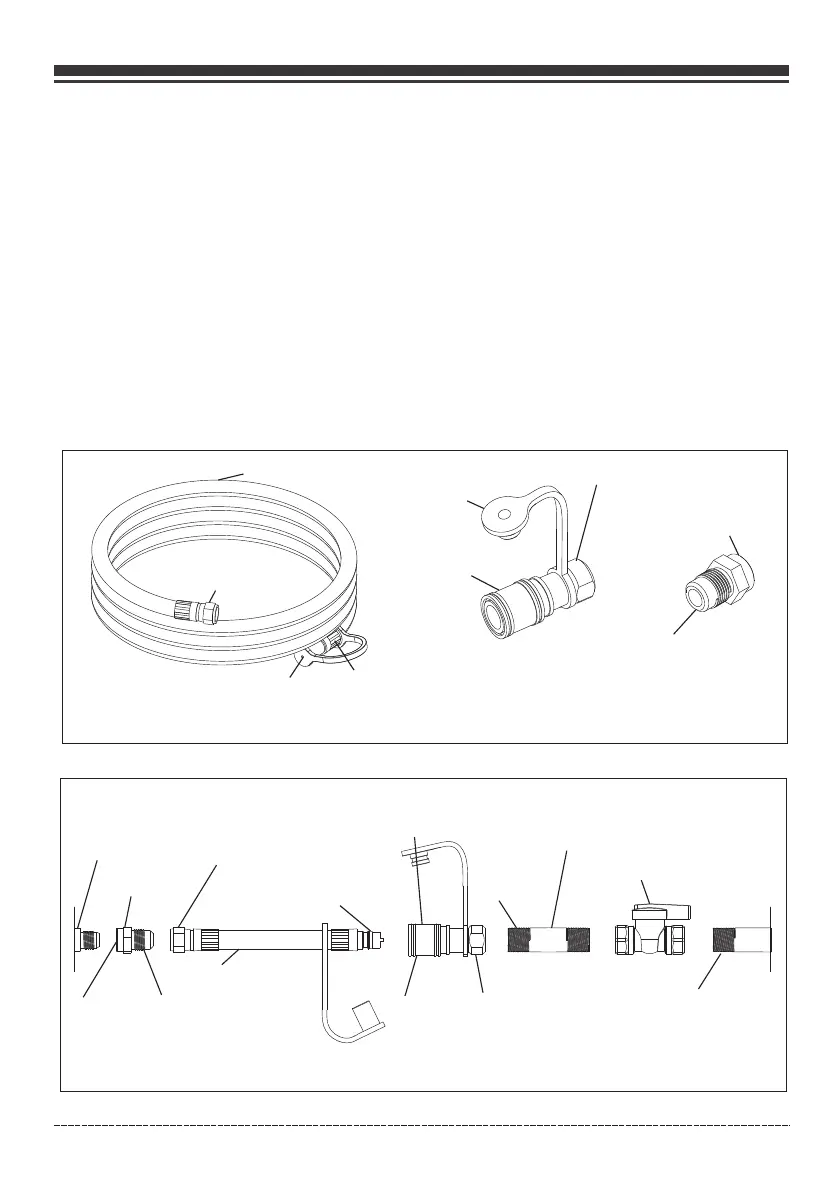

PARTS INCLUDED IN THIS KIT:
A-10 ft. Natural Gas (NG) Hose Assembly with SAE 1/2” Flare Female (Swivel) and Quick Connect
Male (Figure1A).
B-Quick Connect Adapter with 1/2” NPT Female and Quick Connect Female (Socket) Connectors
(Figure1B).
SAE 1/2" Flare
Female (Swivel)
10ft Quick Connect
Hose Assembly
Cap
Quick Connect
Male
Cap
Quick Connect
Female (Socket)
Quick Connect
Adapter
Figure 1
A B
1/2” NPT Female
3/8" Flare Male
Located on
Generator
Figure 2
01
C
Coupling
Quick Connect
Adapter
Quick
Connect
Male
(Plug)
Quick
Connect
Female
(Socket)
1/2" NPT
Female
House NG
Piping
Coupling
SAE 1/2" Flare
Male
SAE 3/8" Flare
Female
C-Coupling with SAE 1/2" Flare Male and SAE 3/8" Flare Female (Figure1C).
SAE 3/8"
Flare
Female
SAE 1/2"
Flare
Male
SAE 1/2"
Flare
Female
10ft NG Hose
1/2" NPT
Male
Pipe Nipple
NG Shut Off Valve
1/2" Hose
To Next Page
