AC Input
TheACinputportisfoundontheleftsideoftheterminal(under
theplasticcover).ToconnectyourpoweradaptertotheFD400
Ti
lifttheplasticcoverandinserttheconnectorintotheACport.
Note:Themini-USBconnectorabovetheACpowerinputportis
notformerchantuse.
Getting to know the
FD400
Ti
Terminal

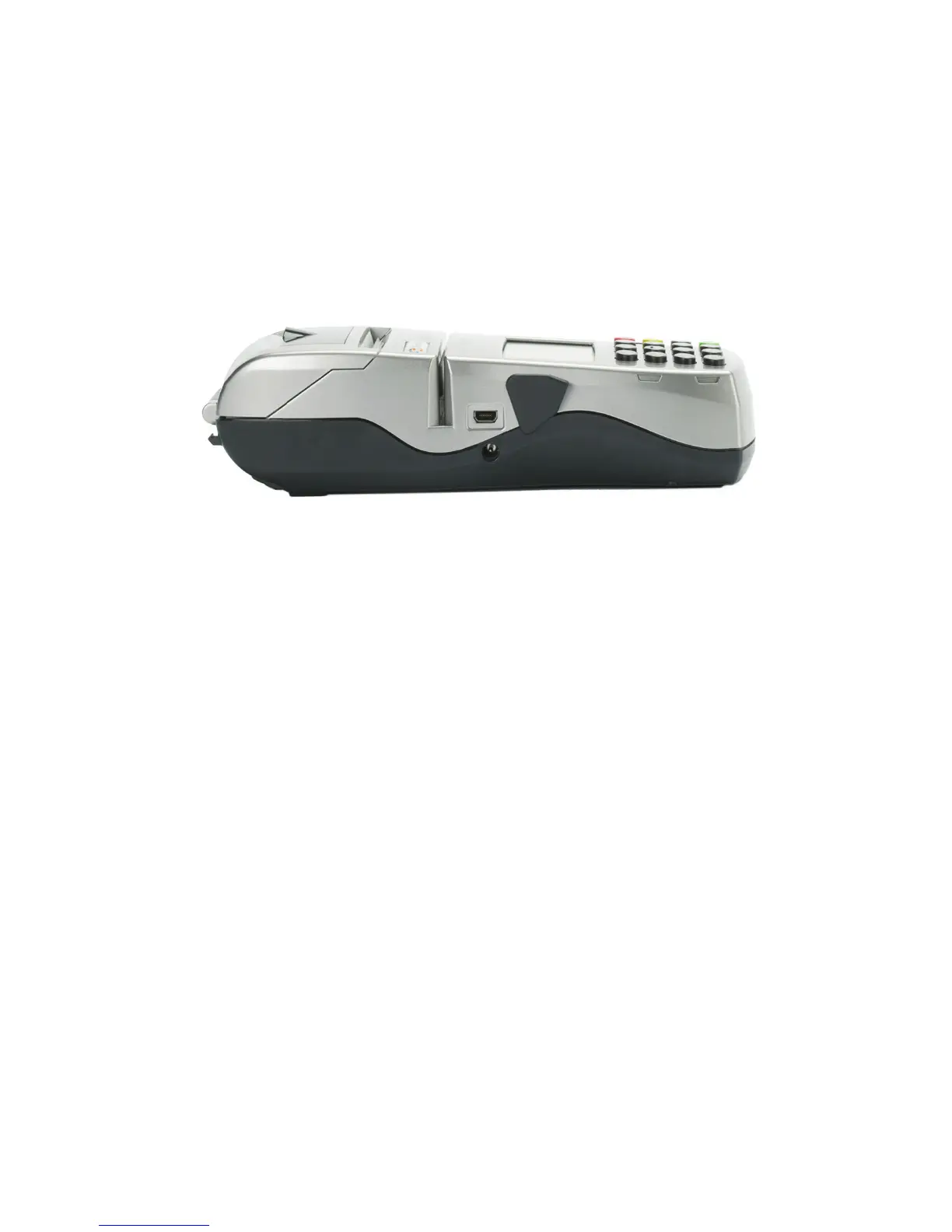

Therearetwoportsundertheplasticcoverontheleftside
ofterminal.
Adapter spec:LISHININT./LSE0107A1240
Input:100–240Vac,50/60Hz1AOutput:12Vdc,3.33A
Operating Temperature:0°Cto40°C
Battery pack:CHENGUEI/FD-4007.4V,2.3Ah
Car Charger:EDACPOWERELECTRONICSCO.,LTD./ED1025
Input:11–16Vdc,5AOutput:12Vdc,2.5A
RTC Battery:3V,CR2032
Caution:Riskofexplosionifthebatteryisreplacedbyanincorrecttype;useonlythe
sametypeofbatterytoprotectagainstfire.Pleasedisposeofusedbatteryaccording
tolocalregulations.
Caution:UseonlyshieldedsignalcablestoconnectI/Odevicestothisequipment.
Youarecautionedthatchangesormodificationsnotexpresslyapprovedbytheparty
responsibleforcompliancecouldvoidyourauthoritytooperatetheequipment.
Warning:ThisisaClassAproduct.Inadomesticenvironmentthisproductmaycause
radiointerferenceinwhichcasetheusermayberequiredtotakeadequatemeasures.
3
