Fisher & Paykel 9 Series - Cabinetry Dimensions - 600 Mm Minimal (Tall) Model

11

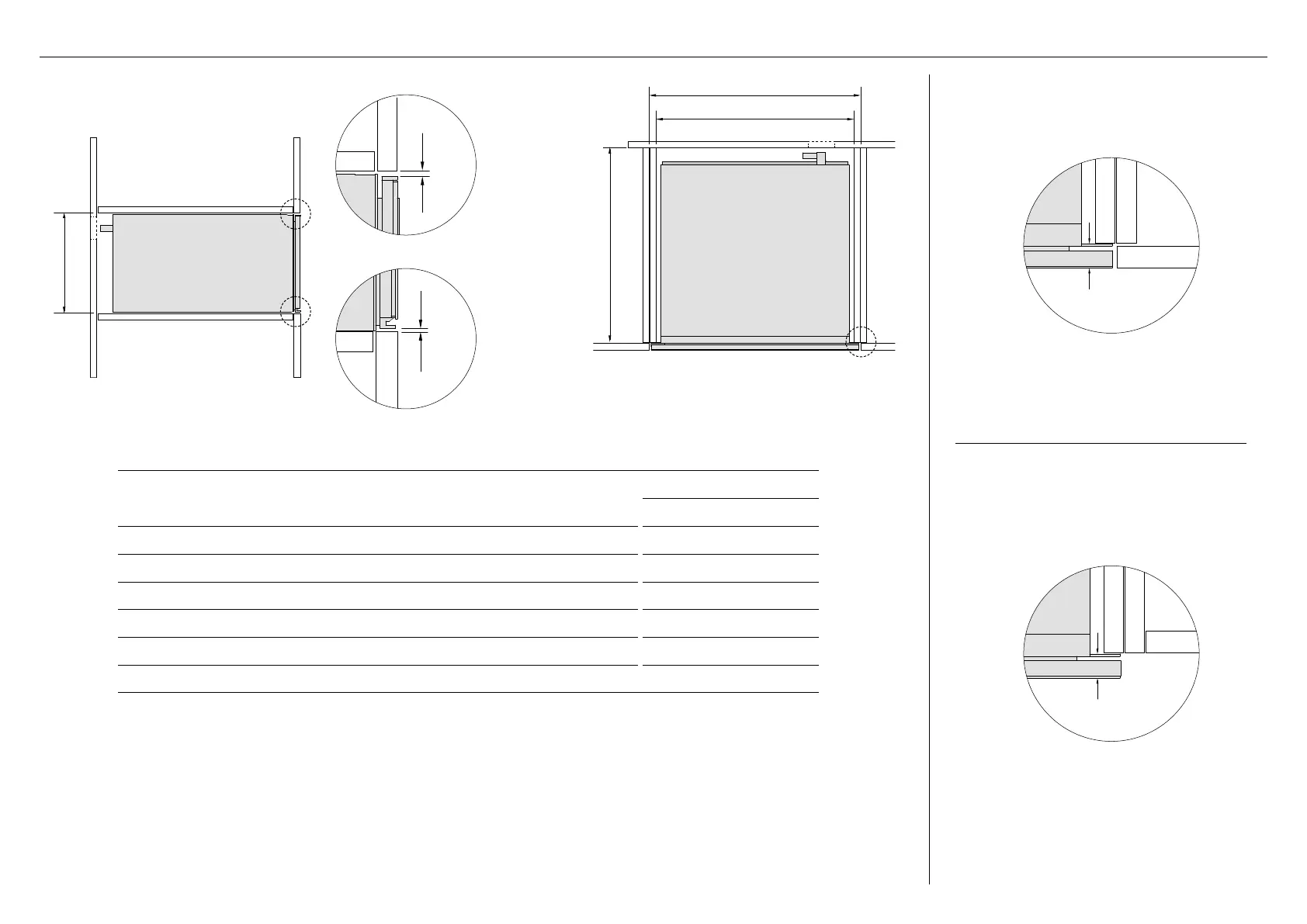

CABINETRY DIMENSIONS - 600MM MINIMAL (TALL) MODEL
PROUD INSTALL
FLUSH INSTALL
Actual product dimension may vary by ± 2 mm.
CABINETRY DIMENSIONS
WB60SDT
MM
A Minimum inside height of cavity 292
B Minimum inside width of cavity 560
C Minimum inside depth of cavity 572
D Overall width of cabinetry 600
E Minimum clearance between top of front panel and upper cabinetry panel 3
F Minimum clearance between bottom of front panel and lower cabinetry panel 2
* The power outlet (PO) must be earthed and located within 900mm of the centre rear of the product.
PLAN
c
b
d
PO*
a
PROFILE
PO*
e
f
13/16 (20mm)
13/16 (20mm)
