Fisher & Paykel 9 Series Installation Guide

8

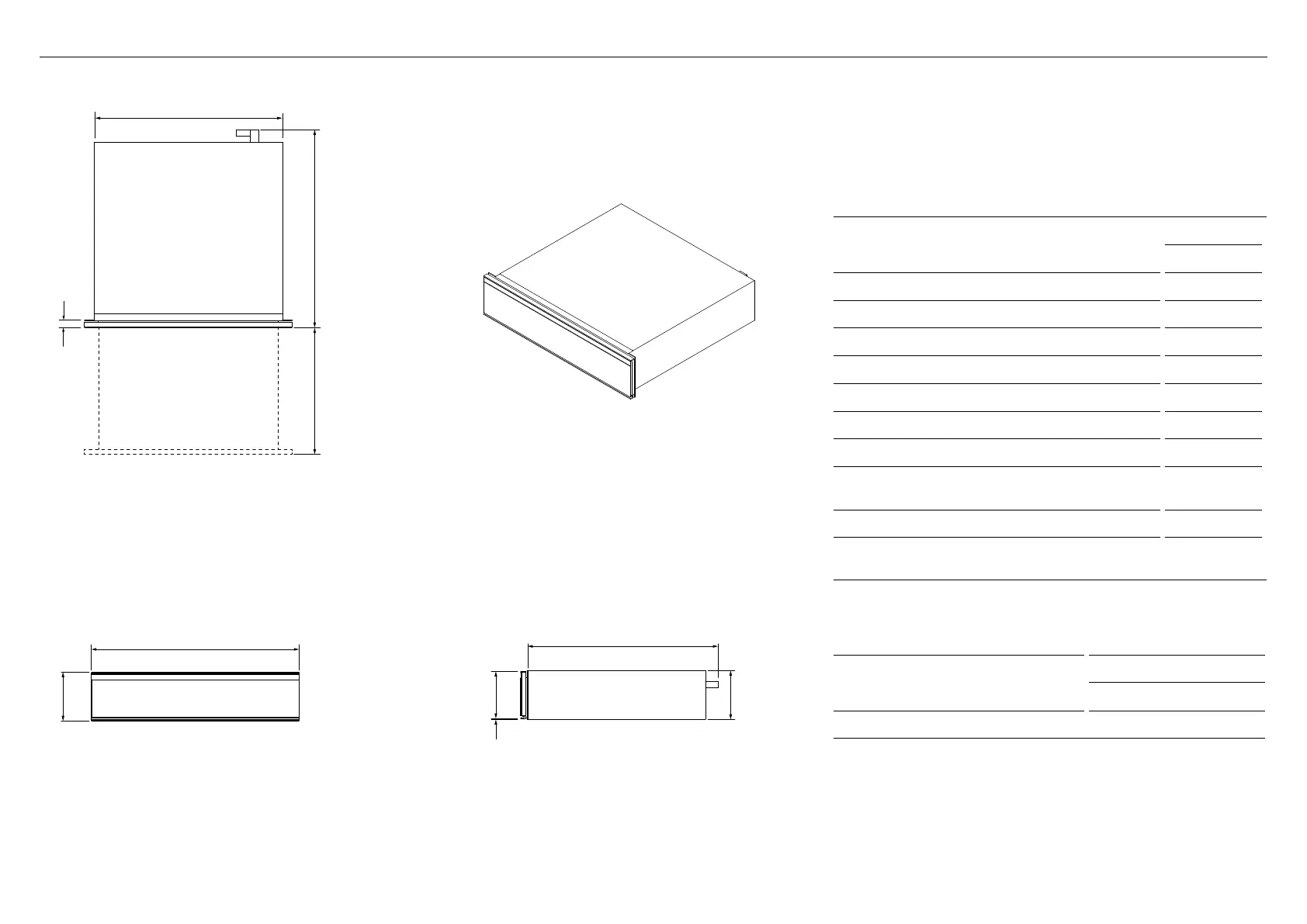

PRODUCT DIMENSIONS - 600MM MINIMAL & CONTEMPORARY MODELS
C
i
h
E
PLAN
ISOMETRIC
FRONT
B
A
PROFILE
D
G
F
j
Actual product dimension may vary by ± 2 mm.
PRODUCT DIMENSIONS
WB60SDE
MM
A Overall height
140
B Overall width
596
C Overall depth*
567
D Height of chassis 140
E Width of chassis 543
F Depth of chassis** 547
G Height of drawer front panel 136
H Depth of drawer front panel and attachment
flange
20
I Depth of open drawer 414
J Height from bottom of chassis to bottom of
front panel
2
* Including drawer front panel and power plug
** Including power plug
PRODUCT WEIGHT
WB60SDE
KG
Total weight of drawer* 22
*including packaging
