Installation instructions
The thermal protection barrier must be:
removable
heat-resistant
made from low thermal conductivity material
at least 40 mm (CE604) or 20 mm (CE302) below the base of the cooktop to ensure adequate
ventilation
40 mm
min
Thermal protection barrier

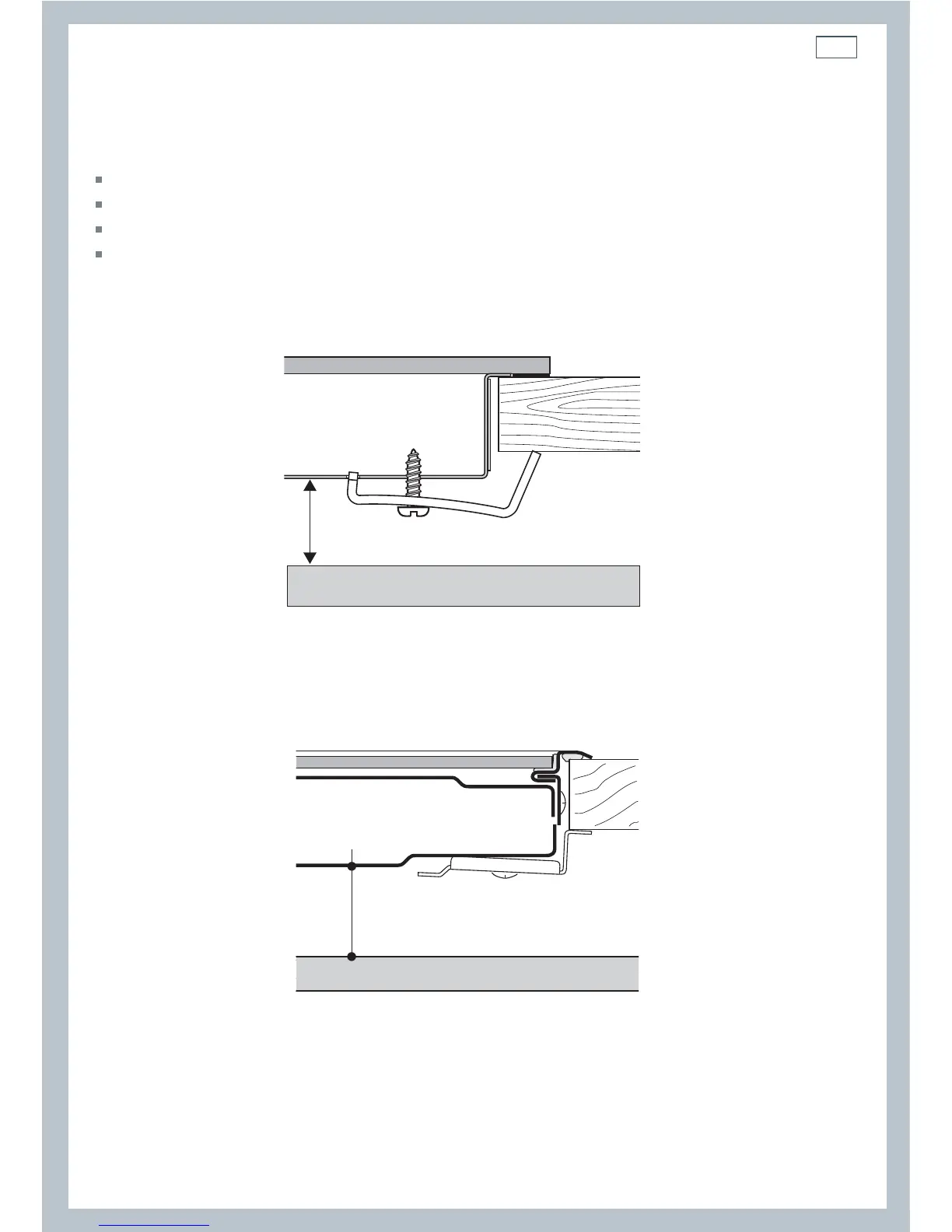

Fig. 1b Minimum clearance below cooktop base - CE604 models
< Fresh air from
outside the
cabinetry
20 mm min.
Fig. 1a Minimum clearance below cooktop base - CE302 models
< Fresh air from
outside the
cabinetry
Thermal protection barrier
