Fastening the cooktop to the bench (CE302 models)
1
Turn the cooktop upside down and place it on a soft surface.
2
Spread the seal around the edges of the ceramic glass with the adhesive side facing down,
making sure that the whole perimeter is sealed. Cut off any excess material.
3
Mount the supplied clamps (A) and screws (B) onto the cooktop, as shown (without tightening
the screws).
4
Place the cooktop into the cutout, then tighten the screws to clamp the cooktop securely to the
bench.
5
Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge of the
cooktop. Take care not to damage the benchtop.
Note: if your bench is thicker than 40 mm, recess the underside to between 30 and 40 mm.
Installation instructions
A
A
A
A
B
B
B
B
Adhesive side

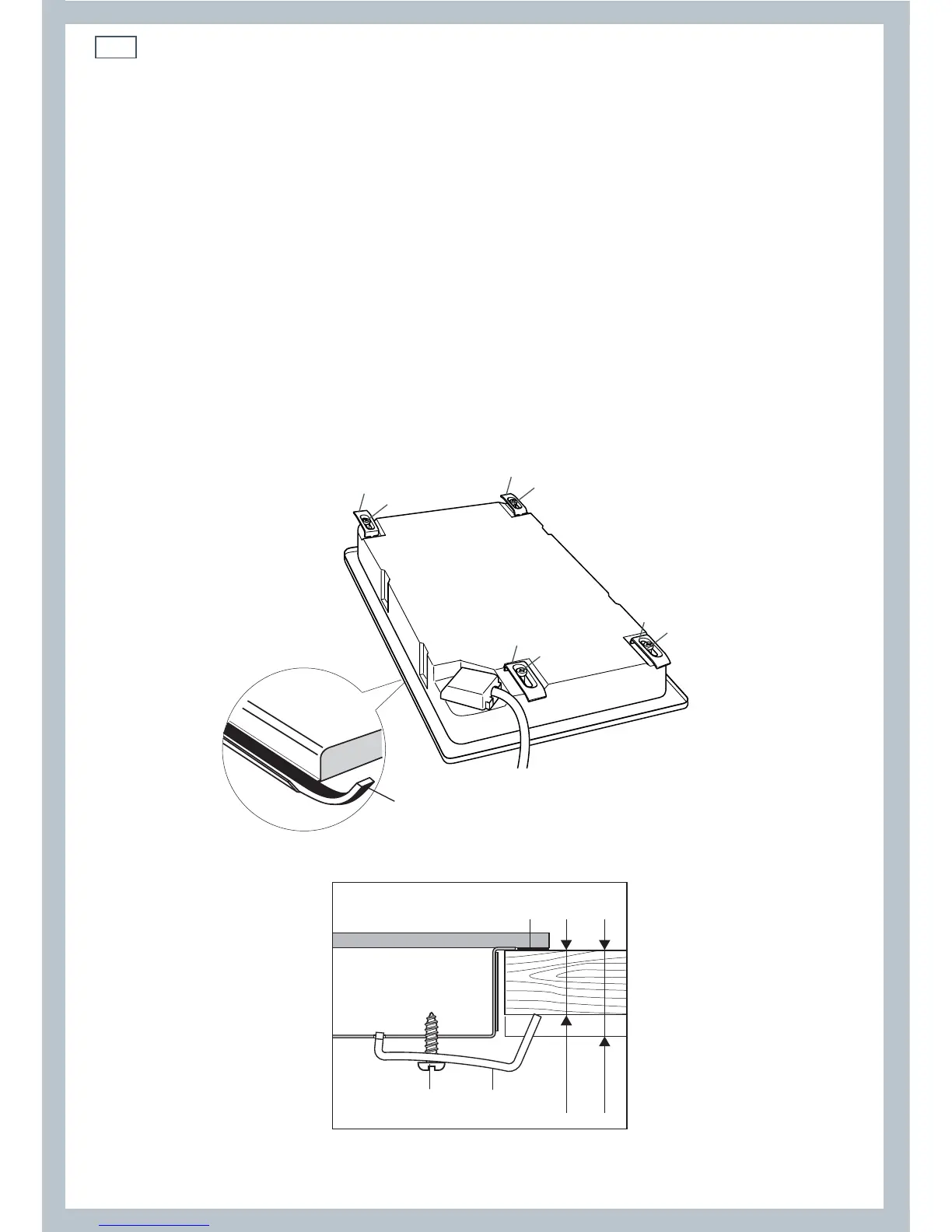

Fig. 3 Fastening the cooktop to the bench
Fig. 2 Preparing the cooktop
before installation
30 mm min.
40 mm max.
A
B
Seal
