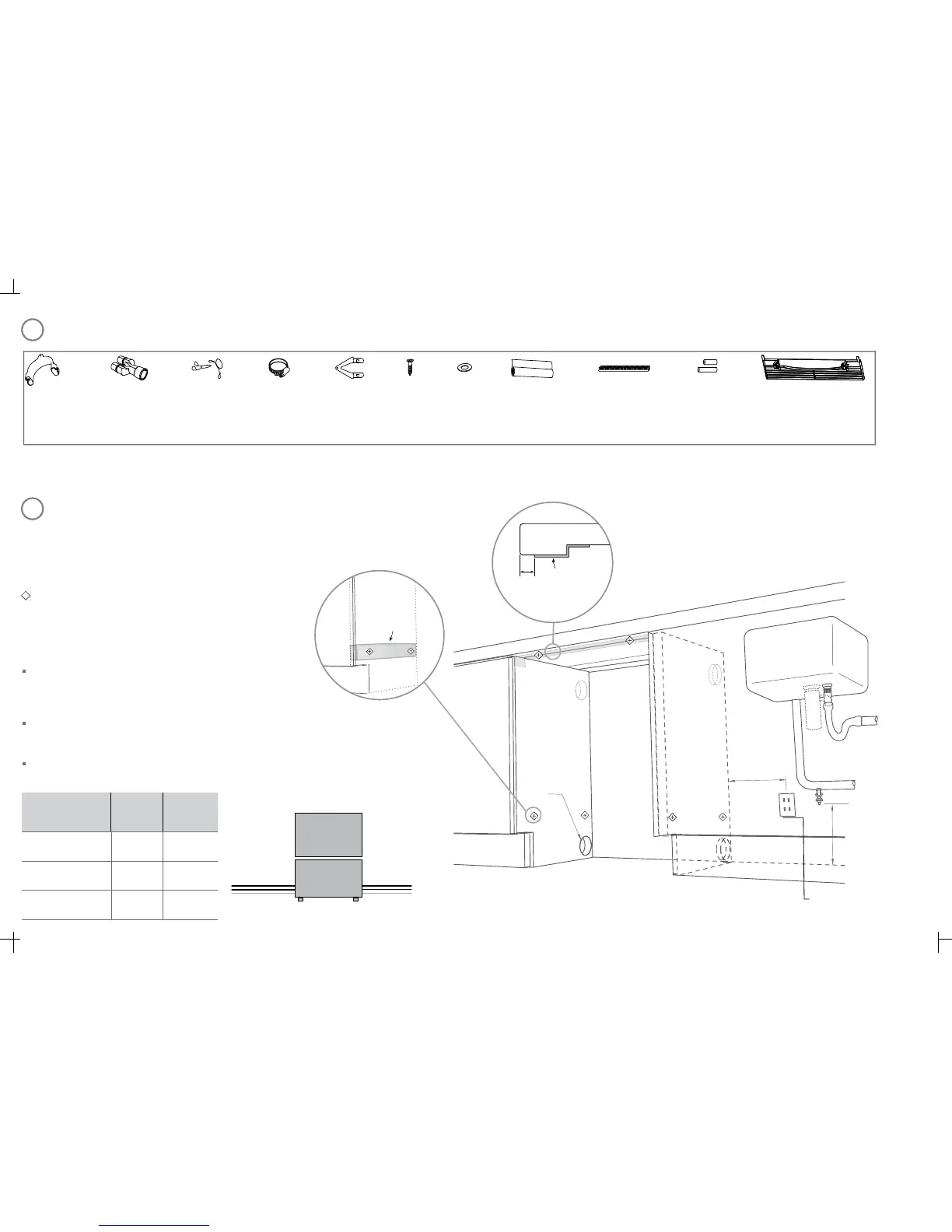

PARTS SUPPLIED
Clamp (1)
Wire clip (2)
Phillips
16 mm
screws (9)
Drain hose
support (1)
Moisture protection
tape (1)
(to prevent moisture
damage)
Drain hose
joiner (1)
Top
mounting
brackets (2)
Prefinished toekick (1)
white or black
Washer (1)
Edge protector (1)
(if services hole
partition is metal)
Hexagonal
socket (2)
(long & short)
4
2” x 4”
If the Drain hose(s) supplied are not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hose(s) by 11’ 10” (3.6 m). The kit is available from the nearest
Fisher & Paykel Authorized Service Agent, or Toll free 1.888.936.7872 or www.fisherpaykel.com.
Important!
Be sure the edges of the services hole are smooth or covered. If the services
hole is through a metal partition the hole must be protected with the Edge
protector supplied to prevent damage to the power cord or hoses.
These marks indicate mounting bracket screw locations
Preferred position. If adequate clearance, services hole can be
higher to clear toekick space.
If hole is higher, ensure drain hose(s) are routed straight into the
waste connection.
Water Connection
Recommended HOT (Maximum 140°F/60°C).
Supplied hose to suit 3/8” (9 mm) male compression fitting.
*
110-120 VAC
max. 15 A
Note: Services can be located
either side of DishDrawer®.
max. ø
1 ½ ”
(
38 mm)
*
*
min.
7 ⁄”
(
200 mm)
⁄”
(
10 mm)
max.
17 ⁄”
(
450 mm)
If no side partition, use a
brace for securing.
Moisture
protection
tape must
be applied.
CAVITY PREPARATION
5
Water Pressure Max Min
Water softener models 1 MPa (145 psi) 0.1 MPa (14.5 psi)
Other models 1 MPa (145 psi) 0.03 MPa (4.3 psi)
Drains will need to be separated to satisfy kosher requirements. We suggest you confirm
acceptability with your local rabbi in respect to kosher installations.
Max. distance of
hoses and cord from
chassis edge
Left hand
side
Right hand
side
Drain hose
78 ½ ”
(2000 mm)
70 ½ ”
(1800 mm)
Inlet hose
64 ¾ ”
(1650 mm)
49”
(1250 mm)
Power cord (excl. plug)
29 ½ ”
(750 mm)
27 ½ ”
(700 mm)
Left hand
side
Right hand
side
Water supply
