Fisher & Paykel DD24SCX7 Installation Instructions

11
9a
9b

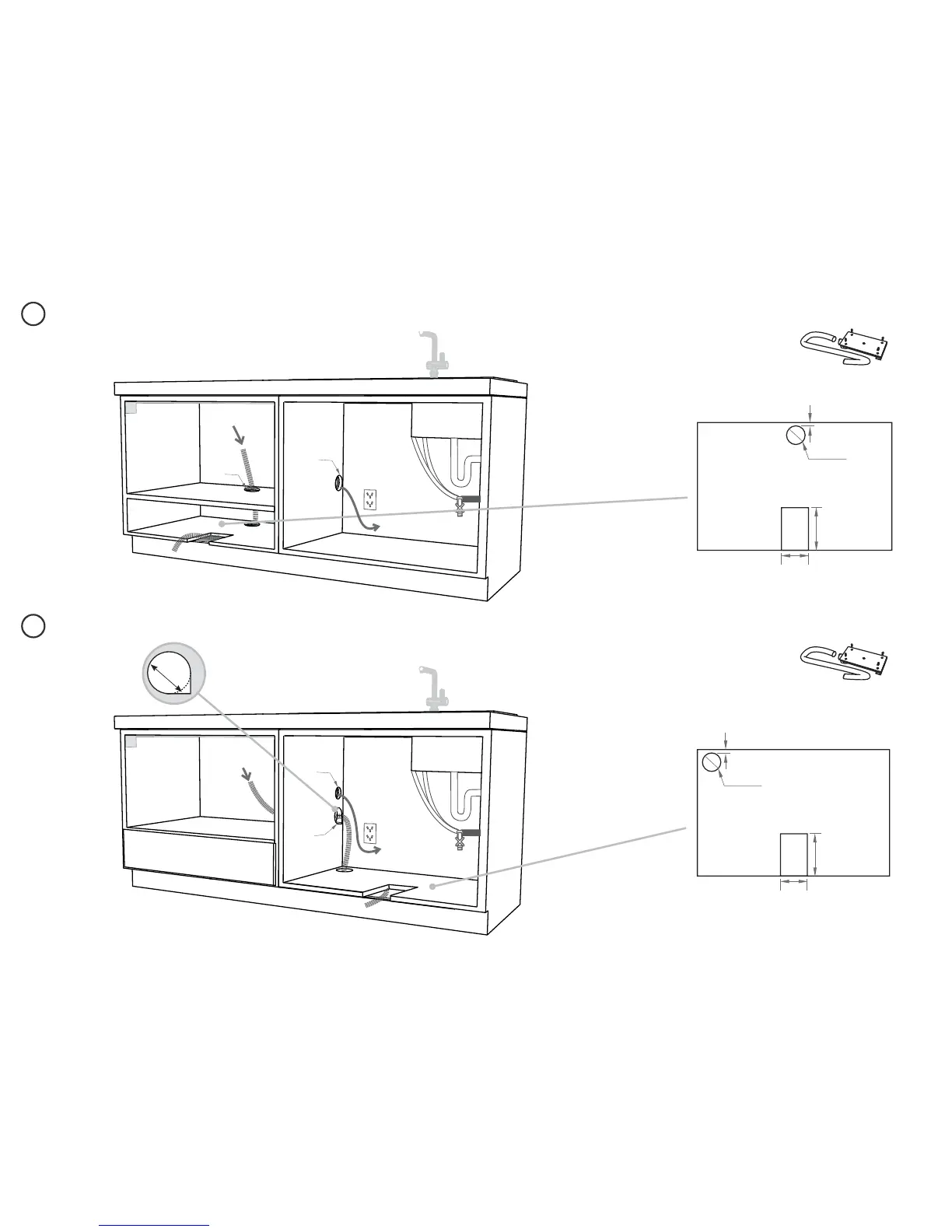

INTEGRATED MODELS ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH SAME CABINET
INTEGRATED MODELS ONLY - PREPARATION FOR EXTERNAL VENTING THROUGH ADJACENT CABINET
ø 2 ⁄” (60 mm)
ø 2 ⁄” (60 mm)
max. ⁄” ( 5 mm)
max. ⁄” ( 5 mm)
8 ⁄” (220 mm)
8 ⁄” (220 mm)
4” (100 mm)
4” (100 mm)
ø 2 ⁄”
60mm
Services can be located
either side of dishwasher
VENT HOSE
VENT HOSE
+ DRAIN HOSE
+ INLET HOSE
POWER CORD
DRAIN HOSE + INLET
HOSE + POWER CORD
Services can be located
either side of dishwasher
Shelf cutouts
Shelf cutouts
The ø 2 ⁄” (60 mm) services hole
for the hoses should be enlarged
to accomodate the extra venting
hose by cutting out some material
from the bottom corner.
If the services holes are
through metal, ensure
you  t the supplied Edge
Protector around the hole
for the power cord.
External Venting kit (1)
External Venting kit (1)
ø 2 ⁄” (60 mm)
ø 2 ⁄”
(60 mm)
ø max. 1½ ” (38 mm)
ø max. 1½ ”
(38 mm)
