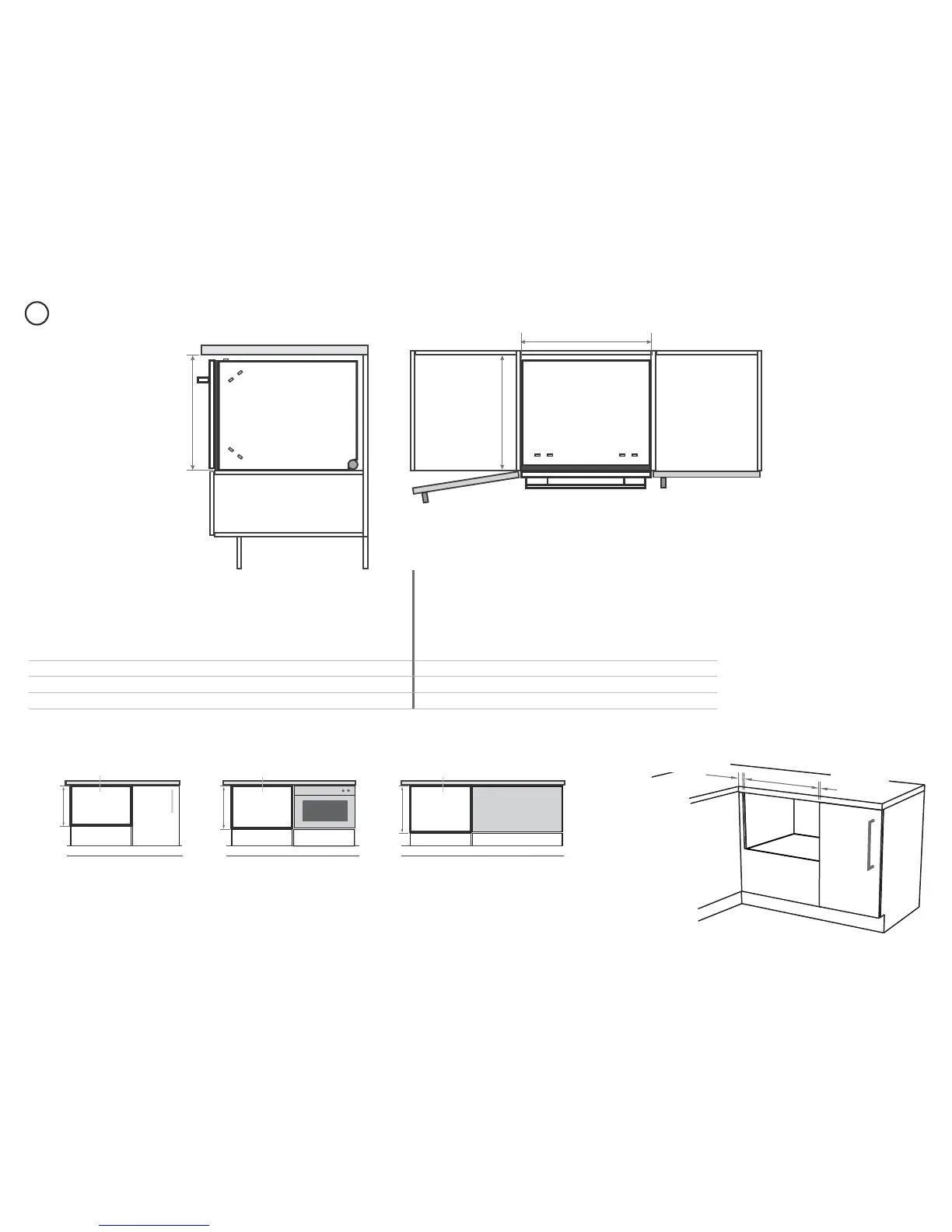

CABINETRY DIMENSIONS
Plan
Side
L
N
M
Minimum clearances from adjacent cabinetry
Cabinetry dimensions inches (mm)
STANDARD HEIGHT MODELS TALL HEIGHT MODELS
Classic
Designer
Integrated
Classic
Designer
Integrated
18”
(456 mm)
cavity
Integrated
18 ⁄”
(480 mm)
cavity
L
inside height of cavity min. 16 ¼ ”(412) min. 16 ¼ ”(412) min. 16 ¼ ”(412) 18”(456) 18 ⁄”(480) 18”(456) 18 ⁄”(480)
M
inside width of cavity 23 ⁄”(600) 23 ⁄”(600) 23 ⁄”(600) 23 ⁄”(600) 23 ⁄”(600) 23 ⁄”(600) 23 ⁄”(600)
N
inside depth of cavity min. 22 ⁄”(560) min. 22 ⁄”(560) min. 22 ⁄”(560) min. 22 ⁄”(560) min. 22 ⁄”(560) min. 22 ⁄”(560) min. 22 ⁄”(560)
min. ½ ” (13 mm)
clearance from a
corner cupboard
min. ⁄” (2 mm)
clearance
to adjacent
cupboard door
min.
16 ¼ ”
(412 mm)
18 ⁄”
(480 mm)
18 ”
(456 mm)
L
LL
Dishwasher Dishwasher Dishwasher
Standard height models
Tall height Classic models
Tall height Integrated models
Oven
CoolDrawer
Tall height Designer models
Cavity height options allow you to match dishwasher with your cabinetry or companion products
You may choose to install Tall height Integrated
models into either a 18” (456 mm) or a
18 ⁄” (480 mm) high cavity.
Note: the minimum height of the custom drawer front
panel will also be different for these two options.
