8
The following calculations assume the top of the panel is aligned
with the top of the adjacent cabinetry:
WIDTH OF THE PANEL
Measure
A (
the width between adjacent door/drawer fronts)
and write it in the rst box below, then complete the equation.
HEIGHT OF THE PANEL
Measure
B
and write it in the rst box below, then complete
the equation.
min. ⁄” (2mm) ventilation
gap with external venting
kit installed
min. ⁄” (2mm) ventilation gap with
external venting kit installed
WIDTH OF PANEL
HEIGHT
OF PANEL
A
B
A
B
clearance to
adjacent cabinet
front
(min. ⁄” (2 mm))
ventilation gap
(min. ⁄” (2 mm))
HEIGHT OF PANEL
- 2x
-
=
=
FRONT PANEL SPECIFICATIONS
⁄- ⁄” (16-20 mm) panel thickness
Adequately sealed to withstand moisture (122
O
F/ 50
O
C @ 80% RH)
Maximum weight of panel: 20 lb (9 kg)

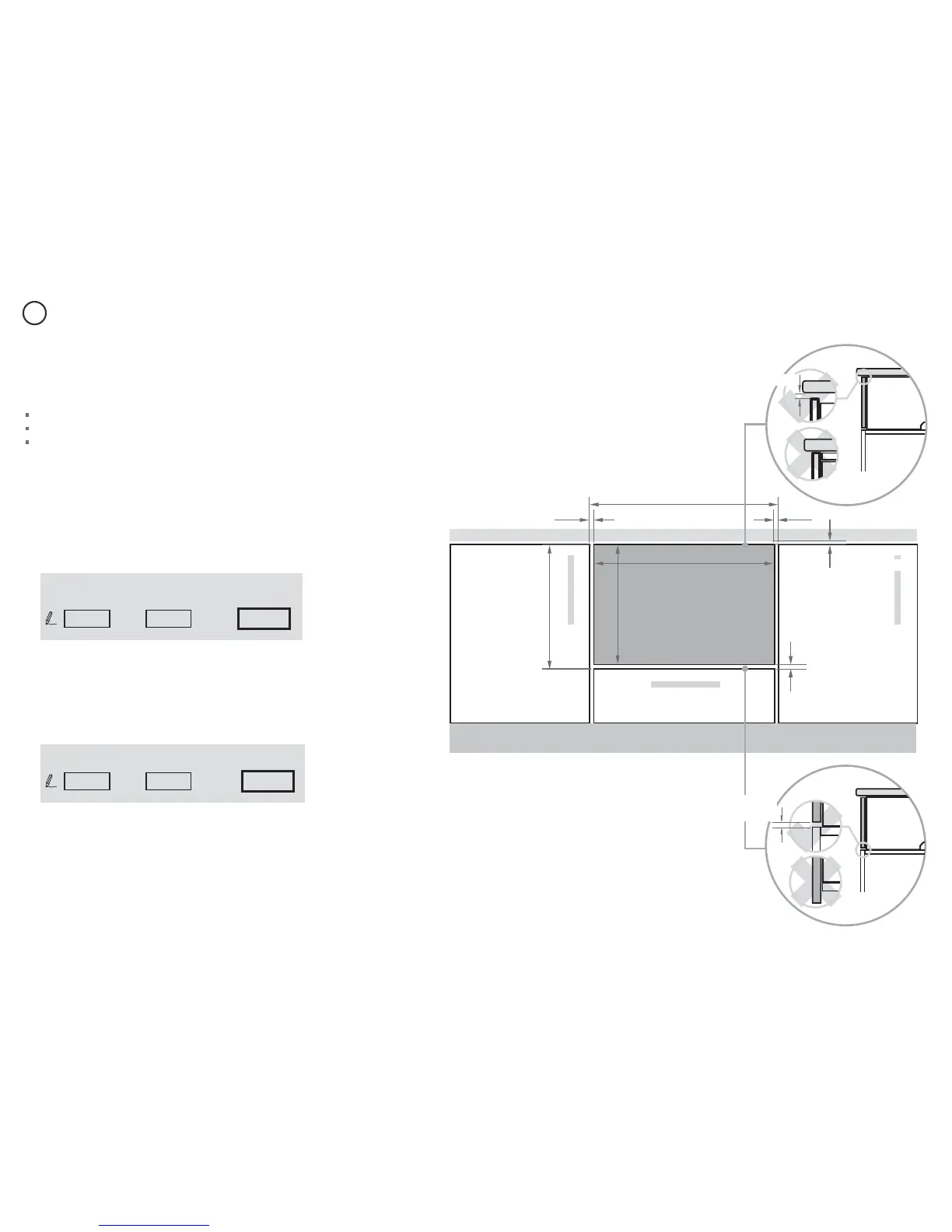

INTEGRATED MODELS ONLY - CUSTOM FRONT PANEL CALCULATIONS
6
Note: when the top of the dishwasher has to be lower than the adjacent cabinetry,
the panel can be increased in height.
min. ⁄”(2mm) min. ⁄”(2mm)
min. ⁄”(2mm)
min. ⁄”(2mm)
WIDTH OF PANEL
(min. 23 ⁄” (596 mm))
