14
RECOMMENDED METHOD (a) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY)
13a12a

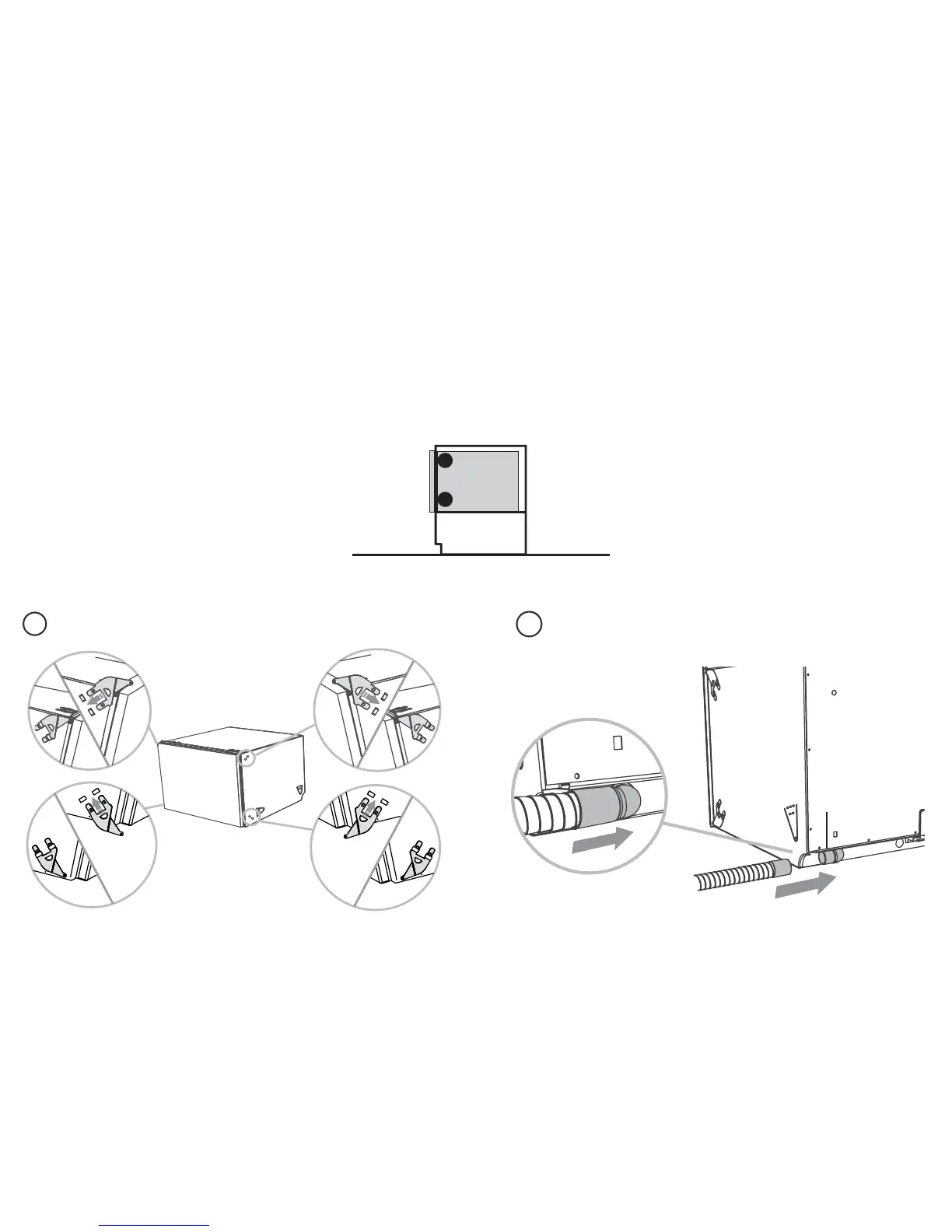

ATTACH SIDE MOUNTING BRACKETS
INTEGRATED ONLY - ATTACH VENTING HOSE
Fitted Elbow
Clip all four side mounting
brackets into their slots
using a flat-bladed
screwdriver. Ensure they’re
securely fitted before
sliding product into cavity.
The mounting slots are in pairs,
one on each side diagonally
across the product. A bracket
must match A slot and B
bracket must match B slot.
Check that the fitted elbow is rotated
left or right (depending on the direction
of the routing), then ensure the venting
hose is securely attached to it.
NOW CHOOSE WHICH INSTALLATION METHOD (a) or (b)
IS MORE SUITABLE FOR YOUR CABINETRY...
A
A
B
B
B
B
A
A
To Next Page
