4

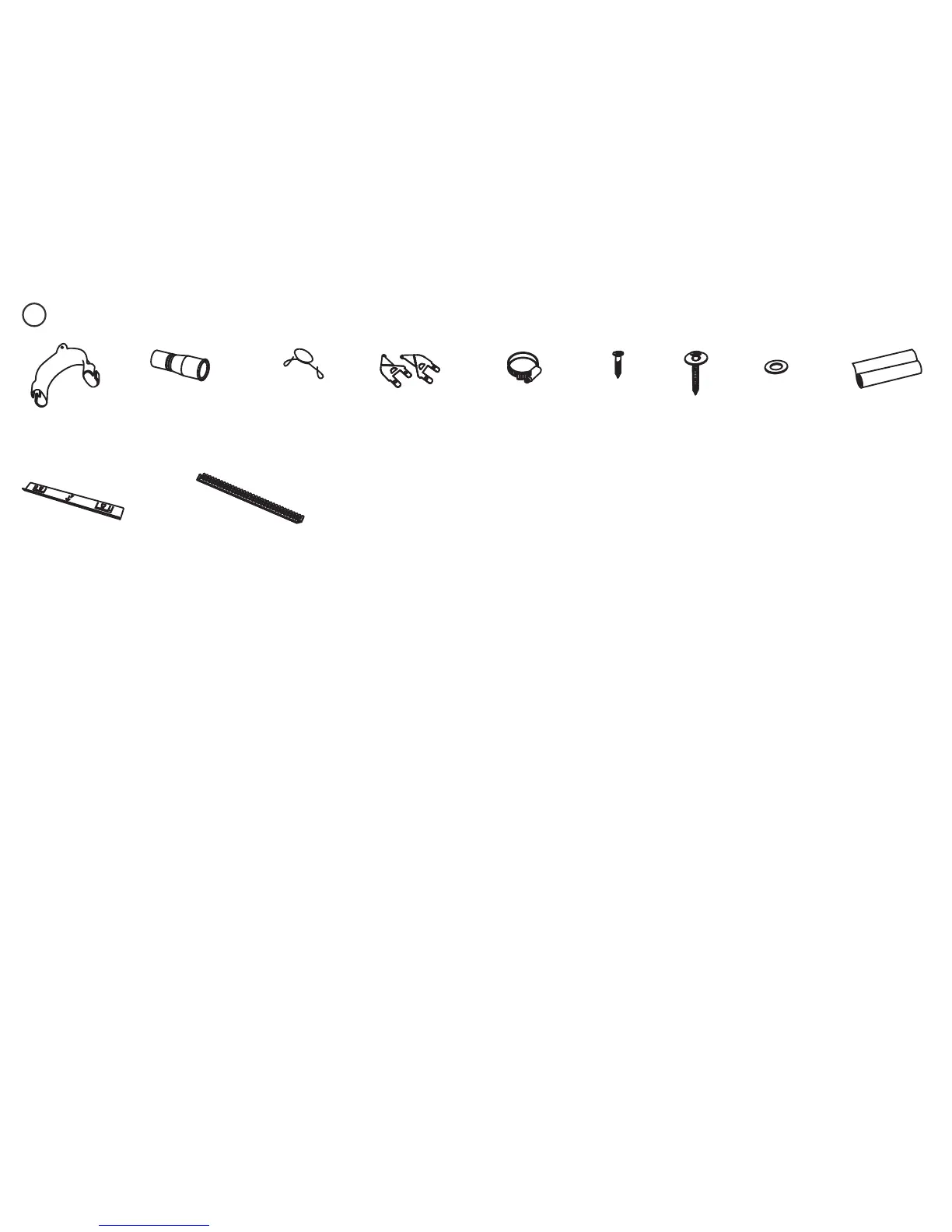

PARTS SUPPLIED - ALL MODELS
3a
Phillips
⁄” (16 mm)
screws (7)
1½ ” (38 mm)
bottom fixing
screws & metal
washers (2)
Drain hose
support (1)
Cavity bracket kit (1)
supplied with Tall height
Designer and
Integrated models only
Drain hose
joiner (1)
Side mounting
bracket kit
(A and B) (2)
OPTIONAL
If the Drain hose supplied is not long enough to reach your services, you must use a Drain Hose Extension Kit P/N 525798 which will extend the drain hoses by 11’ 10” (3.6m).
The kit is available from the nearest Fisher & Paykel Authorized Service Center, or Toll free 1.888.936.7872 or www.fisherpaykel.com
Edge Protector (1)
(If the services hole is through
a metal partition the hole
must be protected with the
Edge protector supplied to
prevent damage to the power
cord or hoses.)
Wire clip (1)
(for securing
Drain hose joiner)
Moisture protection
tape (1)
(to prevent moisture
damage)
Clamp (1)
(for securing
Drain hose joiner)
Rubber
washer for
inlet hose (1)
(comes already
fitted)
