Fisher & Paykel DD36SDFTX2 Installation Instructions

5
4

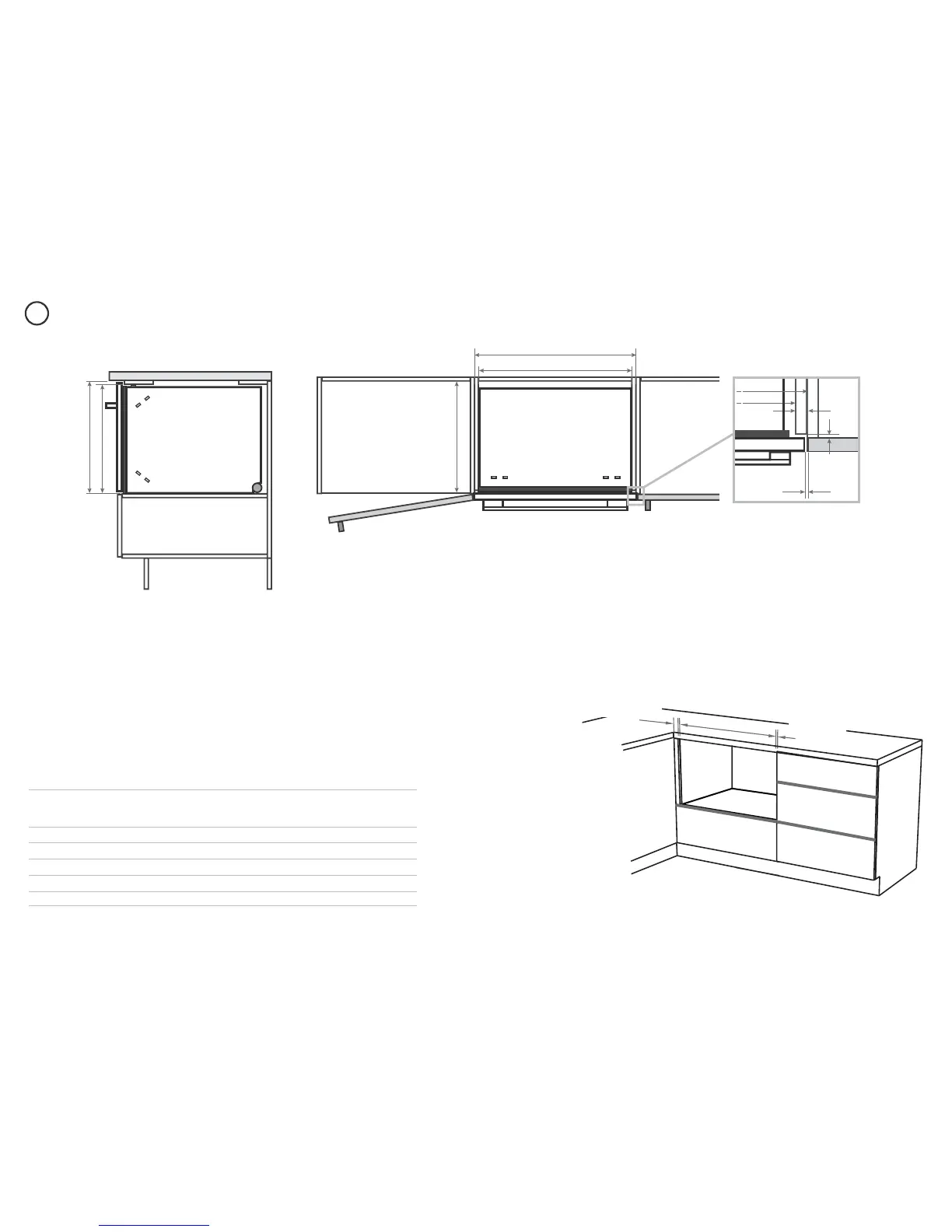

CABINETRY DIMENSIONS
Plan
Side
LM
P
N
O
⁄”
(18 mm)
⁄” (2 mm)
⁄” (2 mm)
N
O
Minimum clearances from adjacent cabinetry
Cabinetry dimensions inches (mm)
Designer
DD36SDFTX2
Integrated
DD36STI2
L
height of cavity
(from support surface to underside
of countertop)
18 ⁄”(480) 18 ⁄”(480)*
M
inside height of cavity 18 ⁄”(460) min. 18 ⁄”(460)
N
inside width of cavity 34”(864) 34”(864)
O
overall width of cabinetry 35 ⁄”(900) 35 ⁄”(900)
P
inside depth of cavity min. 22 ⁄”(560) min. 22 ⁄”(560)
* Recommended
min. ½ ” (13 mm)
clearance from a
corner cupboard
min. ⁄” (2 mm)
clearance
to adjacent
cupboard door
Important!
Ensure correct chassis position. In order
for product to function, cabinetry must
not block the drawer front from closing
hard against the chassis.
