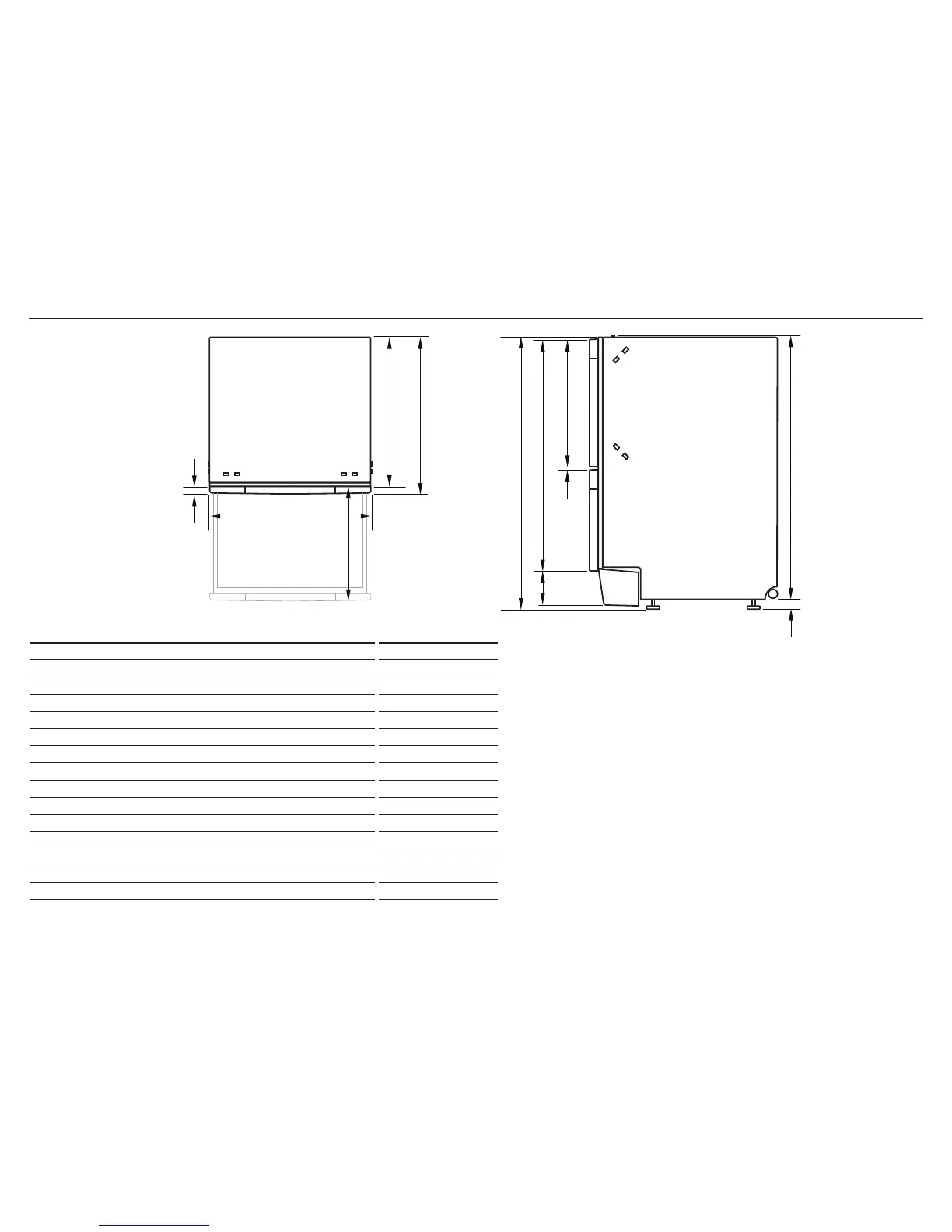

3 PRODUCT DIMENSIONS
TOP SIDE
PRODUCT DIMENSIONS mm
A
Overall height
1
of product 820-880
2
B
Overall width of product 599
C
Overall depth of product 582
D
Depth of chassis (to back of front panel) 553
E
Maximum extension of drawer 556
F
Depth of front panel 29
G
Height
1
of chassis 811
H
Height of levelling feet 9-69
2
I
Height of drawer fronts 711
J
Height of upper front panel 394
K
Ventilation gap between front panels 5
L
Height of toekick panel (adjustable) 70-115
1
includes 2mm high bracket slots
2
depending on adjustment of levelling feet
