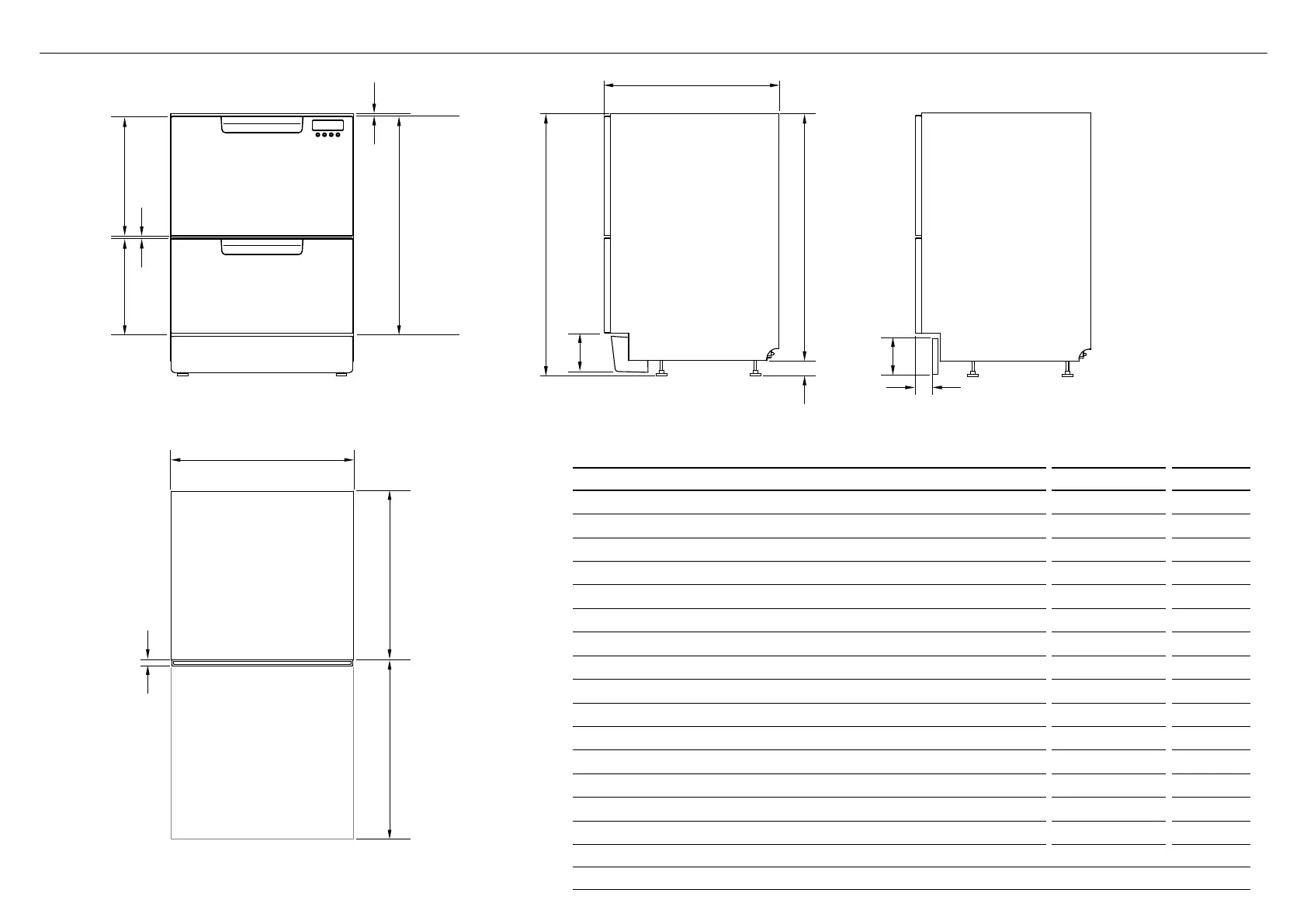

3 PRODUCT DIMENSIONS
N
F
C
L
M
A
G
B
E
D
O
I
H
J
K
L
PLAN
PROFILE PROFILE
DD60DC MODELSDD60DA MODELS
FRONT
DD60DA DD60DC
PRODUCT DIMENSIONS MM MM
A
Overall height of product
1
820-880
2
820-880
2
B
Overall width of product 599 599
C
Overall depth of product 573 573
D
Depth of chassis (to back of front drawer panel) 553 553
E
Depth of drawer front panel 20 20
F
Height of chassis
1
811 811
G
Height of drawer front panels 712 712
H
Height of upper drawer front panel 393 393
I
Height of lower drawer front panel 312 312
J
Height from top of drawer front panel to top of chassis 8 8
K
Ventilation gap between drawer front panels 7 7
L
Height of toekick (customisable) 70-120 72-127
M
Depth from front of drawer panel to front of toekick (adjustable)
3
NA 38-54
N
Height of levelling feet (adjustable) 9-69
2
9-69
2
O
Maximum extension of drawer 547 547
1
includes 2mm high bracket slots
2
depending on adjustment of levelling feet
3
adjustable to match toekick recess on adjoining cabinetry

Fisher & Paykel DD60DC Specifications
